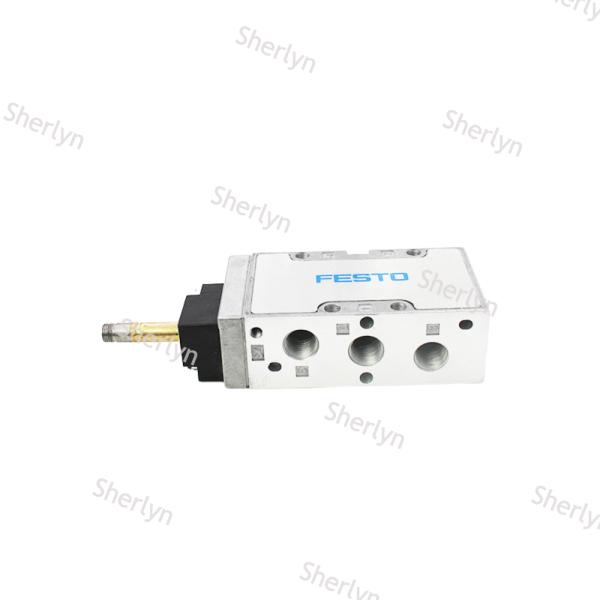

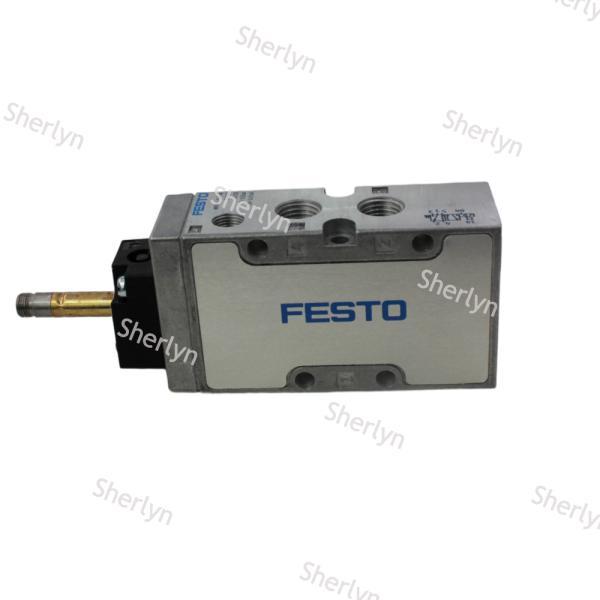

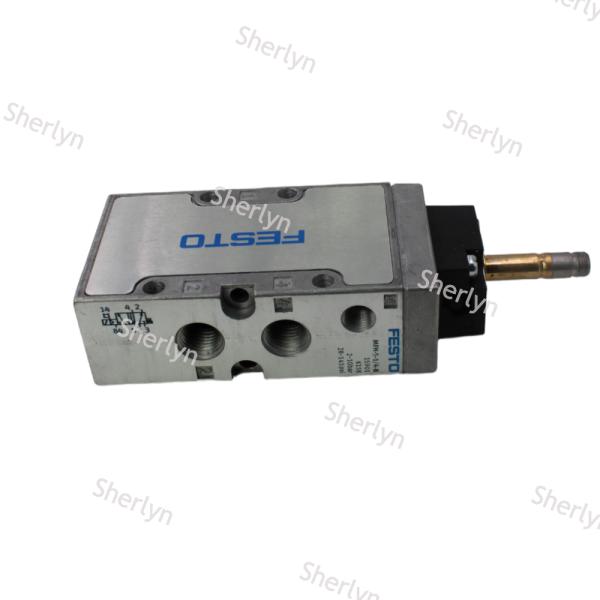

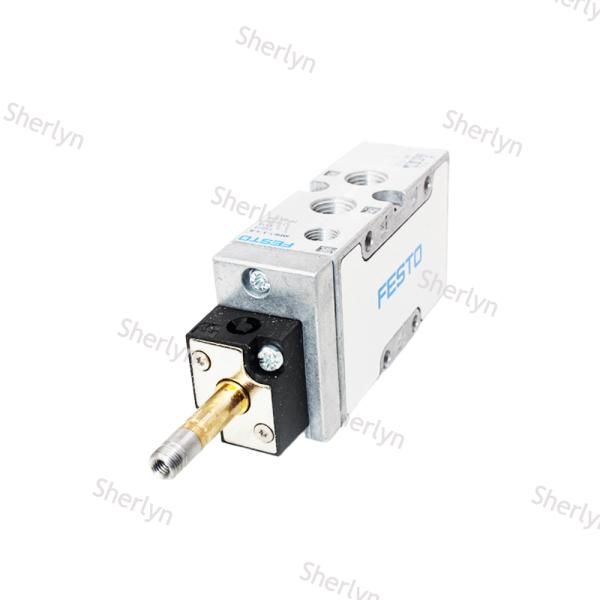

Product Description:

The core attributes of FESTO Tiger Valve MFH series are as follows:

Valve function: There are mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

Main parameters:

• Interface and flow rate: G1/8 (500 l/min), G1/4 (800 l/min or 1300-1600 l/min16), G1/2 (3700 l/min), G3/4 (7500 l/min).
• Work pressure: commonly 0-8 bar or 2-10 bar, some models (such as MFH-3- * - S) support -0.95 to 10 bar.
• Pilot mode: internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar).
• Design structure: Sturdy lifting valve seat (seat valve), sealing material is usually NBR, and the valve body is made of die-cast aluminum.
• Protection level: IP65.
• Response time: Fast, usually in milliseconds (e.g. switch time < 40ms).
• Temperature range: The medium temperature is usually -10°C to +60°C, and the ambient temperature is usually -5°C to +40°C.

Applications:

Automotive Manufacturing Industry: This industry involves the use of pneumatic device control in welding and final assembly production lines.

Packaging Machinery: In this sector, pneumatic control is essential for actions like material gripping, positioning, and filling.

Material Handling and Automated Assembly Line: In this field, pneumatic control is used to handle actuators such as cylinders and vacuum suction cups.

Other Industrial Fields: There are various other industrial sectors that demand high-quality pneumatic control for efficient operation.

• Valve function5/2, monostable
• Actuation typeElectrical
• Width32 mm
• Standard nominal flow rate1300 l/min
• Pneumatic working portG1/4
• Operating pressure0.2 MPa ... 1 MPa
• Operating pressure2 bar ... 10 bar
• Structural designPlate seat
• Reset methodMechanical spring
