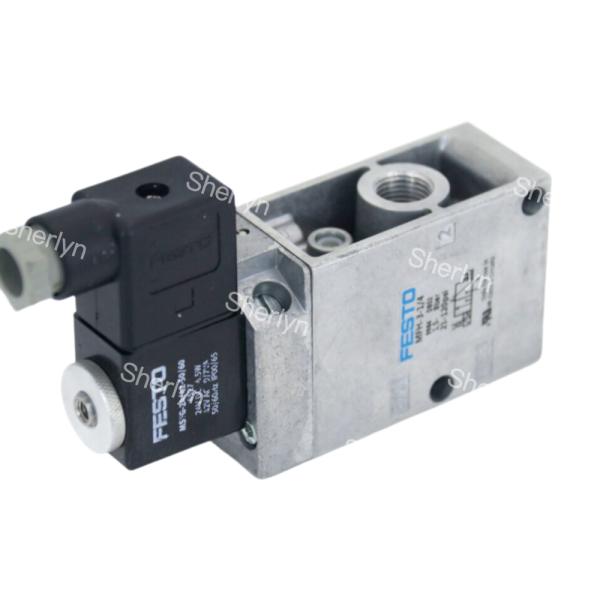

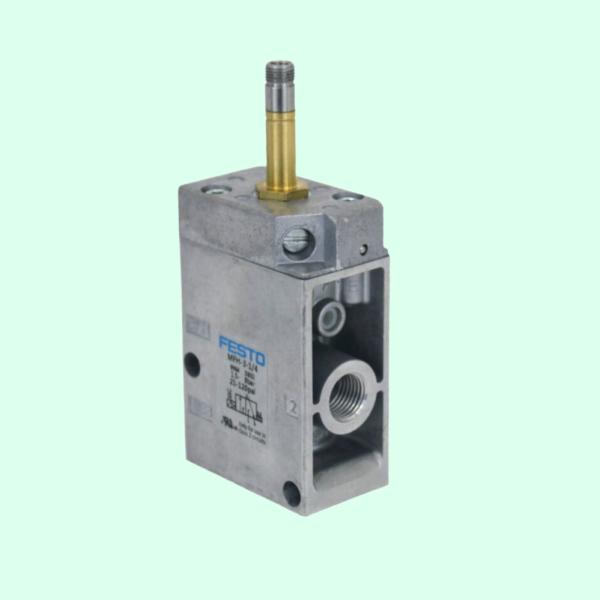

Product Description:

The core attributes of FESTO Tiger Valve MFH series are as follows:

Valve function:

There are mainly 3/2-way (normally closed, normally open, sometimes switchable) and 5/2-way (single electric control with mechanical spring reset, dual electric control).

Main parameters:

• Interface and flow rate:
  • G1/8 (500 l/min)
  • G1/4 (800 l/min or 1300-1600 l/min16)
  • G1/2 (3700 l/min)
  • G3/4 (7500 l/min)
• Work pressure:
  • Commonly 0-8 bar or 2-10 bar
  • Some models (such as MFH-3- * - S) support -0.95 to 10 bar
• Pilot mode:
  • Internal pilot or external pilot (model with suffix "- S", requires independent pilot pipeline, pressure range usually 0-8 bar)
• Design structure:
  • Sturdy lifting valve seat (seat valve)
  • Sealing material is usually NBR
  • The valve body is made of die-cast aluminum
• Protection level: IP65
• Response time: Fast, usually in milliseconds (e.g. switch time <40ms)
• Temperature range:
  • The medium temperature is usually -10 ° C to+60 ° C
  • The ambient temperature is usually -5 ° C to+40 ° C

Applications:

Automotive Manufacturing Industry: In the automotive manufacturing industry, pneumatic device control plays a crucial role in welding and final assembly production lines.

Packaging Machinery: It is responsible for controlling various actions like material gripping, positioning, and filling in the packaging machinery sector.

Material Handling and Automated Assembly Line: In this sector, pneumatic control is used to manage actuators like cylinders and vacuum suction cups to ensure efficient material handling and automated assembly processes.

Other Industrial Fields: There are several other industrial fields that demand high-quality pneumatic control for their operations to run smoothly and effectively.

• Valve function3/2, closed, monostable
• Actuation typeElectrical
• Width30.5 mm
• Standard nominal flow rate800 l/min
• Pneumatic working portG1/4
• Operating voltageVia solenoid coil, to be ordered separately
• Operating pressure0.15 MPa ... 0.8 MPa
• Operating pressure1.5 bar ... 8 bar
• Structural designPlate seat
• Reset methodMechanical spring

Support and Services:

Festo Solenoid Valve Product Technical Support and Services:

Our technical support team is dedicated to assisting you with any issues you may encounter while using our Festo Solenoid Valve product. From troubleshooting to providing guidance on product features and specifications, our experts are here to help.

In addition, we offer a range of services to ensure the optimal performance and longevity of your solenoid valve. This includes maintenance programs, repair services, and training opportunities to enhance your understanding of the product.

Packing and Shipping:

Product Name: Festo Solenoid Valve

Description: High-quality solenoid valve manufactured by Festo, known for its reliability and durability.

Package Contents: Solenoid valve, installation instructions, warranty card.

Packaging: The solenoid valve is securely packed in a cardboard box with foam padding to prevent damage during transit.

Shipping: We offer fast and reliable shipping options to ensure your Festo Solenoid Valve reaches you safely and on time.
