5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test
Specifications
Brand Name :
DAXIAN
Model Number :
DX8428
Certification :
IEC62730-2024、IECIEC62217-2012
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3 sets per month
Delivery Time :
20 work days
Packaging Details :
Wooden case
Machine name :
Insulators 5000hrs Multiple Stress Test Machine
Standard :
IEC62730-2024、IECIEC62217-2012
Test sample :
HV Polymeric Insulators
Material :
Printed
Weight :
2ton
Dimentions :
3.1* 3.2* 3.6m
Delivery time :
25 work days
Warranty :
24 months
Power :
45KW
Supply :
380V
Description

5000h Insulator Testing Machine

5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test

5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test

Remark :
The IEC 62730 standard is an international standard for multi stress aging testing of insulators used in photovoltaic (PV) systems, primarily evaluating the long-term durability of insulation materials in complex outdoor environments. The IEC 62730 Insulator Multi Stress Testing Machine is a testing device specifically designed to simulate the superposition of various environmental stresses and accelerate the aging of insulators.
Product name:
Technical Specifications for the 5000 - hour Multiple Stress Test Setup in accordance with IEC 62730:2024
IEC 62730:2024
In this document, the technical requirements of the 5000h multiple stress test bench are given according to IEC 62730:2024.
Test Procedur

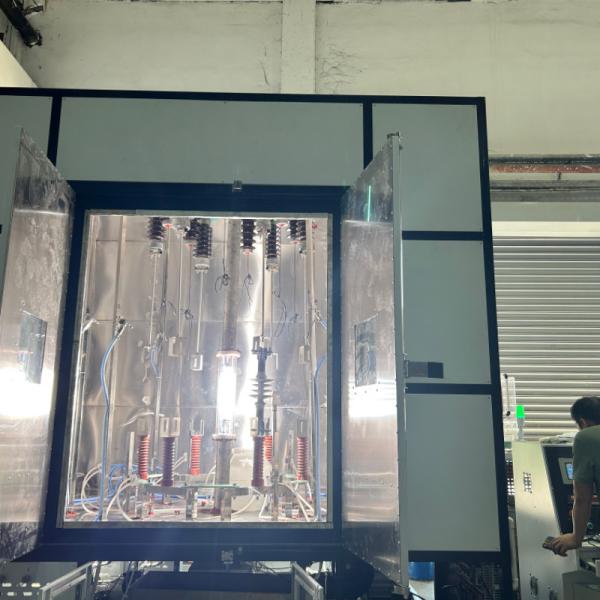

The test shall be carried out in a moisture sealed corrosion-proof chamber, the volume of which shall not exceed 20 m3.
Test Conditions
The cycle of stresses applied to the insulators and repeated for a period of 5 000 h is shown in Figure 3. The cycle is designed
so that the test specimens are also subjected to the effects of temperature variation and condensation .
Voltage
The power frequency test voltage in kilovolts is adjusted to the actual creepage distance of
the test specimens. it is determined by dividing the creepage distance in millimetres by 34,6
(equal to a specific creepage distance of 20 mm/kV, calculated as phase-to-phase value) .
Solar Simulation
The simulated solar irradiation is provided by a xenon arc lamp with a nominal output of 6500 W and equipped with 2 boron silicate
glass filters (see example in Figure 5) . The distance between the xenon lamp and test specimens is approximately 480 mm.

A new lamp and filters shall be used at the beginning of each test. The filters and , if necessary, the lamp shall be replaced
during the test according to the lamp manufacturer's recommendations .
Artificial Rain
The artificial rain shall be provided by nozzles mounted above the test specimens and outside their perimeter (see Figure 4 ). The
average precipitation rate shall be in accordance with IEC 60060-1 . Water of a minimum resistivity of 85 nm shall be used. Each
of the test specimens is sprayed individually.
Dry Heat
The chamber is heated up to 50 °C ± 2 °C; the time far the temperature to rise is 15 min as a maximum.

NOTE it is recommended to heat and insulate the walls of the chamber.
Humidity
Nominal relative humidity: RH = 95 % ± 3 % at 50 °C.

DX8428 Insulator Multi Stress Testing Machine.pdf






5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test

5000h Insulator Test Machine IEC 62730-2024 Salt Rain Test

Welcome to visit our factory for sightseeing!

Supplier Company Name Daxian Instrument Equipment CO.,Limited
Company Address Changlian Industrial Building, 168 Zhenan West Road, Xiabian Community, Chang'an Town, Dongguan, Guang Dong, China
Contact Person Sophia Su
Mobile Number 86-15024082385
Telephone Number 86-0769-82759287
Email daxian02@jiance17.cn
