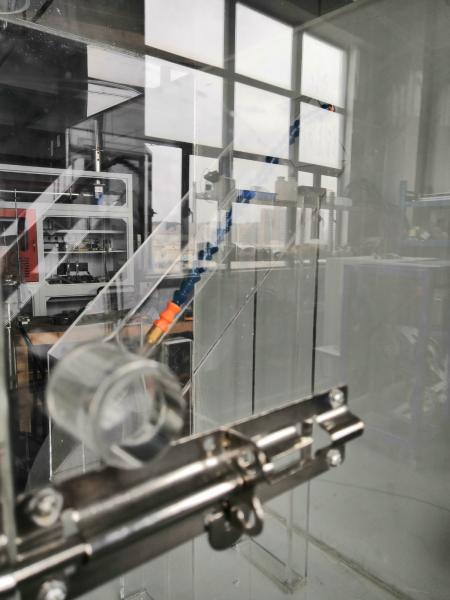

Electric Cables And Wires Tracking Resistance Testing Equipment Lab testing machine
Electric Cables And Wires Tracking Resistance Testing Equipment Lab testing machine
Electric Cables And Wires Tracking Resistance Testing Equipment Lab testing machine
Electric Cables And Wires Tracking Resistance Testing Equipment Lab testing machine
Specifications
Brand Name :
DAXIAN
Model Number :
DX8427B
Certification :
GB/T 3048.7—2008, GB14049-2008
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 days after order confirmed
Packaging Details :
Wooden case
Standards :
GB/T 3048.7—2008
Spraying speed :
(3±0.01) m/ s
Shape size :
1120mm × 650mm × 1350mm
Spray height :
600mm ±10mm adjustable;
Description

GB/T 3048.7—2008 Electric Cables and Wires Tracking Resistance Testing Equipment

Scope:

Test the ability of wires and cables to withstand damage caused by electrical traces caused by surface leakage in filthy conditions.

Standard :

Testing apparatus for GB/T 3048.7—2008,GB14049-2008.

Specification:

Test sprinkler:

- three positions, independent stainless steel nozzle, nozzle hole: 16, aperture: 0.5mm;

Test liquid:

- 1L sodium chloride water (about 0.2%) Surfactant 0.1% Para-octyl phenyl polyoxylene (distribution of a bottle)

liquid conductivity:

- (3000-400) uS/ cm, Conductivity meter for customer's own use, conductivity meter measurement

Spray pressure:

- vacuum pump pressure control, constant pressure adjustable;

Spray stroke:

- ≥ 1m;

Spray height:

- 600mm ±10mm adjustable;

Spraying speed:

- (3±0.01) m/ s;

Spray flow rate:

- (0.5±0.1) mm/ min. within 2 seconds

Spray cycle:

- 30 seconds; spray 10s; intermittent 20s

Sample base height:

- 100 mm±5 mm; angle: 45

Observation window:

- explosion-proof toughened glass, size:580 mm * 380 mm

Test exhaust:

- equipped with automatic exhaust system, wind speed: 0.2m / s

Shape size:

- 1120mm × 650mm × 1350mm

Test power supply:

- 220V / 50-60Hz

Applied voltage:

- power frequency test high voltage 0 ~ 5kV ±5% (continuously adjustable);

Voltage and current measuring instruments:

- accuracy≥1.0;Measured value error≤±3%;
