Specifications
Brand Name :
DAXIAN
Model Number :
DX8371
Certification :
BS 476-4, EN IS01182, ASTM E136[3]
Place of Origin :
China
MOQ :
one set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
15 sets per month
Delivery Time :
10work days
Packaging Details :
Wooden case
Product name :
ISO 1182 Non Combustibility Building Material Fire Test Machine
Usage :
Building Material Fire Testing Machine
Standard :
BS 476-4, EN IS01182, ASTM E136[3]
Heating Power :
800 ~ 1000W
Power Supply :
220V/50HZ
Warranty :
12 months
Description

BS 476-4 Micro Computer Non-Combustibility for Material

Application:
When a certain amount of gas is supplied to the box and the standard ignition source is used to ignite the flame, this instrument can be used to test the ability of the vertical flame propagation to be restrained under the standard conditions of the vertically installed bundles of wire, cable or optical fiber cable.

Standards:
- BS 476-4
- EN IS0 1182
- ASTM E136[3]

Parameters:

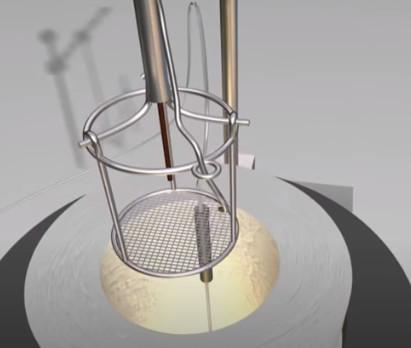

The test equipment includes heating furnace, sample holder, air flow hood, thermocouple, power stabilizer, voltage regulator, intelligent temperature control device, computer (temperature curve can be recorded and all test data can be recorded)

Draught shield Φ75mm×50mm
Specimen holder mass 15±2 g
Voltage stabilizer 1.5KVA,accuracy of output voltage within ±1%
Variable transformer 0~100V
Thermometer 0~1000±5%
Environment temperature 25ºC~35ºC
Timer 0~99h
Power AC220V ± 10%, 50Hz, current ≤10A
Furnace temperature 750±5ºC
Furnace temperature drift <2ºC/10min
Heating power 800-1000W, maximum power:1.5KW
The bulk density of the Magnesium Oxide Powder (170±30)kg/m³

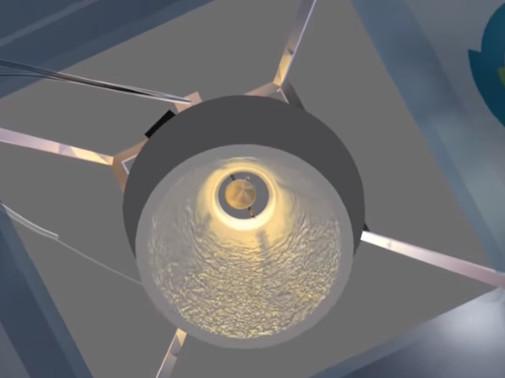

Furnace
-Φ95mm×Φ75mm×Φ150mm,80/20 nickel/chromium electrical resistance tape 3mm wide and 0.2mm thick.
Thermocouple
-insulated nickel-chromium - nickel - aluminum armored Φ1.5 mm
-We can provide two free thermocouples, you can also purchase extra spare parts if you need them later.
Mirror
- equipped with mirror to see the interal of the furnace
- a mirror 300mm square, at an angle of 30° to the horizontal
