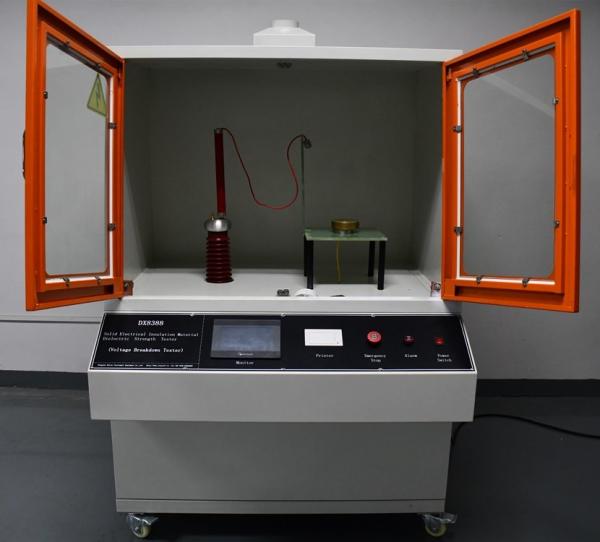

IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
Specifications
Brand Name :
DAXIAN
Model Number :
DX8388
Certification :
IEC 60243、ASTM D149
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash
Supply Ability :
30 sets per month
Delivery Time :
30 days after order confirmed
Packaging Details :
Wooden case
Breakdown voltage :
0~50kV
Applicable :
Insulating materials
Booting speed :
100,200,500,1000,2000,5000（KV/S）
Accuracy :
≤ 2％
Dimension :
L1400* W1040* H1500 mm
Methods of test :
DC & AC
Transformer capacity :
10 KVA
Weight :
200kg
Description

IEC 60243-1 Dielectric Strength Of Solid Electrical Insulating Materials Test Equipment

lab testing machine Application:

Apply to continuous uniform boosting or step by step boosting way, step by step toward a sample breakdown, ac/dc voltage until the breakdown voltage measurement, calculation of the sample breakdown strength.

lab testing machine Definitions:

Breakdown Voltage: Sample under a certain voltage is punctured, at this time of voltage named breakdown voltage, expressed as a kV.

Voltage Resistance Value: Quickly to keep the voltage to the specified value, sample time is not breakdown, according to the voltage value of withstanding voltage value of the sample, expressed as a kV.

Breakdown Strength: The ratio of the sample breakdown voltage and its thickness named breakdown strength, expressed a KV/mm.

IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine

Specifications:

Breakdown voltage 0~50kV
Booting speed 100,200,500,1000,2000,5000(KV/S)
Booting speed control Electrical automatic control
Voltage measurement accuracy ≤ 2％
The leakage current selection 1~100 mA
Methods of test DC & AC
Methods of booting Automatic program-controlled
Power Frequency sine wave 50Hz/60HZ
Supply power AC220V 50/60Hz
Dimension L 1400* W 1040* H 1500 mm
Weight 200kg
Transformer capacity 10 KVA
AC 0~50 KV (continuously adjustable)

Note:
After each test is completed, the sample must be fully discharged in advance before taking out the sample. When discharging, the contact residence time at each discharge point exceeds 2 seconds.

IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine



IEC 60243-1 Insulating Material Testing Machine 0~50kV Breakdown Voltage Lab Testing Machine
