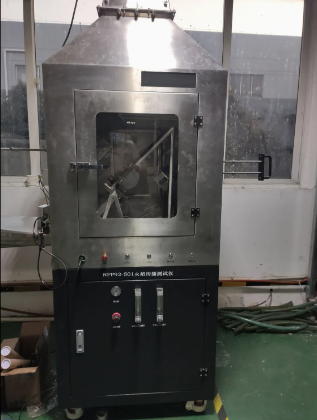

The NF P92-501 Thermal Radiation Dripping Flame Propagation Test Machine is designed to evaluate the performance of rigid and flexible materials with a thickness exceeding 5 mm, in accordance with the French standard NF P92-501 for fire-retardant testing of building materials and railway rolling stock.

The test principle involves subjecting the specimen to thermal radiation at an intensity of 30 kW/m², which may cause the release of combustible gases and trigger their ignition. The spread of the flame is observed, and data regarding the material's combustion are collected to estimate heat release. This equipment is suitable for conducting radiation-based fire resistance tests on materials used in railway rolling stock.

NF P92-501
TB/T 2639.1

• Stainless steel test chamber with fire-resistant interior walls and a transparent observation window
• Stainless steel tubular air inlet equipped with a filter to shield the interior from external contaminants
• 45-degree test specimen holder equipped with a stainless steel scale for measuring flame spread distance

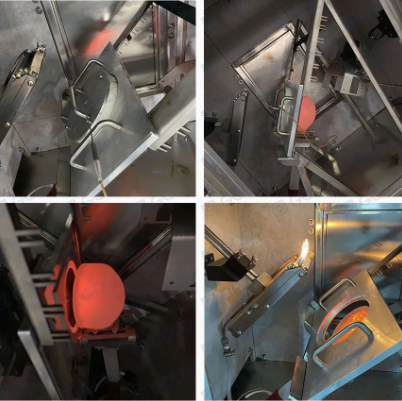

• Thermal radiation unit capable of providing a heat flux of 30 kW/m²
• Power controller to regulate radiation output and adjust the heat flux of the radiation unit
• Panel display showing the operating power of the radiation unit, eliminating the need for frequent calibration procedures
• Upper and lower stainless steel burners to ignite evolved combustible gases

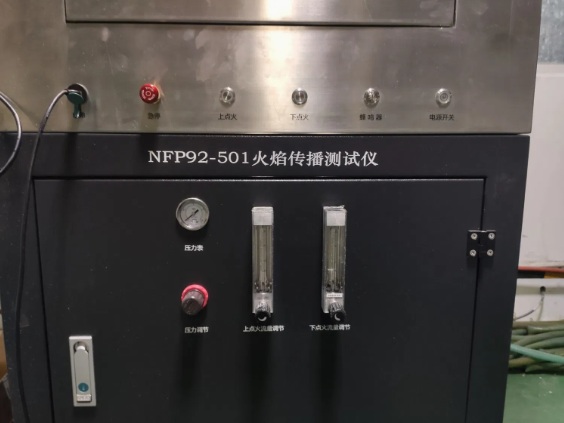

• Needle valves to control the flame height of the upper and lower burners; includes a flame height gauge
• Pilot flame device for convenient ignition of the upper and lower burners prior to testing
• Quarter-turn valve mechanism for easy shut-off of gas supply to the burners and pilot flame
• Thermocouples at the top and air inlet to monitor temperature and display real-time temperature difference status
• Standard testing software capable of automatically calculating indices such as the flame generation index and combustion heat release index
• Built-in test reporting function with data export/print capabilities and a user-friendly interface
• Test data includes: Flame generation index (i), average flame height index (S), maximum flame index (h), and combustion heat release index (C)
