NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
Specifications
Standard :
NF P92-501
Model Number :
GD-NFP92-501
Pressure Range Of Gas Regulating Valve :
<0.1 MPa
MOQ :
1set
Delivery Time :
30days
Packaging Details :
Standard Wooden Case
Control :
1900mm (W) X2100mm X (H) X 460mm (D)
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram
Name :
Thermal Radiation Dripping Flame Propagation Test Machine
Brand Name :
GOLD
Thermal radiation flux :
30KW/m2
Place of Origin :
China
Dimension :
1900mm (W) X2100mm X (H) X 460mm (D)
Price :
USD8000-9000/set
Wattmeter accuracy :
Class 0.5
Supply Ability :
5sets/Month
Power :
220V,50Hz,550W
Certification :
ISO
Description

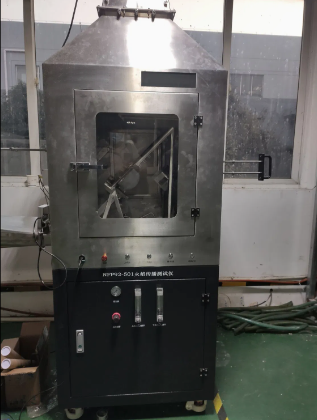

NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
The thermal radiation flame spread tester is designed to evaluate the performance of rigid and flexible materials with a thickness exceeding 5 mm, in accordance with the French standard NF P92-501 for fire-retardant testing of building materials and railway rolling stock. The test principle involves subjecting the specimen to thermal radiation at an intensity of 30 kW/m², which may cause the release of combustible gases and trigger their ignition; the spread of the flame is observed, and data regarding the material's combustion are collected to estimate heat release. This equipment is suitable for conducting radiation-based fire resistance tests on materials used in railway rolling stock.
Applicable Standards
NF P92-501
Technical Specifications
Size Width: 1900mm (74.8 inches) * Depth: 460mm (18.1 inches) * Height: 2100mm (82.6 inches)
Radiators rated power 500W
The power meter accuracy 0.5
The gas regulator valve pressure range <0.1MPa
Power 220V, 50Hz, 500W
Shipping Weight 208Kg (Host: 158Kg; Tables: 50Kg)
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
Key Features

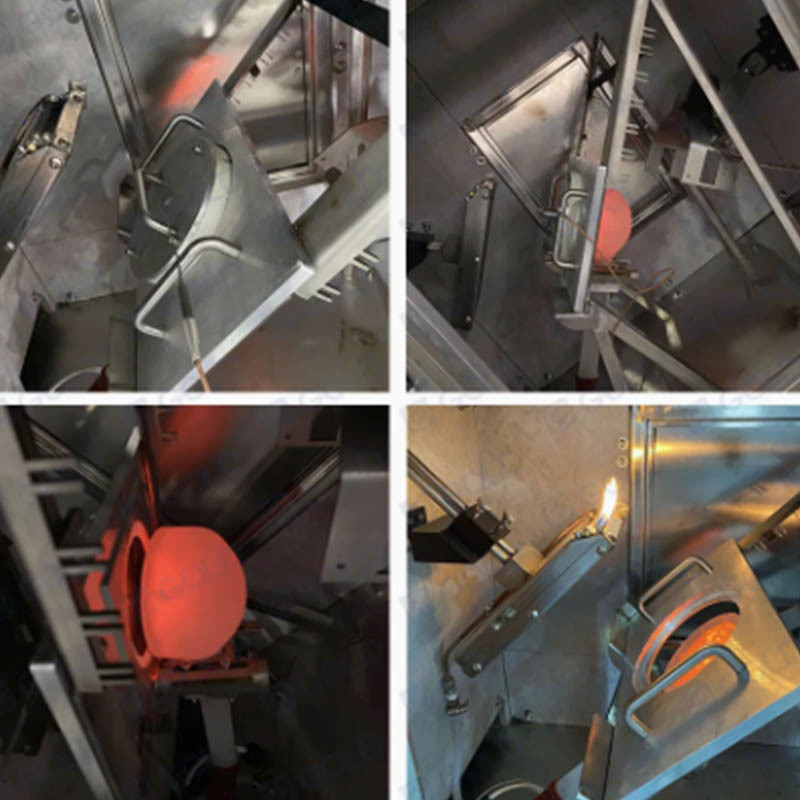

  • Stainless steel test cabinet, the inner wall is flame resistant material with transparent viewing window
  • Stainless steel tubular inlet device, equipped with filtration devices shield for indoor sources
  • 45° of the test stand, equipped with stainless steel foot instructions to calculate the distance of flame spread
  • Heat radiation device can provide 30KW/m² heat flux
  • The power controller controlling the radiation output, adjustable heat radiation
  • The heat radiating panel display device operating power value, eliminating frequent calibration procedure
  • The stainless steel burner can ignite the combustible gas automatically

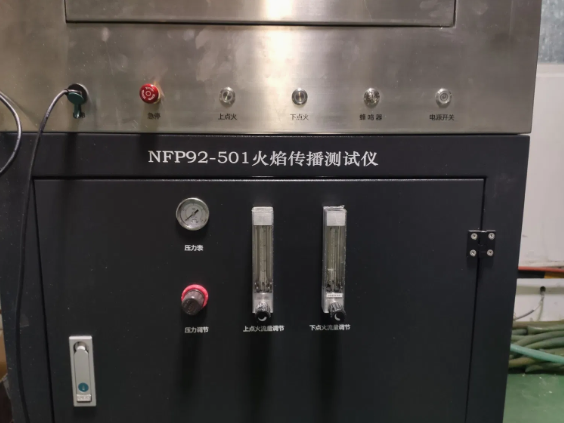

  • The imported needle valve can control the upper and lower burner flame height, with a flame height measuring
  • Lasting small flame device is be ignated before the test to convenient upper and lower ignition burners
  • One-quarter rotation stopper device to facilitate cutting the gas burner and ignite the flame
  • The top and the air inlet temperature thermocouple monitoring, real-time status display temperature difference value
  • The test software can automatically analysis index of flame and burning heat index
  • Test reports and data can be exported and printed, system has friendly user interface
  • The test data as follows: raw flame index: i-flame average height index: S- longest flame index: h-combustion heat index: C
NF P92-501 Thermal Radiation Flame Dripping Propagation Tester
Frequently Asked Questions
  • What's the delivery time?
    About 1~2 months.
  • What's your guarantee terms?
    The warranty of all products is 1 year. And we can supply life-long technical support.
  • Can you supply training?
    We can supply training in our factory and online training for free. If onsite installation and training are required, please pay for tickets, accommodation and salary.
