600W LED Explosion Proof Flood Light 90° Wall Mount Exterior Perimeter ATEX IIB T6 RFEPL8280 Lighting
600W LED Explosion Proof Flood Light 90° Wall Mount Exterior Perimeter ATEX IIB T6 RFEPL8280 Lighting
Specifications
Light Efficiency :
100-120lm/W
Model Number :
RFEPL8280-600W-WL
Price :
Negotiable
Explosion-Proof Mark :
Ex db mb IIB T6 - IP65 - WF2
Input Voltage :
AC 100-277V
Material :
Aluminum + Tempered Glass
Power Factor :
≥0.95
Lightning Protection :
6KV
CRI :
≥80
Certification :
ATEX Ex db mb IIB T6, CE, ROHS, CCC, ISO 9001:2015
Salt Spray Test :
500 Hours (Stainless Steel)
Brand Name :
ECER
IP Rating :
IP65
Lifetime :
50,000 Hours
Delivery Time :
10-15 days or confirm
Operating Temperature :
-40°C to +60°C
Packaging Details :
Box package+ bubble or as customized
Beam Angle :
90°
MOQ :
10 pcs
LED Chip :
LUMILEDS SMD (LM-80)
Supply Ability :
5000pcs/month
Place of Origin :
Guangdong, China
Payment Terms :
T/T,Western Union
Power :
600W
Description
600W LED Explosion Proof Flood Light 90° Wall Mount
ATEX IIB T6 RFEPL8280 Series - Exterior Perimeter Lighting
The RFEPL8280-600W-WL is a 600W LED explosion proof flood light from the RFEPL8280 series, featuring wide 90° beam with wall mount configuration. Utilizing LUMILEDS SMD chip technology, it delivers 100-120lm/W efficiency with ATEX Ex db mb IIB T6 certification, IP65 WF2 protection, 6KV lightning protection, and stainless steel hardware passing 500-hour salt spray testing.
Key Features
  • LUMILEDS SMD Chip Technology - Premium LM-80 tested LED chips delivering 100-120lm/W with CRI ≥80 for accurate color rendering
  • ATEX IIB T6 Certified - Ex db mb IIB T6 explosion-proof rating for IIA, IIB, IIC explosive atmospheres, temperature classes T1-T6
  • 90° Beam Configuration - Wide beam optimized for perimeter and wall-mounted applications
  • 180° Adjustable Mounting Bracket - Flexible angle adjustment for precise light positioning
  • Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring reliable 600W continuous operation
  • 6KV Lightning Protection - Built-in surge protection for outdoor installations

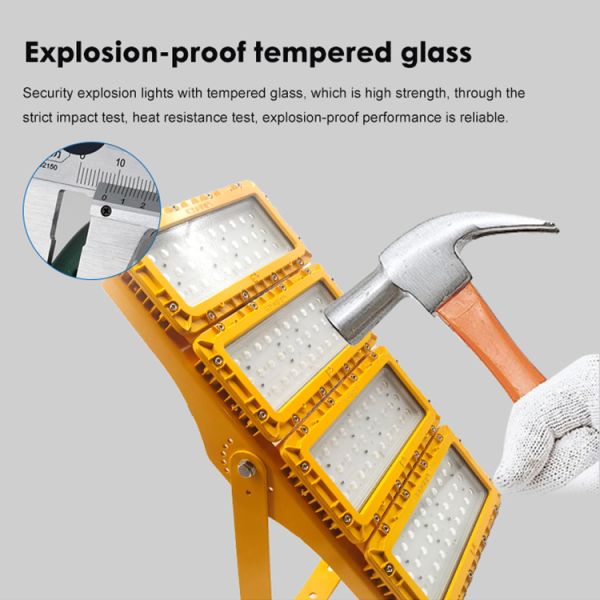

  • High Transmittance Tempered Glass - Safety glass lens with ≥92% light transmission and impact resistance
  • All Stainless Steel Hardware - 500-hour salt spray certified fittings for corrosion resistance
  • Wall-Mount Configuration - Purpose-designed for building exteriors and perimeter structures
  • IP65 Waterproof WF2 - Fully sealed against dust, water jets, and corrosive environments
  • Universal AC 100-277V Input - Power factor ≥0.95, compatible with global electrical systems
6-in-1 Versatile Mounting
Ceiling Mount
Boom Mount
Bracket Mount
Wall Mount
Flange Mount
Guardrail Mount
Applications
Engineered for building exterior walls, storage facility perimeters, and industrial boundary lighting in classified zones:
Oil extraction, refining and petrochemical processing
Offshore platforms, FPSOs and drilling rigs
Chemical storage, mixing and processing facilities
Electric power generation and distribution stations
Military and defense hazardous installations
Combustible dust environments (Zone 21, Zone 22)
Emergency and normal lighting in classified areas
Technical Specifications
Model NumberRFEPL8280-600W-WL
Item No.RFEPL8280
Power600W
Light Efficiency100-120lm/W
LED ChipLUMILEDS SMD (LM-80)
Beam Angle90°
CRI≥80
Power Factor≥0.95
Explosion-Proof MarkEx db mb IIB T6 - IP65 - WF2
Lightning Protection6KV
MaterialAluminum + Tempered Glass
IP RatingIP65
FinishPainting Yellow / Grey
MountingCeiling / Boom / Bracket / Wall / Flange / Guardrail
CertificationATEX, CE, ROHS, CCC
Lifetime50,000 Hours
Operating Temperature-40°C to +60°C
The RFEPL8280 series combines ATEX-certified safety with LUMILEDS LED efficiency. Each unit is factory-tested for explosion-proof integrity, photometric performance, and 500-hour salt spray corrosion resistance. With six mounting configurations and multiple beam angle options, the RFEPL8280 platform adapts to the full spectrum of hazardous area lighting requirements.
For bulk pricing, OEM customization, or technical consultation, please contact our sales team.
