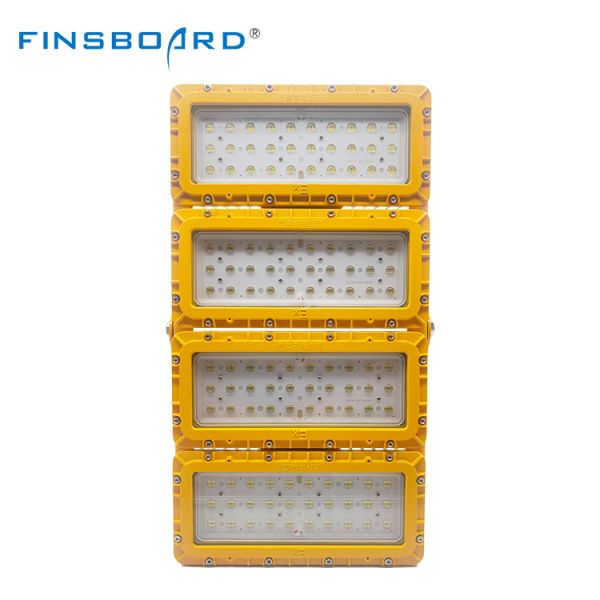

600W LED Explosion Proof Flood Light 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66 Die-Cast Aluminum ADC12
600W LED Explosion Proof Flood Light 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66 Die-Cast Aluminum ADC12
Specifications
Luminous Flux :
72000lm
Place of Origin :
Guangdong, China
Color Temperature :
5000K
Operating Temperature :
-40°C to +55°C
Payment Terms :
T/T,Western Union
Housing Material :
Die-Cast Aluminum ADC12 with Marine-Grade Coating
Lifespan :
≥50,000 Hours L70
Certification :
IECEx Ex d IIC T6 Gb, ISO 9001:2015
Delivery Time :
10-15 days or confirm
IP Rating :
IP66
Warranty :
5 Years
Model Number :
EPFL-600W-HLD
LED Chip :
Bridgelux SMD 3030
Supply Ability :
5000pcs/month
Efficacy :
120lm/W
Brand Name :
ECER
Packaging Details :
Box package+ bubble or as customized
Beam Angle :
15°
MOQ :
10 pcs
Price :
Negotiable
Power :
600W
Description
600W LED Explosion Proof Flood Light - 15° Ultra-Narrow Helideck Helicopter CAP 437 IECEx IP66
The EPFL-600W-HLD is a 600W LED explosion proof flood light delivering 72000lm luminous flux with 120lm/W efficiency. IECEx Ex d IIC T6 Gb certified with IP66 protection, this purpose-engineered floodlight features Die-Cast Aluminum ADC12 with Marine-Grade Coating for demanding classified area applications.
Key Features
  • 600W High-Efficiency Output - 72000lm total luminous flux at 120lm/W, replacing traditional HID fixtures with superior energy performance
  • IECEx Ex d IIC T6 Gb Certified - Full explosion-proof certification for Zone 1/Zone 2 gas and Zone 21/Zone 22 dust hazardous atmospheres
  • Helideck-Certified 15° Beam - Ultra-narrow beam engineered for offshore helideck perimeter illumination, compliant with CAP 437 and ICAO Annex 14 heliport lighting requirements
  • IP66 Protection - Fully sealed against environmental ingress for reliable outdoor and industrial operation
  • High Transmittance Tempered Glass - Safety glass lens with excellent light transmission and impact resistance
  • Die-Cast Fin Heat Dissipation - Advanced thermal management ensuring consistent 600W performance and extended LED lifespan
  • 180° Adjustable Bracket - Flexible angle adjustment for precise positioning in any installation scenario
  • Universal Voltage Input - Compatible with global power distribution systems for simplified international deployment
  • 5-Year Warranty - Backed by ≥50,000 hours L70 rated lifespan and factory quality testing
Applications
Engineered for Offshore helicopter decks, helideck perimeter lighting, FPSO helicopter landing areas compliant with CAP 437:
  • Oil and gas exploration, production and refining facilities
  • Petrochemical processing and chemical manufacturing plants
  • Offshore platforms, FPSOs and marine terminals
  • Pharmaceutical and food processing classified zones
  • Mining, tunneling and underground hazardous spaces
  • Emergency and safety-critical lighting applications
Technical Specifications
Model Number EPFL-600W-HLD
Power Consumption 600W
Luminous Flux 72000lm
Efficacy 120lm/W
Beam Angle 15°
Color Temperature 5000K
LED Chip Bridgelux SMD 3030
IP Rating IP66
Housing Material Die-Cast Aluminum ADC12 with Marine-Grade Coating
Operating Temperature -40°C to +55°C
Certification IECEx Ex d IIC T6 Gb
Lifespan ≥50,000 Hours L70
Warranty 5 Years
Each unit undergoes 100% factory testing of the explosion-proof enclosure integrity and photometric performance verification. Our 5-year warranty reflects confidence in the long-term reliability of the EPFL-600W-HLD design.
For bulk orders, OEM customization, or technical inquiries, please contact our sales team.
