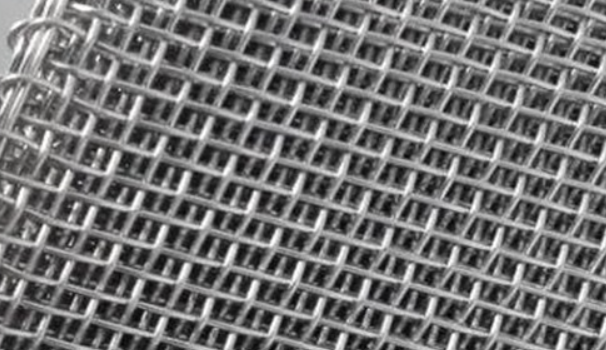

Ultra Thin 0.05mm Woven Mesh Screen
Ultra Thin 0.05mm Woven Mesh Screen
Ultra Thin 0.05mm Woven Mesh Screen
Ultra Thin 0.05mm Woven Mesh Screen
Specifications
Brand Name :
JUN HENG
Place of Origin :
Hebei, China
MOQ :
1000 square meters
Price :
1.8-3.2USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 square meters per month
Delivery Time :
10days
Packaging Details :
Non-pesticide-treated pallets
product :
Woven Mesh Screen
keywords :
Woven Mesh Screen
Wire diameter :
0.18mm-0.8mm
Aperture :
1.2mm-10mm
brand :
JUN HONG
Material :
316L Stainless steel
Description

Ultra-thin 0.05mm wire woven screen electronics dust filtering precise

Woven Mesh Screen Product overview

Engineered for mission-critical electronics, this nano-scale dust screen features precision plain weave with 316L ultrafine wires (Ø0.05±0.002mm). Uniform pore distribution (≤3% variation) and 32Pa/cm² airflow resistance comply with ISO 16890 ePM1 standards.

Woven Mesh Screen Product features

  • Sub-Micron Capture:Blocks 0.5µm particles at ≥99.2% efficiency (0.8m/s), stops PCB dust/toner

  • Ultra-low airflow resistance:Opening rate ≥56% + composite laminar flow design, pressure drop is less than 80% of glass fiber filter

  • Zero Shedding:Laser-welded joints + electropolished, <5pcs/m³ metal release

  • Millimeter Thin:0.12mm total thickness (with frame), fits ≤1mm device gaps

Woven Mesh Screen Application scenarios

  • Data Centers: HDD dust covers, GPU heatsink pre-filters
  • Industrial electrical appliances: inverter IGBT protection, laser cutting machine optical lens anti-fouling
  • Microelectronics: SMT carrier tape, wafer handling EFEM
  • Medical Devices: Endoscope CCD shields, hematology analyzer filters

Woven Mesh Screen Detailed specifications

Wire diameter Woven Wire: 0.05±0.002mm
Aperture Standard pore size Std: 80µm/100µm/120µm
Compressive strength ≥1.2MPa
Filtration efficiency ePM₁₀=99.7% / ePM₂.₅=99.3% / ePM₁=97.8%
Applicable temperature -196°C~350°C
surface resistance 10³-10⁶ Ω/sq

Woven Mesh Screen product details

Ultra Thin 0.05mm Woven Mesh Screen
