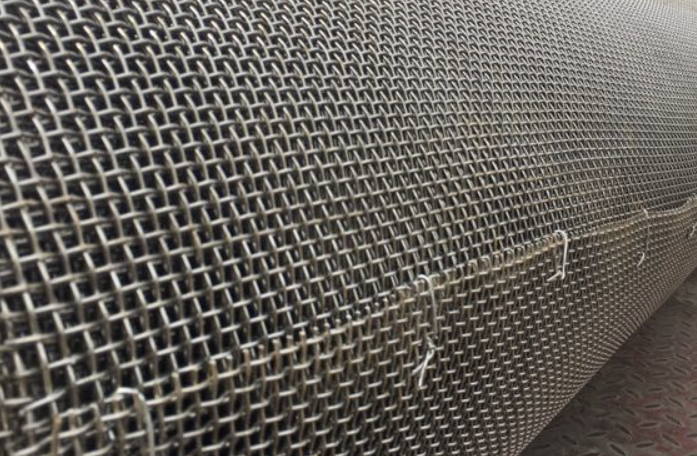

Reinforced Edge Binding Stainless Steel Woven Screen Q195 Q235 Quarry Trommel System
Reinforced Edge Binding Stainless Steel Woven Screen Q195 Q235 Quarry Trommel System
Reinforced Edge Binding Stainless Steel Woven Screen Q195 Q235 Quarry Trommel System
Reinforced Edge Binding Stainless Steel Woven Screen Q195 Q235 Quarry Trommel System
Specifications
Brand Name :
JUN HENG
Place of Origin :
Hebei, China
MOQ :
1000 square meters
Price :
1.8-3.2USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 square meters per month
Delivery Time :
10days
Packaging Details :
Non-pesticide-treated pallets
product name :
Woven Mesh Screen
keywords :
Woven Mesh Screen
base material :
Low carbon steel Q195/Q235
Zinc layer thickness :
≥70μm
Aperture :
1.2mm-10mm
Wire diameter :
0.18mm-0.8mm
Description

Reinforced edge binding Woven Mesh Screen quarry trommel system

Woven Mesh Screen Product overview

Engineered for high-abrasion mining and quarry operations, this heavy-duty screen features hot-dip galvanized low-carbon steel wires (zinc coating ≥70μm) for superior corrosion resistance. With a dual-wear-resistant design (thick wires + robust plain weave), it optimizes gravel/ore sizing while resisting impact, corrosion, and abrasion, drastically reducing equipment downtime.

Woven Mesh Screen Product features

  • ≥70μm zinc coating (ISO 1461 compliant), >1000h salt spray resistance – 3x lifespan vs electro-galvanized mesh.
  • Hardened steel wires (500-700MPa) + reinforced weave joints (40% stronger) – <3% aperture deformation under granite/iron ore impact.
  • Custom apertures (5mm-100mm±5%) & tiered sizing layers – >60% open area boosts throughput by 20%.
  • Withstands ≥5g vibration & 20t/h throughput; operable at -40℃~200℃ for extreme climates.

Woven Mesh Screen Application scenarios

  • Quarry primary crushing and screening:50-100mm aperture to intercept boulders, galvanized layer to resist stone scraping and corrosion
  • Gold placer drum screen washing:Gradient combination screen layer (20mm+10mm+5mm) efficiently separates gravel/gold sand, and wear-resistant wire resists mud wear
  • Iron ore vibrating screen fine classification:High open porosity increases magnetite slurry screening speed and resists metal fatigue
  • Coal mine anti-blocking screen:The serrated edge design prevents wet coal from adhering, and the zinc layer resists hydrogen sulfide corrosion

​

Woven Mesh Screen Detailed specifications

base material Low carbon steel Q195/Q235
Zinc layer thickness ≥70μm
Wire diameter range 2.0mm - 12.0mm
Aperture accuracy 5mm–100mm
Weaving process Heavy plain weave
tensile strength 500–700 MPa

Woven Mesh Screen product details

Reinforced Edge Binding Stainless Steel Woven Screen Q195 Q235 Quarry Trommel System
