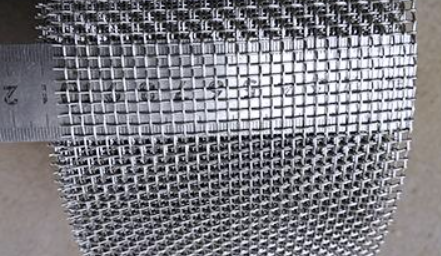

Laser Cut Uniform Apertures Woven Wire Screen Cloth Lab Test Sieves
Laser Cut Uniform Apertures Woven Wire Screen Cloth Lab Test Sieves
Laser Cut Uniform Apertures Woven Wire Screen Cloth Lab Test Sieves
Laser Cut Uniform Apertures Woven Wire Screen Cloth Lab Test Sieves
Specifications
Brand Name :
JUN HENG
Place of Origin :
Hebei, China
MOQ :
1000 square meters
Price :
1.8-3.2USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 square meters per month
Delivery Time :
10days
Packaging Details :
Non-pesticide-treated pallets
product name :
Woven Mesh Screen
keywords :
Woven Mesh Screen
Standard size :
300×300mm to 1500×2000mm
Structure type :
5-Layer PTFE/316L Composite Weave
Wire diameter :
0.18mm-0.8mm
Aperture :
1.2mm-10mm
Description

Laser-cut uniform apertures Woven Mesh Screen lab test sieves

Woven Mesh Screen Product overview

Engineered for harsh chemical filtration, this industrial-grade screen features a revolutionary 5-layer weave of PTFE fibers and 316L stainless steel wires. Patented technology eliminates infiltration corrosion in acid/solvent filtration, with 1-500μm precision options, certified to ISO 2942.

Woven Mesh Screen Product features

  • PTFE-coated 316L wires, metal ion release <0.01ppm (USP Class VI compliant)
  • Withstands 98% H₂SO₄, 40% HF(≤80℃), 300% longer service life vs mono-layer screens
  • 1-5 layer gradient weave, ±3% accuracy tolerance (1/5/20/100μm custom options)
  • Self-cleaning twill pattern + anti-static surface, flux retention >90%(200hr test)

Woven Mesh Screen Application scenarios

  • Semiconductor Wet Process: HF/HNO₃ etching bath filtration, PCB plating solution
  • Chemical Synthesis: H₂SO₄ catalyst recovery, organic solvent clarification
  • Biopharma: Cell culture media sterilization, high-purity acid buffer purification
  • Hazardous Waste: Acid recycling systems, heavy metal ion capture

Woven Mesh Screen Detailed specifications

Structure type 5-Layer PTFE/316L Composite Weave
Standard size 300×300mm to 1500×2000mm
Temperature resistance range -40°C ~ 180°C
initial pressure difference ≤0.02MPa@20L/min·m²
Certification standards ISO 2942 (Permeation Resistance), FDA 21 CFR 177.1550, REACH SVHC

Woven Mesh Screen product details

Laser Cut Uniform Apertures Woven Wire Screen Cloth Lab Test Sieves
