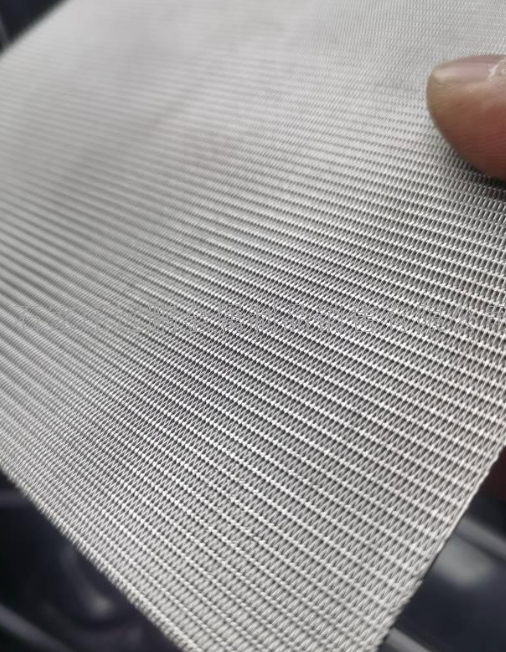

Micron Level Accuracy Woven Wire Screen Cloth
Micron Level Accuracy Woven Wire Screen Cloth
Micron Level Accuracy Woven Wire Screen Cloth
Micron Level Accuracy Woven Wire Screen Cloth
Specifications
Brand Name :
JUN HENG
Place of Origin :
Hebei, China
MOQ :
1000 square meters
Price :
1.8-3.2USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100,000 square meters per month
Delivery Time :
10days
Packaging Details :
Non-pesticide-treated pallets
product name :
Woven Mesh Screen
keywords :
Woven Mesh Screen
Material :
65Mn spring steel
plating :
Zn-5%Al Galfan®
Aperture :
1.2mm-10mm
Wire diameter :
0.18mm-0.8mm
Description

Micron-level accuracy Woven Mesh Screen pharmaceutical grading

Woven Mesh Screen Product overview

Our patented hexagonal lattice (120° symmetry) with warp-wise twin-wire ribs delivers 300% higher crush resistance. Aggregates roll out freely with zero right-angle jamming, achieving >95% throughput in C40 concrete mixing vs. 85% for square meshes. Aperture deformation <0.5% after 12hr continuous operation.

Woven Mesh Screen Product features

  • structural stability:6-axis load distribution,850MPa compressive strength
  • Anti-blocking efficiency:＞45° sliding angle,Reduce downtime by 90%
  • Grading accuracy control:±1mm aperture tol.,Secure aggregate ratio compliance

Woven Mesh Screen Application scenarios

  • Coarse aggregate screening at commercial concrete mixing stations5-31.5mm stone crushing pass rate 98%
  • Machine-made sand fine particle separation0.15-5mm sand sieve residue ≤8%
  • RCC dam aggregate gradingReduce the risk of segregation in large concrete volumes

Woven Mesh Screen Detailed specifications

Material 65Mn spring steel
plating Zn-5%Al Galfan®
Aperture range 3mm / 5mm / 8mm / 12mm / 20mm
Screen thickness 3.0 / 4.5 / 6.0mm
Compressive strength 850 MPa (Yield), 1100 MPa
dynamic fatigue life >2,000,000 times
Connection method Bolt-on bead / hook-edge tensioning

Woven Mesh Screen product details

Micron Level Accuracy Woven Wire Screen Cloth
