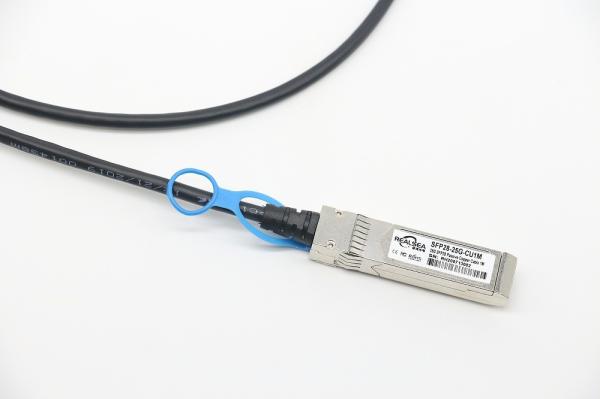

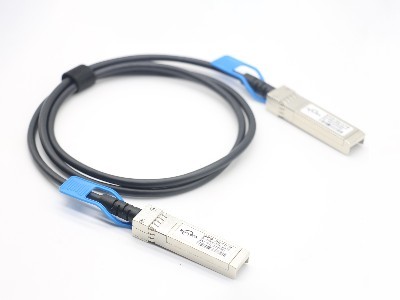

Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet
Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet
Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet
Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet
Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet
Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet
Specifications
Brand Name :
YINGDA
Model Number :
RSP-25G-DAC
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
US$7-20
Payment Terms :
D/A,D/P,T/T
Supply Ability :
1000000per month
Delivery Time :
3-7 working days
Connector :
SFP28 to SFP28
Operating Temperature :
0°C to 70°C
Cable Type :
30/24AWG
Compliance Standards :
RoHS/CE/FCC
Product Type :
Fiber Optic Transceivers
Type :
SFP28 to SFP28
Data Transfer Rate :
25 Gbps
Distance :
1m 2m 3m 5m
Temp :
0~70
Description

Description

High speed 25G SFP28 DAC cable direct attach provide high-performance, low-cost solutions for 25G Ethernet. 100% perfect compatibility with a full range of brand servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other equipment, 25G high-speed cables enable manufacturers to achieve S high port density design, configuration and use at a very low cost and low power.



Technical Parameter


Product Model

RSP-25G-DAC
Transmission rate 25G
Transmission distance 1-5M (optional)
Packaging form

SFP28 to SFP28
Cable Type 30AWG/24AWG
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Warranty 3Years
Cable material PVC
Power supply voltage 3.3V



Features

  • Supports hot-swappable SFP28 form factor
  • Compliant with SFF-8431/SFF-8432
  • Compliant with SFP+ MSA and 10GSFP+Cu standards
  • Maximum rate up to 25.7815 Gbps
  • Connection length up to 5 meters via active copper cable
  • Enhanced EMI/EMC performance
  • Provide cable sizes from 30AWG to 28AWG
  • I2C-based two-wire serial interface with customizable EEPROM signature
  • Maximum power consumption 0.5W
  • Compliant with RoHS 6.0
  • 2-3 working days fast delivery if a standard products

Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G EthernetLow-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet


Widely Compatibility
To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many
brands of switches, such as Cisco, Intel...

Low-cost Solutions 25GBASE SFP28 DAC Cable 3meter Passive Twinaxial Cable For 25G Ethernet




*Suitable for devices of the above brands with built-in SFP interfaces




Wide Application


25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU




More DAC cable for optional

Item# Transmission rate Transmission distance Cable Type Packaging form
SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
