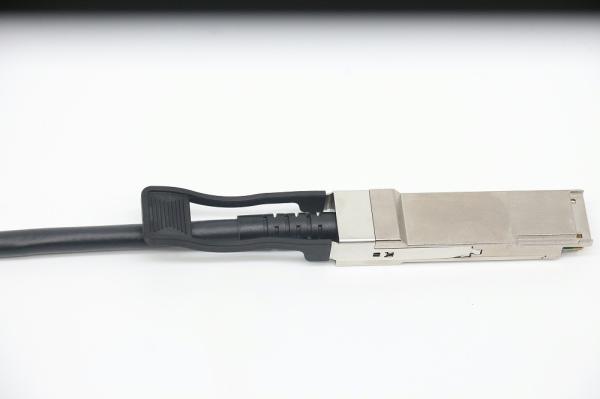

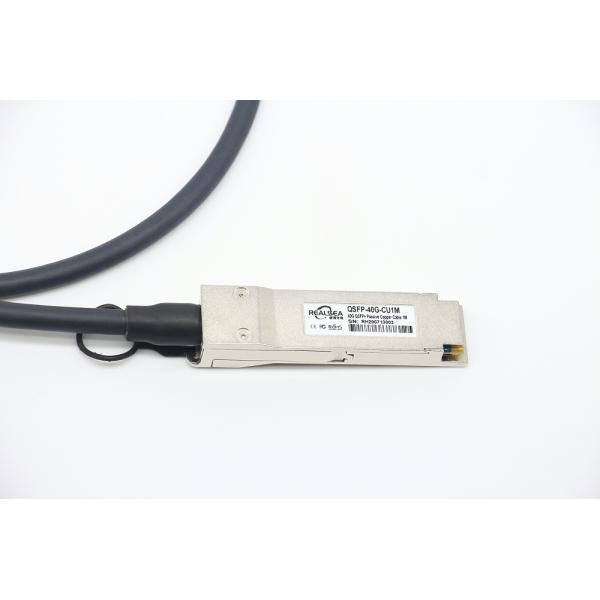

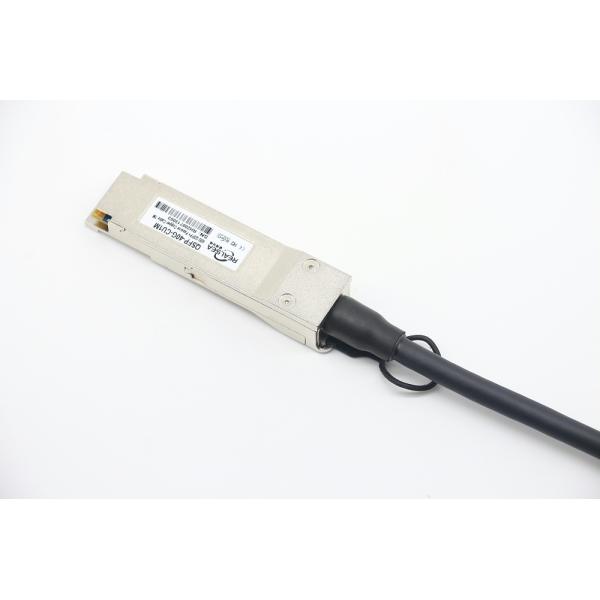

Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission
Specifications
Brand Name :
YINGDA
Model Number :
QSFP28 100g cu1m
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
US$7-20
Payment Terms :
D/A,D/P,T/T
Supply Ability :
1000000per month
Delivery Time :
3-7 working days
Connector :
QSFP28 to QSFP28
Operating Temperature :
0°C to 70°C
Cable Type :
30/24AWG
Compliance Standards :
RoHS/CE/FCC
Product Type :
Fiber Optic Transceivers
Type :
QSFP+ to QSFP+
Data Transfer Rate :
40 Gbps
Distance :
1m 2m 3m 5m
Temp :
0~70
Description

Description

The QSFP28 high-speed cable is applied in data center interconnection scenarios such as 100G Ethernet and InfiniBand. It is 100% compatible with all series of brand servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other full series of devices. The QSFP28 high-speed cable has advantages such as extremely high reliability, low cost and low power consumption.

Technical Parameter

Product Model QSFP28-100G-DAC
Transmission rate 100G
Transmission distance 1-5M (optional)
Packaging form

QSFP28 to QSFP28
Cable Type 30AWG/24AWG
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Warranty 3Years
Cable material PVC
Power supply voltage 3.3V

Features

  • Supports hot-swappable QSFP+ form factor
  • 4-channel full-duplex active copper transceiver
  • Maximum rate up to 100Gbps
  • Compliant with QSFP28 MSA and IEEE 802.3ba 40GBASE-CR4 standards
  • Compatible with Ethernet Fibre Channel and InfiniBand SDR/DDR/QDR standards
  • Connection length up to 5 meters via passive copper cable
  • Enhanced EMI/EMC performance
  • Available cable sizes from 30AWG to 24AWG
  • I2C-based two-wire serial interface with customizable EEPROM signature
  • Operating temperature: 0~70℃
  • RoHS 6.0 compliant

Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data TransmissionSeamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission

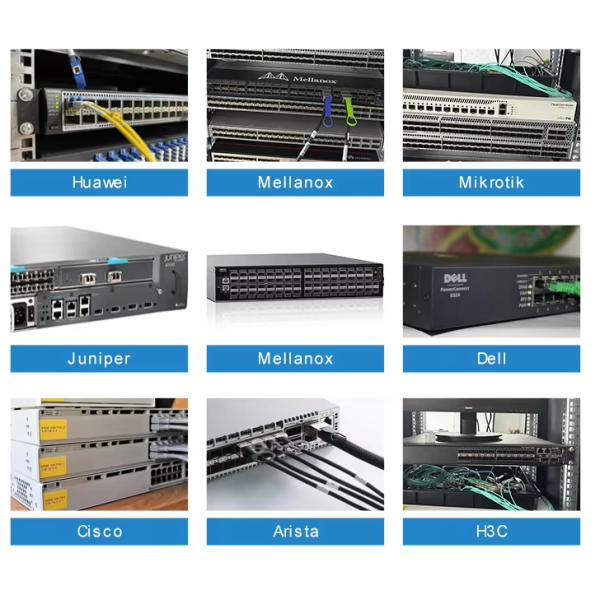

Widely Compatibility


To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco, Intel...

Seamless 40 Gbps Data Transfer Rate 100G QSFP28 to QSFP28 1M DAC Cable for Data Transmission

Wide Application

25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU

More DAC cable for optional

Item# Transmission rate Transmission distance Cable Type Packaging form
SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
