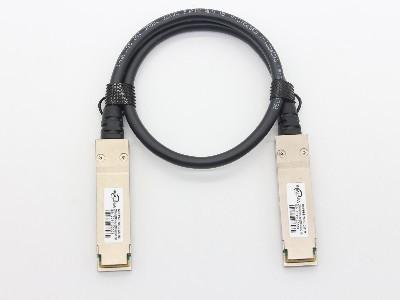

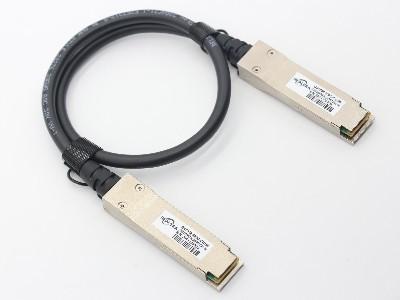

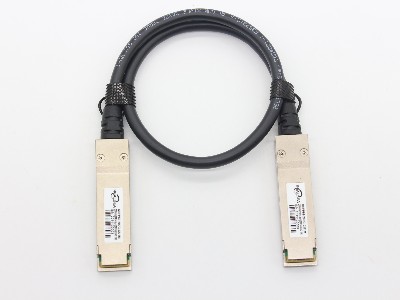

200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable
200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable
200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable
200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable
Specifications
Brand Name :
YINGDA
Model Number :
QSFP56-200G-DAC
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
US$7-20
Payment Terms :
D/A,D/P,T/T
Supply Ability :
1000000per month
Delivery Time :
3-7 working days
Connector :
QSFP56 to QSFP56
Operating Temperature :
0°C to 70°C
Cable Type :
30/24AWG
Compliance Standards :
RoHS/CE/FCC
Product Type :
Fiber Optic Transceivers
Type :
QSFP56 to QSFP56
Data Transfer Rate :
200 Gbps
Distance :
1m 2m 3m 5m
Temp :
0~70
Description

Description

200G QSFP56 high-speed cables are used in data center interconnection scenarios such as 100G Ethernet and InfiniBand. 100% perfect compatibility with a full range of brand servers, switches, routers, PDH/SDH transmission equipment, EPON, GPON, WDM PON base stations and other full range of equipment. QSFP56 high-speed cables have extremely high reliability and low cost.

Technical Parameter

Product Model QSFP56-200G-DAC
Transmission rate 200G
Transmission distance 1-5M (optional)
Packaging form

QSFP56 to QSFP56
Cable Type 30AWG/24AWG
Brand YINGDA
Compatible with brand Extreme, Intel, Huawei, Cisco, HP, H3C, etc
Operating temperature 0~70℃
Warranty 3Years
Cable material PVC
Power supply voltage 3.3V

Features

  • Supports hot-swappable QSFP56 and SFP56 packages
  • Complies with QSFP56 MSA, SFP28 MSA, SFF-8636, and SFF-8402 standards
  • Maximum rate up to 200 Gbps
  • Complies with IEEE 802.3bj 100GBASE-CR4 and 802.3by 25GBASE-CR standards
  • Cable length can be customized within 5 meters
  • Low insertion loss and low crosstalk, etc.
  • Operating temperature: 0 – 70℃
  • Power supply voltage: 3.3V
  • Complies with RoHS 6.0

200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable

Widely Compatibility


To ensure the compatibility of our products.YINGDA products will be tested on the switch before shipment. Our modules are compatible with many brands of switches, such as Cisco, Intel...

200G QSFP56 QSFP DD DAC Cable High Speed Sfp Passive Coax Dac Cable

Wide Application

25G Ethernet
Data storage and communications industry switches/routers/hba
Enterprise Networking SAN
High Performance Computing Clusters
High-end servers
InfiniBand QDR and Base Station/ BBU/ RRU

More DAC cable for optional

Item# Transmission rate Transmission distance Cable Type Packaging form
SFP-10G-CUxM 10G 1-10M 30/24AWG SFP+ to SFP+
SFP28-25G-CUxM 25G 1-5M 30/26AWG SFP28 to SFP28
QSFP-40G-CUxM 40G 1-7M 30/24AWG QSFP+ to QSFP+
QSFP28-100G-CUxM 100G 1-5M 30/26AWG QSFP28 to QSFP28
QSFP-4x10G-CUxM 40G 1-7M 30/24AWG QSFP+ to 4SFP+
QSFP28-4x25G-CUxM 100G 1-5M 30/26AWG QSFP28 to 4SFP28
