Specifications
Brand Name :
YINGDA
Model Number :
SFP-1G-T
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10pcs
Price :
3.6usd-19.9usd
Payment Terms :
D/A,D/P,T/T
Delivery Time :
5-7 working days
Type :
Fiber Optic Transceivers
Connector :
RJ45
Form Factor :
SFP+
Network :
Wired LAN
Use :
Switch/Network Card/Router/Server
Description

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network



SFP-1G-T Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100meters reach over unshielded twisted-pair category 5 cable. The module supports 10/100/1000Mbps auto negotiation data-links when the SFP interface support SGMII also. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of 0xA0- 0xA2 via the IIC BUS protocol.



Features:

  • Up to 1.0Gb/s bi-directional data rate
  • Hot-pluggable SFP
  • Fully metallic case for low EMI
  • Low power consumption (0.5W typical)
  • Compact RJ-45 connector assembly
  • 10/100/1000Mbps compliant in host systems with SGMII Interface
  • 100Mbps compliant in host systems with 100Base-FX interface
  • Compatible with RoHS and lead-free
  • Case operating temperature:

Commercial

0°C to +70°C

Industrial

-40°C to +85°C


Mechanical Specifications(Unit:mm)

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network


Pin Description

Descriptions

Pin

Signal Name

Description

Plug Seq.

Notes

1

VeeT

Transmitter Ground

1

2

TX FAULT

Transmitter Fault Indication

3

Note1

3

TX DISABLE

Transmitter Disable

3

Note2

4

MOD_DEF(2)

SDA Serial Data Signal

3

Note3

5

MOD_DEF(1)

SCL Serial Clock Signal

3

Note3

6

MOD_DEF(0)

TTL Low

3

Note3

7

Rate Select

Not Connected

3

8

LOS

Loss of Signal

3

Note4

9

Veer

Receiver ground

1

10

Veer

Receiver ground

1

11

Veer

Receiver ground

1

12

RX-

Inv. Receiver Date Out

3

Note5

13

RX+

Receiver Date Out

3

Note5

14

VeeR

Receiver ground

1

15

VccR

Receiver Power Supply

2

16

VccT

Transmitter Power Supply

2

17

VeeT

Transmitter Ground

1

18

TX+

Transmit Date In

3

Note6

18

TX-

Inv. Transmit Date In

3

Note6

20

VeeT

Transmitter Ground

1




Detail information:

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network

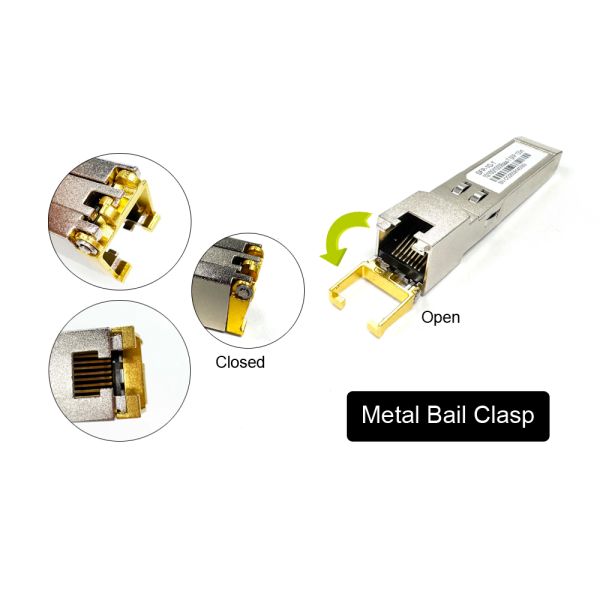

1.25G Copper SFP Module use metal bail clasp to pulling the optical transceivers outside of the SFP Port, it can turn 90 degree and then pull out of the module horizontally and softly.

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network


YINGDA provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network

Wide Compatibility

Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.

10/100/1000M Copper SFP Transceiver 1.25 G SFP To RJ45 Connect With Cat5 Cat6 Copper Cable LAN Network



FAQ


1. Are you factory or trading company?

Shenzhen YINGDA Photonic Co. Ltd is a specialized manufacturer of fiber optic telecon products, such as fiber optic splitter box,fiber termination box, PLC Splitter,patch cord, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
