Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution
Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution
Specifications
Brand Name :
YINGDA
Certification :
ISO,CE
Place of Origin :
China
MOQ :
10pcs
Price :
3.6usd-19.9usd
Payment Terms :
D/A,D/P,T/T
Delivery Time :
5-7 working days
Type :
Fiber Optic Transceivers
Connector :
SC
Form Factor :
SFP+
Network :
Wireless Lan, POE
Use :
FTTH, High-speed storage area networks, data pipes
Data rate :
1.25Gbps
Wavelength :
1310
Transmission distance :
20km
Description

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution


The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps and 10km transmission distance with SMF.


The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.


The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution


Absolute Maximum Ratings

Table 1 - Absolute Maximum Ratings

Parameter

Symbol

Min

Max

Unit

Supply Voltage

Vcc

-0.5

4.5

V

Storage Temperature

Ts

-40

+85

°C

Operating Humidity

-

5

85

%

Recommended Operating Conditions

Table 2 - Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Tc

0

+70

°C

Power Supply Voltage

Vcc

3.13

3.3

3.47

V

Power Supply Current

Icc

300

mA

Data Rate

1.25

Gbps



Optical and Electrical Characteristics

(FP and PIN, 1310nm, 5km Reach) Table 3 - Optical and Electrical Characteristics

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Centre Wavelength

λc

1260

1310

1360

nm

Spectral Width (RMS)

∆λ

9

nm

Average Output Power

Pout

-9

-3

dBm

1

Extinction Ratio

ER

9

dB

Optical Rise/Fall Time (20%~80%)

tr/tf

0.16

ns

Data Input Swing Differential

VIN

400

1800

mV

2

Input Differential Impedance

ZIN

90

100

110

Ω

TX Disable

Disable

2.0

Vcc

V

Enable

0

0.8

V

TX Fault

Fault

2.0

Vcc

V

Normal

0

0.8

V

Receiver

Centre Wavelength

λc

1530

1550

1570

nm

Receiver Sensitivity

-24

dBm

3

Receiver Overload

0

dBm

3

LOS De-Assert

LOSD

-28

dBm

LOS Assert

LOSA

-30

dBm

LOS Hysteresis

1

4

dB

Data Output Swing Differential

Vout

400

1800

mV

4

LOS

High

2.0

Vcc

V

Low

0.8

V

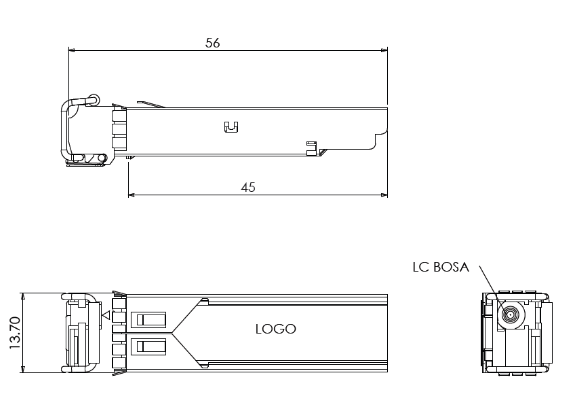

Mechanical Dimensions

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution

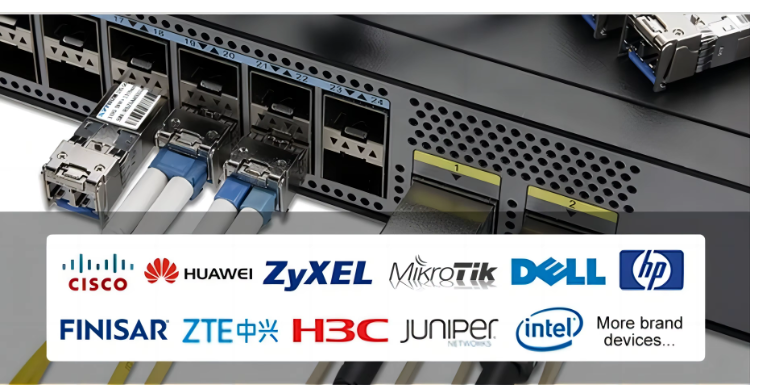

Wide Compatibility

Compatible with various brands of equipment,such as switches/routers/servers/transceivers or other devices with SFP interfaces.

Sfp Module 1.25G 40km T1550 R1310 Sfp Transceiver Epon Sfp Optical Module Single Mode Fiber Sc Network Fttx Solution


Applications

  • GBE,SDH STM-8 and SONET OC-24 system
  • Fiber Channel
  • Switch to Switch interface
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems





Ordering information

Part Number

Product Description

YH-S1213-L3305C

1310nm, 1.25Gbps, LC,5km, 0°C~+70°C

YH-S1213-L3305T

1310nm, 1.25Gbps, LC,5km, -40°C~+85°C,






1. Are you factory or trading company?

Shenzhen YINGDA Photonic Co. Ltd is a specialized manufacturer of fiber optic telecon products, such as fiber optic splitter box,fiber termination box, PLC Splitter,patch cord, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, but we need to charge for samples, we will return sample fee in the later order.
3. What is your MOQ and the lead time?
We don’t have MOQ, 1 samples is available. Normally lead time is 1-3 working days for samples and 3-5 days for mass.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
