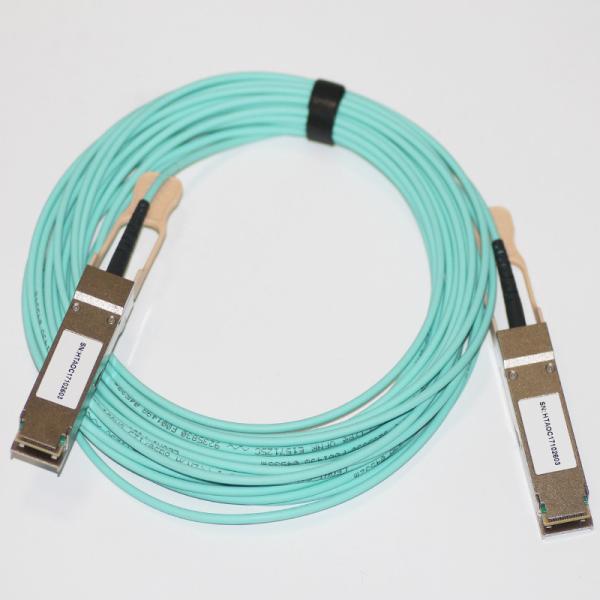

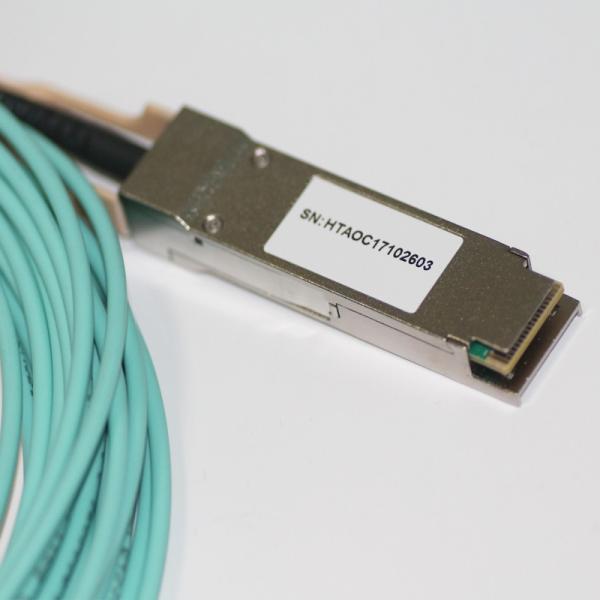

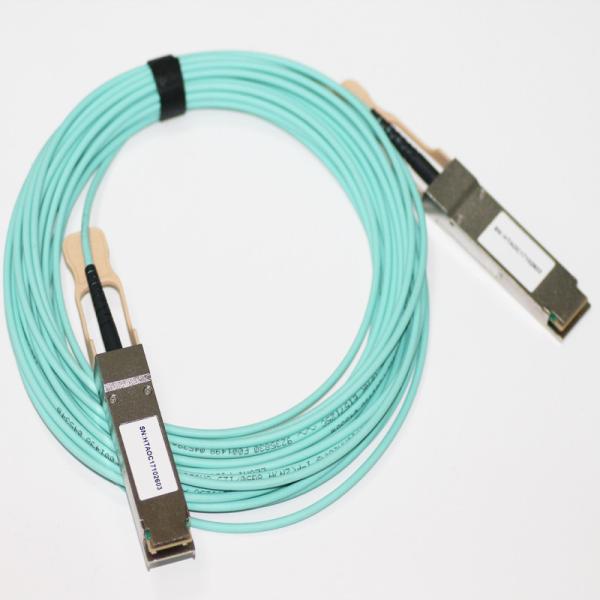

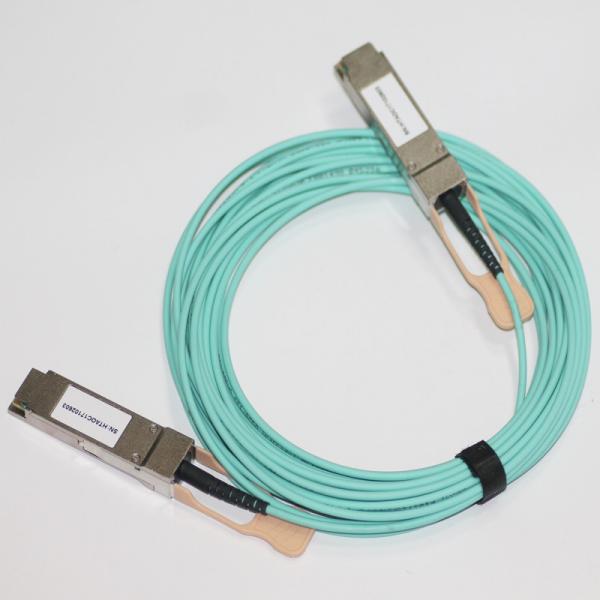

Compatible 40GBASE-AOC QSFP+ Active Optical Cable Assembly 850nm 10 meter

Hangalaxy QSFP+ to 4x SFP+ breakout Active Optical Cable offers IT professionals a cost-effective interconnect solution for merging 40G QSFP and 10G SFP+ enabled host adapters, switches and servers. For typical applications, users can install this splitter Active Optical cable between an available QSFP+ port on their 40Gbps rated switch and feed up to four upstream 10GbE SFP+ enabled switches. Each QSFP+-SFP+ splitter Active Optical cable features a single QSFP+ connector (SFF-8436) rated for 40Gbps onone end and (4) SFP+ connectors (SFF-8431), each rated for 10-Gb/s.

Features

1. Electrical interface compliant to QSFP+ connector (SFF-8436) and SFP+ connectors (SFF-8431);

2. Hot Pluggable;
3. 850nm VCSEL transmitter, PIN photo-detector receiver;
4. Up to 100m on OM3 MMF;
5. Operating case temperature: 0to 70°C;
6. All-metal housing for superior EMI performance;
7. RoHS compliant (lead free).

Applications

1. 40 Gigabit Ethernet;
2. Fibre Channel Applications;
3. InfiniBand QDR, SDR, DDR;
4. High-performance computing clusters;
5. Servers, switches, storage and host card adapters.

Technical Parameter

Recommended Operating Conditions

Transmitter

CWDM/DWDM Module Workshop

Hangalaxy ISE Exhibition

Quality Guarantee

Hangalaxy has this QSFP+ to 4 x SFP+ AOC Cable, 1 Meter - AOC-QSFP-4SFP-1M in stock and ready to ship. This cable is tested for 100% functionality and guaranteed compatible for outstanding network performance. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity. We can provide this cable in any lengths. If the length you need is not listed on our website, please feel free to contact us.
