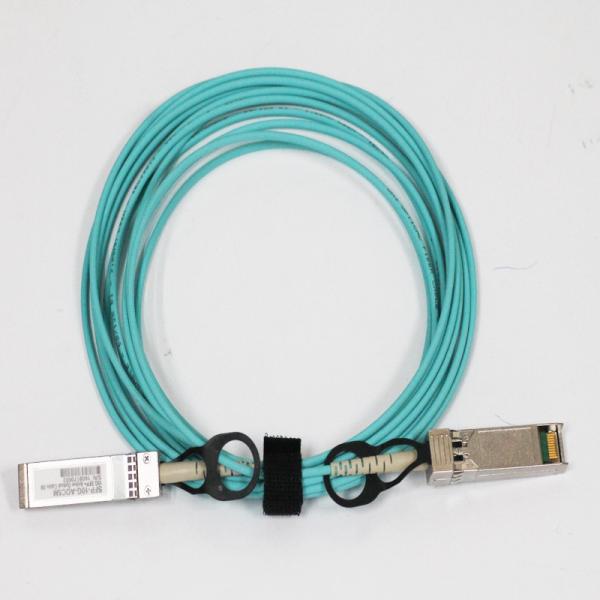

Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-0986
Certification :
ROHS, UL, SGS, CE
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Cable Color :
Aqua
Connector Type :
QSFP+ to QSFP+
Data Rate :
40Gbps
Minimum Bend Radius :
7.5mm
Cable Length :
50m
Jacket Material :
OFNP
Protocols :
40G InfiniBand 8x DDR, 4x QDR, 10G/40Gigabit Ethernet, Fibre Channel
Fiber Mode :
Multimode, OM3
Description

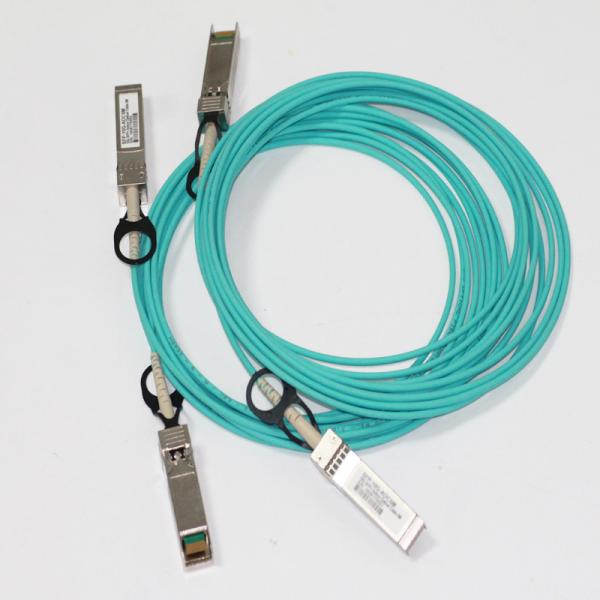

Quad Small Form-factor Pluggable 40G QSFP+ Active Optical Breakout Cable

This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G Infini-Band QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.

Keyed Characteristics


● Quad Small Form-factor Pluggable Plus (QSFP+) to 4 x Small Form-factor Pluggable Plus (SFP+) active optical cable.
● Active fibre cable assembly.
● 41.2 Gbit/sec to 4 x 10.5 Gbit/sec
● Operating distance of 10 metre.
● Operating temperature 0 - 70 c.
● Transmission media Multi-mode Fibre.

Safety Standards


● EN 60825-1 (2007)/EN 60825-2 (2010);
● FDA 21CFR1040.10 Class 1 Laser Product;
● Compliance with Restriction on Hazardous Substances (RoHS) directive;
● CE Marked.

Applications


● 40GbE and 10GbE break-out applications for Datacom switch and router connections;
● 40G to 4×10G density applications for Datacom and Proprietary protocol applications;
● Datacenter.

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Storage Temperature TST -20 85 ℃
Relative Humidity RH 0 85 ％
Case Operating Temperature TOPC 0 70 ℃
Supply Voltage VCC -0.3 3.6 V

Recommended Operating Conditions

Parameter Symbol Min Typical Max Unit
Operating Case temperature TA 0 +70 ℃
Supply Voltage VCC 3.13 3.3 3.47 V
Supply current Icc 300 mA
Channel Data Rate Dr - 25.78125 Gbps

Transmitter

Parameter Symbol Min Typical Max Unit
Input differential impedance Zin 90 100 110 Ω
Differential Data Input Swing Vin PP 300 1100 mV
Transmit Enable Voltage VEN 0.8 V
Transmit Disable Voltage VD 2.0 V
Average launch power PAVG -7.5 -1 +2.5 dBm
Extinction Ratio ER 2.0 dB
Centre Wavelength λc 840 850 860 nm

Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable

CWDM/DWDM Module Facilicy

Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable

Hangalxy AWG Module Factory

Small Form Factor QSFP+ Active Optical Cable / Pluggable 40g Aoc Cable

The rate of Hangalaxy 40G AOC cable is quite stable on our Cisco Nexus 9000 series equipment with no compatibility issue. Very pleased with my first order for nice products' performance. Regarding to my next project, will order FS products again.

Dispatch

All orders received before 4pm Monday to Friday will ship the same day. We will endeavour to ship any orders received after this deadline, however please call if you require confirmation.
