Specifications
Brand Name :
Hanglaxy
Model Number :
HGYN-00258
Certification :
CE, SGS, FDA, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector :
LC UPC
Polish Type :
UPC
Cable OD :
3.0mm
Cable Material :
LSZH
Cable Color :
Yellow
Bend Radius :
8mm
Fiber Type :
Singelmode
Wavelength :
1310nm
Description

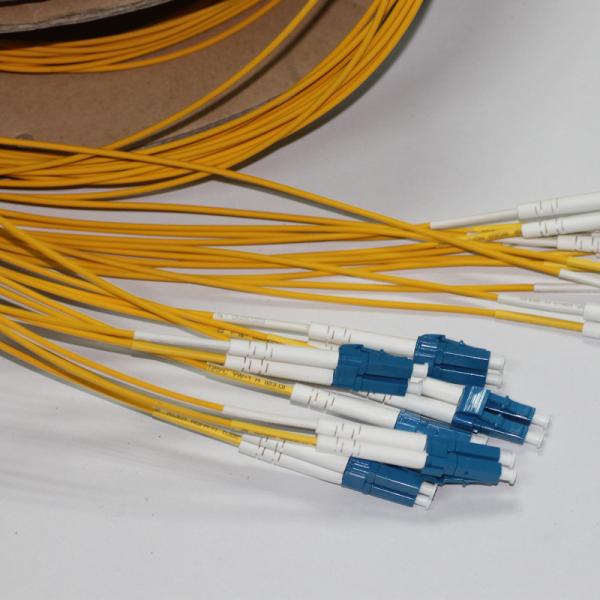

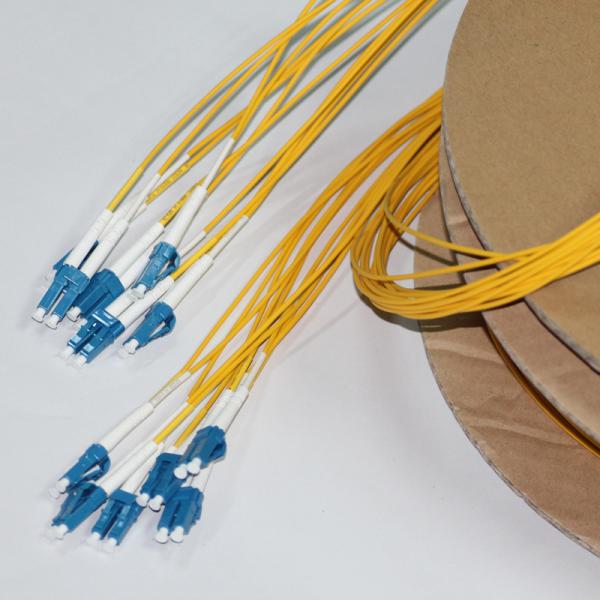

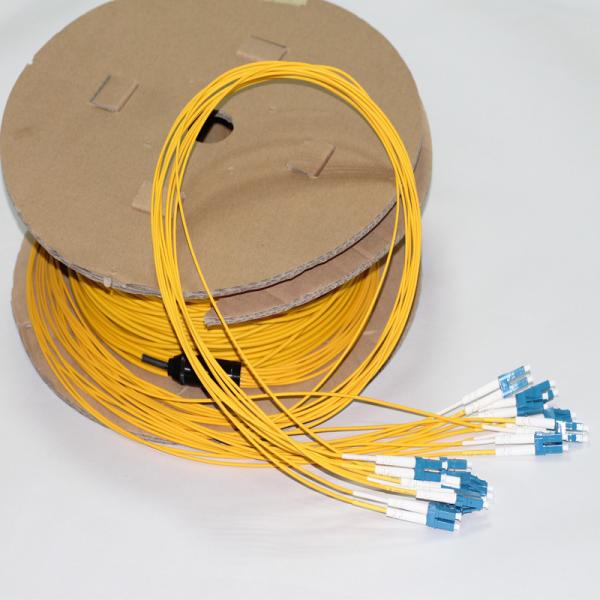

12F LC UPC Singlemode Fiber Optic Pre-installed Multiple LSZH Patch Cable

HangalaxyMPO Interconnect Round Cable Assemblies are pre-terminated 12-fiber cable assemblies that are used in high-density network applications. These interconnect round cable assemblies are used with pre-terminated cassettes in main and horizontal cabling distribution areas. The System meets the demands of Gigabit Ethernet, 10 Gigabit Ethernet, and high speed Fibre Channel systems while maintaining compatibility with Ethernet. The high-density modular design fits into rack mount fiber cassette enclosures to ensure efficient use of space and rapid network deployment.

Application


Interconnect cables are small in diameter, extremely flexible and intended for shorter cable runs. These small cables minimize
waste, optimize cable management, speed deployment, and improve flexibility and manageability.

Quality Features

(1) YOFC G.657A1 optic fiber;

(2) 10mm minimum bend radius;

(3) Insertion loss and return loss testing;

(4) End-face inspection;

(5) 3D interferometer test.

Physical Properties

Cable outside diameter (OD) 3.0mm
Minimum bend radius 30mm
Cable retention strength 50N
Flex 100 cycles at 4.9N
Twist 10 cycles at 15N
Gender reversal durability 50 cycles
Polarity reversal durability 50 cycles

Environmental Properties

Storage and shipping temperature -40°C to 70°C
Installation temperature 0°C to 40°C
Operating temperature -10°C to 60°C

Optical Properties

Maximum cable attenuation

3.5dB/km at 850nm

1.5dB/km at 1300nm
Maximum connector insertion loss Singlemode: 0.50dB
Minimum connector return loss Singlemode: OM3 26dB
OM4 26dB

Other options are available as follows:
Fiber Types: OM1 62.5/125, OM2 50/125, OM3, OM4
Fiber Counts: 12-fiber
Jacket Type: LSZH and Plenum
Construction/Performance: Standard IL. Optimized and Ultra IL for multimode. Polarity (Method) A and Polarity (Method) B.
Please contact Hanglaxy customer service for information on additional part number options.

LSZH Patch Cable 12F LC UPC Singlemode Fiber Optic Pre installed Multiple

Hangalaxy Workshop

LSZH Patch Cable 12F LC UPC Singlemode Fiber Optic Pre installed Multiple

Our Exhibition Activities

LSZH Patch Cable 12F LC UPC Singlemode Fiber Optic Pre installed Multiple

Packing Information


1PCS Each Individual Quality PE Bag


If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
