Specifications
Brand Name :
Hangalaxy
Model Number :
004
Certification :
CE, FDA, SGS, RoHs, ISO9001:2008
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Connector 1 :
LC UPC
Connector 2 :
SC APC
Fiber Mode :
SM G.652D
Fiber Count :
12
Polish Type :
APC, UPC
Cable OD :
3.0mm
Cable Color :
Yellow
Cable Length :
10m
Description

100 meters 12 Core Singlemode G657A1 SC to LC Fiber Optic Pre Terminated LSZH Cable

This cable is factory made, quality controlled fibre optic assembly is specified for short internal optical links. The 900μm tight buffer presentation lends itself to installation within a patch panel, wall box or Optical Distribution Frame (ODF). Crush resistant protective tubing assures secure transportation and installation. The high strength pulling element allows fast, safe and effective pulling. The overall assembly and packing are light and compact, reducing transport cost and storage space. Installation waste is also reduced. A unique link loss certificate accompanies all multifiber assemblies.


Feature & Keyed Characteristic


● Strong, flexible and easy to install;
● Ideal for indoor applications, thanks to the LSZH sheath;
● Great mechanic resistance;
● Totally dielectric.

● Application


√ Data centers.
√ Structured cabling systems.
√ LAN interbuilding installations (Campus) 1, 10, 40 and 100 Gbps applications.
√ Security and transport systems.
√ Community access television (CATV) & multi-system operator (MSO).
√ Central office and local loop.

Cable Performance

FibreType (ISO/IEC 11801) OS1/OS2 OM1 OM2 OM3 OM4

Attenuation Coefficient

[dB/km]

≤ 0.38 Max (1310nm)

≤ 0.25 Max (1550nm)

≤ 0.34 Typ (1310nm)

≤ 0.19 typ (1550nm)

≤ 3.5 Max (850nm)

≤ 1.5 Max (1300nm)

≤ 2.9 Typ (850nm)

≤ 1.2 typ (1300nm)

≤ 3.5 Max (850nm)

≤ 1.5 Max (1300nm)

≤ 2.7 Typ (850nm)

≤ 0.9 typ (1300nm)

Minimum Bandwidth: Overfilled

Launch [Mhz-km]

NA

≥ 200 (850nm)

≥ 500 (1300nm

≥ 500 (850nm)

≥ 500 (1300nm)

≥ 1500 (850nm)

≥ 500 (1300nm)

≥ 3500 (850nm)

≥ 500 (1300nm

Minimum Bandwidth: Laser Effective

Modal Bandwidth [Mhz-km]

NA

NA

NA

≥ 2000

(850nm

≥ 4700

(850nm)

Technical Parameter

Specification Value
Fibre Grade OS1/OS2, G.657A1, OM1, OM2, OM3, OM4 (ISO/IEC)
Cable Specification

Tight buffer 4, 8, 12 and 24 cores (ISO/IEC 60794)

Max OD 24 cores 6.5 ± 0.2

Connectors IEC 61753, IEC 61754, IEC 61755
Pulling Element

a) No pulling element: length < 20mtr

b) A side pulling element: length ≥ 20mtr

Packaging

Length ≤ 100 Coil in heavy duty polymer bag

Length > 100 Drum

Operating Temperature -20 ~ +60°C
Storage Temperature -40 ~ +70°C
Cable Color Yellow, Black, Aqua or customized
Application Indoor / Outdoor

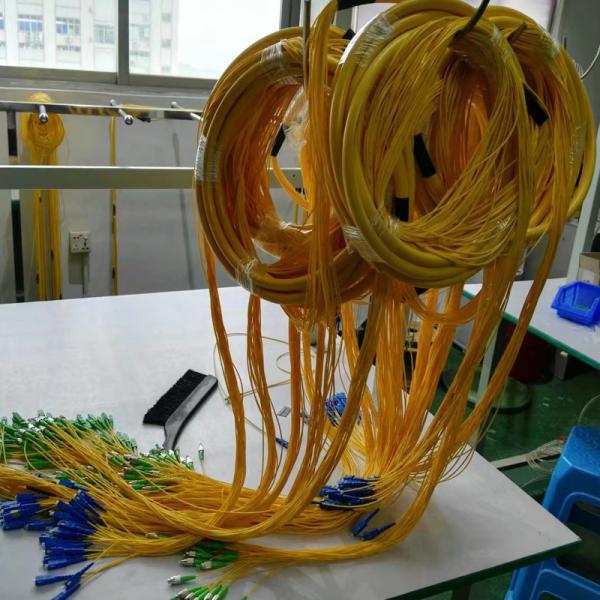

12 Core G657A1 SC To LC 100M Pre Terminated Fiber Optic LSZH

Application in the field

12 Core G657A1 SC To LC 100M Pre Terminated Fiber Optic LSZH
