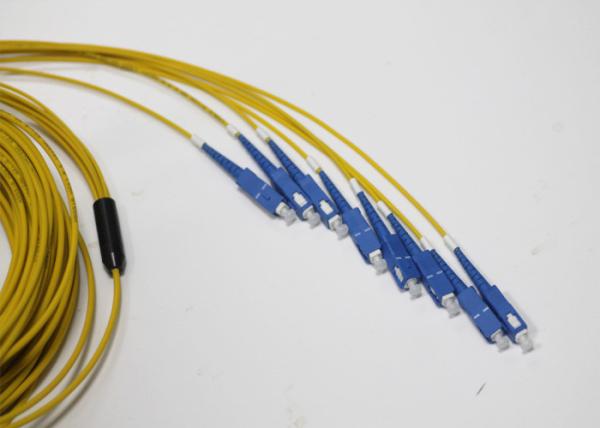

12 Strands Pre Terminated Fiber Optic Cable / SC UPC Trunk Cable Pre Connectorized
12 Strands Pre Terminated Fiber Optic Cable / SC UPC Trunk Cable Pre Connectorized
12 Strands Pre Terminated Fiber Optic Cable / SC UPC Trunk Cable Pre Connectorized
12 Strands Pre Terminated Fiber Optic Cable / SC UPC Trunk Cable Pre Connectorized
Specifications
Brand Name :
Hangalaxy
Model Number :
HGYN-01445
Certification :
CE, UL, ROHS, SGS
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25055PCS Monthly
Delivery Time :
7 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Fiber Count :
12
Fiber Mode :
Singlemode, OS2
Polish Type :
UPC
Connector 1 :
SC UPC
Connector 2 :
LC UPC
Jacket Color :
Yellow
Cable OD :
3.0mm
Jacket Material :
LSZH
Description

12 FO Fiber Optic Pre-connectorized Multiple SC UPC Trunk Cable

Item Description

The HANGALAXY Multifiber cable made by 900μm diameter optical patch cords helically wrapped on a central element. It is possible to order the cable with all available connectors.

Feature & Keyed Characteristic

● Strong, flexible and easy to install;
● Ideal for indoor applications, thanks to the LSZH sheath;
● Great mechanic resistance;
● Totally dielectric.

Application

● Data center and TLC infrastructure.
● Internal optical links.

Technical Parameter

CABLE YELLOW FANOUT SINGLE-MODE
Applicable standards CEI/EN 60793, CEI/EN 60794-1
CONSTRUCTION PERFORMANCE
Pulling load resistance (N) 4-6 fo: 600 / 800 8 – 12 – 16 fo: 1.000 / 1.500 / 2000 18 - 48 fo: 2.000 / 2.500
Crush resistance (N/cm) Da 200 a 250
Static bending radius (mm) 10 times x outer diameter
Dynamic bending radius (mm) 20 times x outer diameter
Temperature (°C) -20 / +80
Installing temperature (°C) -10 / +60
Temperature (°C) -20 / +80
MATERIALS
Outer sheath LSZH (yellow RAL 1018)
External sheath of single fiber LSZH (yellow RAL 1018)
Secondary sheath of single fiber Nylon - SEMITIGHT
Strenght member Aramid yarns

Specifications

Clad Diameter 125 Micron
Core Diameter 62.5 Micron
No. Of Fiber 12
Technology Mode Conditioning
Push/Pull Tabs No
Weight (Lbs) 0.09
Product Warranty Period (Worldwide) Lifetime limited warranty

Hangalaxy Workshop

12 Strands Pre Terminated Fiber Optic Cable / SC UPC Trunk Cable Pre Connectorized

Packing Information

1PCS Each Individual Quality PE Bag

If you feel any more request about the fiber optic connectivity, please give us a email and a call for asking and we will try our best service for you.
