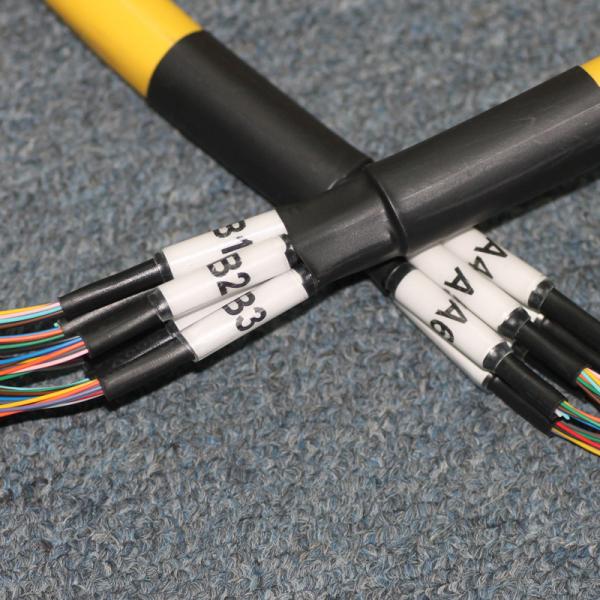

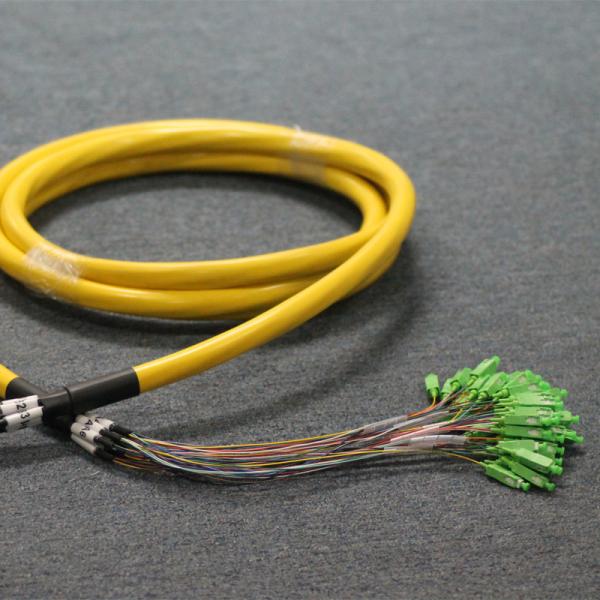

96 Cores Fiber Optic SC End OS2 Singlemode 0.9mm Pre-connectorized Cable

Item Overviews

We provide a complete line of high performance pre-connectorized multi-fiber trunk cable assemblies, with its time efficient and cost effective rather than on field termination or splicing, and they are becoming popular for many fiber installation projects. The easily fiber identification, it allows to make the simply laying the cable and do the rapidly patching. A pulling eye is optional on the pulling end of all trunks to safeguard fibers during installation, it attached around one end of the trunk cable as a protective sleeves, suits the safely pulling the cable through floors, ceilings and walls. The Breakout Trunk Cables are available with 6, 8, 12, 16, 24, 36 and 48 fiber counts with individual 2.0mm typical sub-cable inside the outer jacket, pre-connectorized with a wide variety of connectors and fibers at any length, custom breakout cable structure upon request for your unique applications. All our pre-connectorized multi-fiber trunk cable assembly products are designed to meet or exceed EIA/TIA, IEC and Telcordia standards for performance and reliability.

Feature

(1) 100% tested on optical performance (Insertion Loss;
(2) Customer specified length & Return Loss);
(3) Standard colour is Yellow, Orange, Aqua or Purple, other colours available upon request.

Benefits

• Breakout cable, individual 2.0mm typical sub-cable;
• Available in 6, 8, 12, 16, 24, 36 and 48 or custom fiber counts;
• High strength aramid yarn cable strength member;
• Available in OM1, OM2, OM3, OM4 and OS2 fibre types;
• RoHS compliant – Riser, Plenum, and LSZH rated cables available;
• Eliminate time and labor cost for field termination;
• 100% factory tested;
• Custom configurations available upon request.

Cable Performance

Connector Performance

Hangalaxy PLC Splitter Workshop



Hangalaxy Exhibition Activities Show



Pulling Eye Recommendations

Optional pulling eyes are highly recommended. The pulling eye pulling eye (and associated cable netting) will protect the pre-terminated ends during the pull. In many cases, pulling is not done from point to point, but rather from an intermediate point pulling back in each direction to each termination location. In that scenario, you will need to order the cable with two pulling eyes. In many cases, a cable run is planned to pull direct from point to point. When the installation begins, occasionally, the decision is made to pull from an intermediate point rather than from point to point (in which case you'll be glad that you ordered the extra pulling eye).
