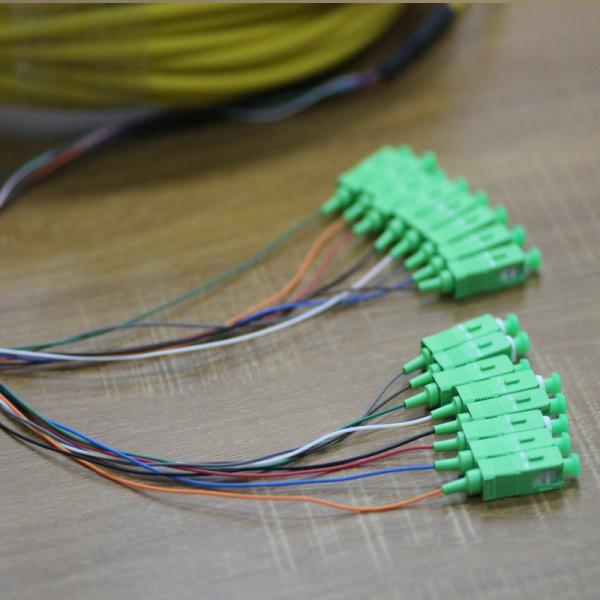

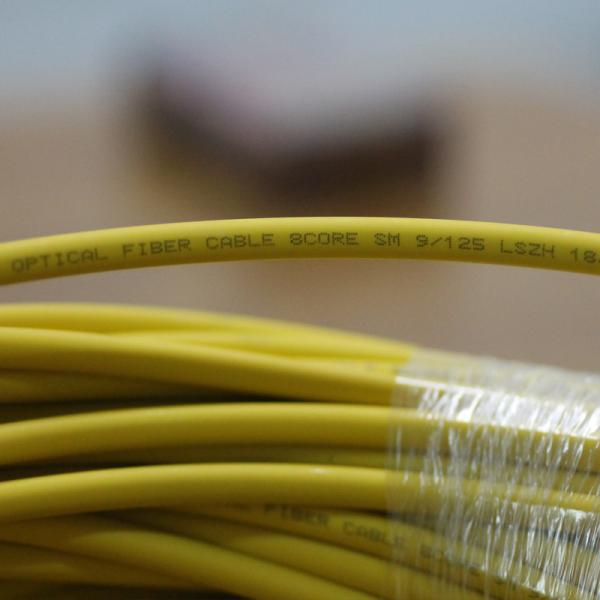

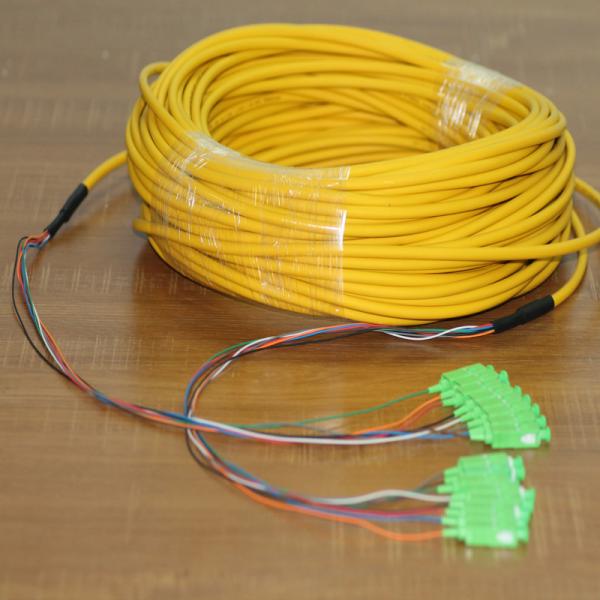

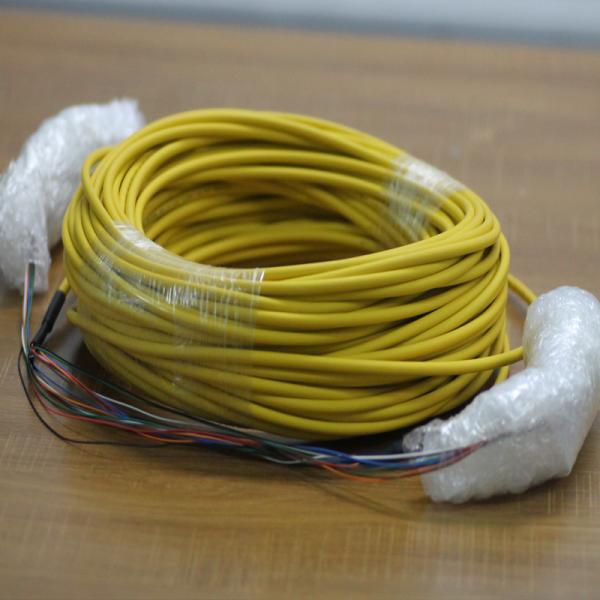

8 Cores Fiber Optic SC OS2 Singlemode Breakout Pre-connectorized Cable

Item Description

We provide this kind of Breakout Trunk Cables are available with 6, 8, 12, 16, 24, 36 and 48 fiber counts with individual 2.0mm typical sub-cable inside the outer jacket, pre-connectorized with a wide variety of connectors and fibers at any length, custom breakout cable structure upon request for your unique applications. All our pre-connectorized multi-fiber trunk cable assembly products are designed to meet or exceed EIA/TIA, IEC and Telcordia standards for performance and reliability.

Feature

(1) Standard 04, 06, 08, 12C, and 14-24C upon request
(2) Extremely flexible, tight buffer cable design
(3) Meet the fire performance test of IEC60332-3C

Benefits

• Breakout cable, individual 2.0mm typical sub-cable;
• High strength aramid yarn cable strength member;
• Available in OM1, OM2, OM3, OM4 and OS2 fibre types;
• RoHS compliant – Riser, Plenum, and LSZH rated cables available;
• Eliminate time and labor cost for field termination;
• 100% factory tested;
• Custom configurations available upon request.

Application

● Data center and TLC infrastructure.
● Internal optical links.

Cable Performance

Hangalaxy PLC Splitter Workshop



Hangalaxy Exhibition Activities Show



Pulling Eye Recommendations

Optional pulling eyes are highly recommended. The pulling eye pulling eye (and associated cable netting) will protect the pre-terminated ends during the pull. In many cases, pulling is not done from point to point, but rather from an intermediate point pulling back in each direction to each termination location. In that scenario, you will need to order the cable with two pulling eyes. In many cases, a cable run is planned to pull direct from point to point. When the installation begins, occasionally, the decision is made to pull from an intermediate point rather than from point to point (in which case you'll be glad that you ordered the extra pulling eye).
