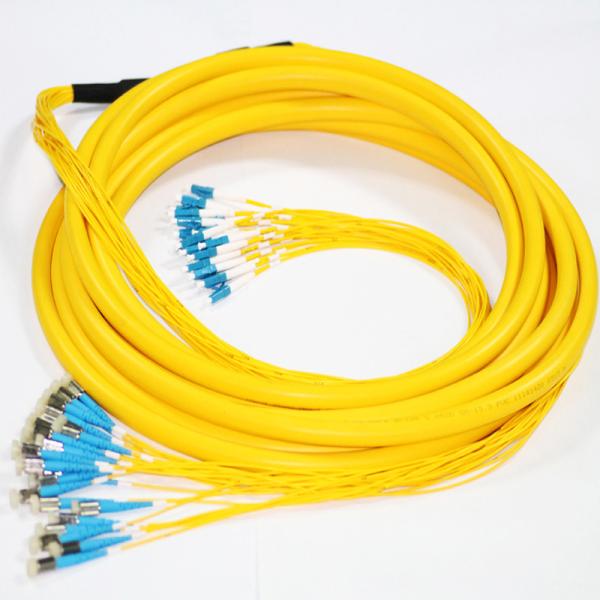

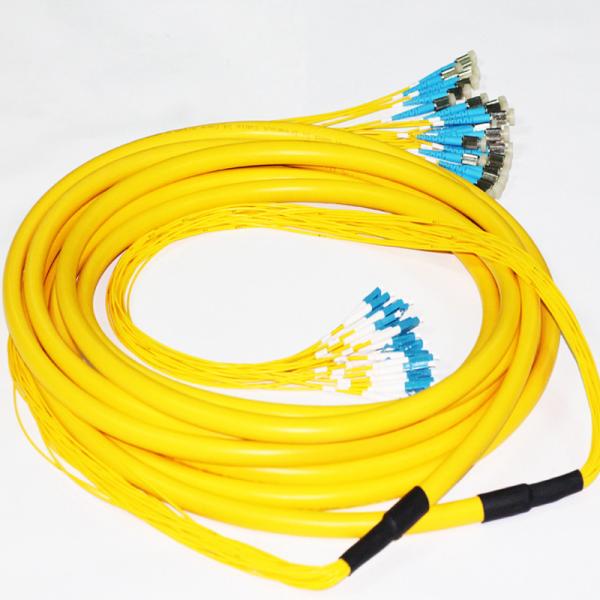

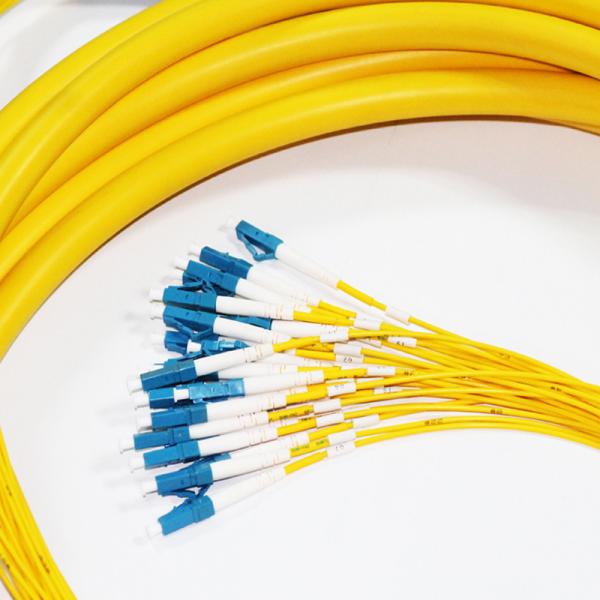

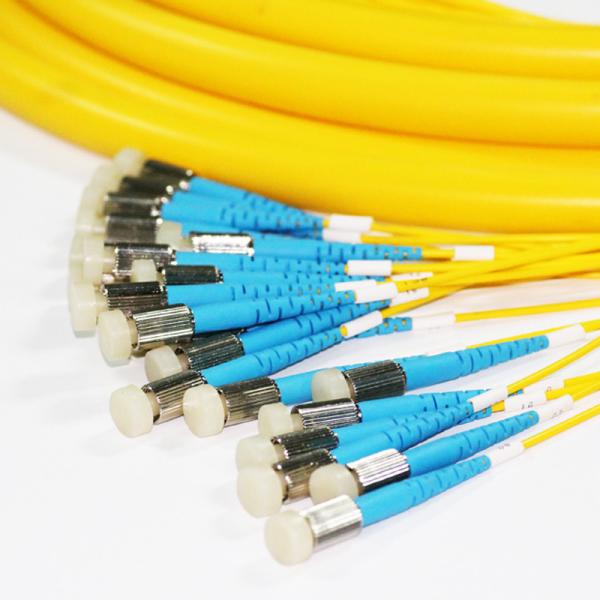

24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple
Specifications
Brand Name :
Hanagalaxy
Model Number :
HGYN-0588
Certification :
CE, SGS, FDA, UL
Place of Origin :
China
MOQ :
MOQ Saying is 10pcs
Price :
Negotiation By email or Phone Call
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000PCS Monthly
Delivery Time :
7-10 Business Days
Packaging Details :
1PCS Each Individual Quality PE Bag
Color :
Yellow
Cable OD :
10.5mm
Cable Jacket :
LSZH
Connector 1 :
D4
Connector 2 :
LC UPC
Fiber Count :
24 Cores
Insertion Loss :
0.35dB
Return Loss :
45dB
Description

24 Cores D4 to LC UPC Fiber Optic Pre-installed Multiple Patch Cables

Hanagalaxy engineers and manufactures a complete line of fiber cable assemblies which include fiber distribution assemblies, patch cords, pigtails, MPO cable assemblies, drop cable assemblies, reference test assemblies and more. These cable assemblies are factory-connectorized to produce unsurpassed connectivity and support a wide variety of applications—from simple duplex patch cords to complex cable assemblies.

(1) All assemblies are machine polished for the highest quality;

(2) Multimode and singlemode assemblies have an ensured performance by Optimized-Physical-Contact (OPC);

(3) All assemblies are factory tested and come with a test protocol.

Application


(1) All fiber interconnection;
(2) Telecom Distribution and Local Area Networks;
(3) FTTH and FTTx;
(4) Passive optical networks [ ATM, WDM, Ethernet ];
(5) Broadband, Cable TV(CATV);
(6) Offsets the Singlemode Laser launch from the center of a Multimode fiber;
(7) Available in a variety of connector combinations.

Product Classification

Regional Availability China
Product Type Fiber pigtail, multi-fiber
Color, boot A Beige
Color, connector A Beige
Jacket Color Yellow
Fiber Count 24
Nominal Diameter (mm) 10.5
Fiber Mode Singlemode
Fiber Type OS1
ROHS Compliant/Exempted

Cable Parameter

Category

Description

Specifications

Before cabling

After cabling

Attenuation @1550 nm

 ≤0.20 dB/km (max.) ≤0.22 dB/km (max.)

Attenuation @1625 nm

 ≤0.23dB/km ≤ 0.24 dB/km

Zero Dispersion Wavelength

≤1520 nm

Zero Dispersion Slope

 ≤ 0.084 ps/nm2·km

PMD Link value (M=20cables Q=0.01% )

maximum PMDQ

≤0.08 ps/√km

Cable Cutoff Wavelength (λcc)

 ≤1450 nm

Macro bending Loss

(1 turn; Ф32 mm) @1550 nm

(100 turns; Ф60 mm) @1625 nm

(100 turns; Ф50 mm) @1310 &@1625 nm

≤ 0.05 dB

≤ 0.05 dB

≤0.05 dB

Mode Field Diameter

 @1550 nm 9.6±0.5μm

Dimensional Specifications

Cladding Diameter

124.8 ±0.7μm

Core/clad concentricity error

 ≤0.6μm

Cladding Non-Circularity

 ≤1.0%

Proof stress off line

≥9.0 N

≥1.0 %

≥100 kpsi

24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple

24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple

Hangalaxy Exhibition Activities

24 Cores Pre Terminated Fiber Optic Cable D4 To LC UPC Pre Installed Multiple

Description

This Multimode, OM1, 62.5/125 Mode Conditioning Cable is used to convert a singlemode signal to a multimode fiber. It is used within Gigabit Ethernet 1000Base-LX (1300nm Wavelength) applications when replacing standard equipment-to-cable plant patch cord. It allows the offsetting of a single-mode fiber core with a corresponding multimode fiber and reduces Differential Mode Delay, or DMD, which can cause bit errors in the signal.
