Specifications
Model Number :
MS1S-DRT6
Place of Origin :
China
MOQ :
10
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MS1S-DRT6
Product Name :
400G QSFP-DD DR4 500m Optical Transceiver
SpeedRate :
400G
Distrance :
500m
Warranty :
12 Months
Application :
Datacenter
Description

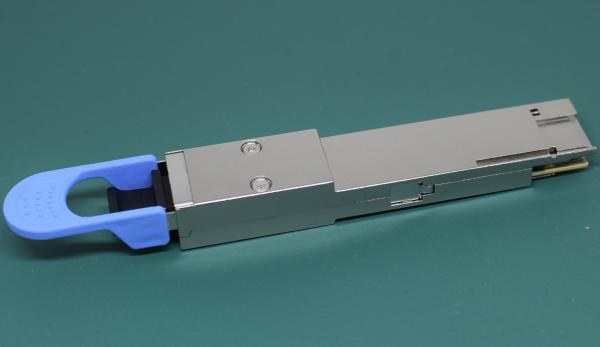

400G QSFP-DD DR4 500m Optical Transceiver Module

Features

· Compliant with IEEE802.3bs standard:

- 400GAUI-8 electrical interface

· Compliant with IEEE 802.3bs standard:
- 400GBASE-DR4 optical interface

· Compliant with QSFP-DD MSA HW Rev 5.0
Type 2 housing with MPO-12 connector

· Compliant with QSFP-DD CMIS Rev 4.0

· Supports 3dB channel insertion loss

· Maximum power consumption 12W

· Case operating temperature 0°C to 70°C

· Two wire serial Interface with digital diagnostic monitoring

· Complies with EU Directive 2011/65/EU
(RoHS compliant)

· Class 1 Laser

Applications

· 400GBASE-DR4

. 400G Ethernet

Standards

· QSFP-DD MSA

· IEEE802.3bs

· RoHS



Ordering Information

Part NumberProduct Description
MS1S-DRT6QSFP-DD, 400Gbps, DR4, MM, 500km, 0ºC ~ 70ºC,

Product Description

The 400G QSFP-400G-DR4 modules offer customers high-bandwidth transceiver modules targeting network interface cards (NICs) and smart NICs used in data centers, high-performance computing networks, and AI applications.


Absolute Maximum Ratings

ParameterSymbolMin.Max.UnitNotes
Storage TemperatureTS-4085ºC
Supply VoltageVCC-0.53.6V
Relative Humidity (non-condensing)RH595%
Control Input VoltageVI-0.3VCC+0.5V

Recommended Operating Conditions

ParameterSymbolMin.TypMax.UnitNotes
Operating Case TemperatureTOPR0-70ºC
Power Supply VoltageVCC3.1353.33.465V
Instantaneous peak current at hot plugICC_IP--4800mA
Sustained peak current at hot plugICC_SP--3960mA
Maximum Power DissipationPD--12W
Maximum Power Dissipation, Low Power ModePDLP--1.5W
Signalling Rate per LaneSRL-53.125-GBdPAM4
Two Wire Serial Interface Clock Rate---400kHz
Power Supply Noise Tolerance (10Hz - 10MHz)---66mV
Rx Differential Data Output Load--100-Ohm
Operating Distance-2-500m
