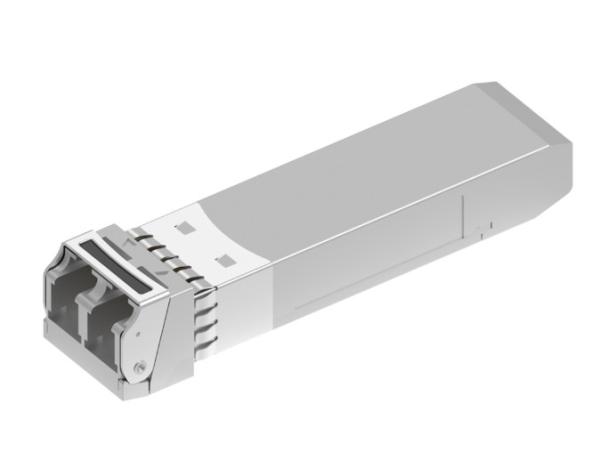

53G SFP56 850nm 70m Module Optical Transceiver Module
53G SFP56 850nm 70m Module Optical Transceiver Module
Specifications
Model Number :
MY1P-85T3
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MY1P-85T3
Product Name :
53G SFP56 850nm 70m Module
SpeedRate :
53G
Distrance :
70m
Interface :
LC duplex
Description

Features

· full-duplex transceiver modules

· Transmission data rate up to 53Gbps per channel

· 53Gbps PAM4 transmitter and PAM4 receiver

· 850nm VCSEL array

· PIN photo detector array

· Internal DSP circuits on both receiver and transmitter channels

· Power consumption <2W

· Hot Pluggable SFP form factor and Compliant with SFF-8431,SFF-8472 SFP56 MSA IEEE 802.3cd

· Maximum link length of 70m on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF with FEC

· Dual LC connector receptacle

· Built-in digital diagnostic functions

· 3.3V power supply voltage

· Operating case temperature 0°C to +70°C

Applications

· IEEE 802.3cd 50GBASE-SR

Standards

· SFF-8431

· SFF-8472

· SFP56 MSA

· IEEE 802.3cd

Ordering information

Part Number Product Description
MY1P-85T3 SFP56, 53G , 850nm, 70m, 0ºC ~ 70ºC

Description

· MYIP-85T3 is a single-Channel, Pluggable, Fiber-Optic SFP56 for 26.5625GBd PAM4 Ethernet Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 53.125Gbps up to 70 m using OM3 fiber or 100 m using OM4 fiber.

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Supply Voltage Vcc -0.3 3.6 V
Input Voltage Vin -0.3 Vcc+0.3 V
Storage Temperature Tst -20 85 ºC
Case Operating Temperature Top 0 70 ºC
Humidity(non-condensing) Rh 5 95 %

Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit
Supply Voltage Vcc 3.13 3.3 3.47 V
Operating Case temperature Tca 0 70 ºC
Data Rate Per Lane fd 26.5625 GBd
Humidity Rh 5 85 %
Power Dissipation Pm 2 W
