ER4 40km 40G QSFP+ Transceivers , Fiber Optic Transceiver Module
ER4 40km 40G QSFP+ Transceivers , Fiber Optic Transceiver Module
ER4 40km 40G QSFP+ Transceivers , Fiber Optic Transceiver Module
ER4 40km 40G QSFP+ Transceivers , Fiber Optic Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MLJ-1N-LR4ER
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Product Name :
40G ER4 40KM QSFP+ module
SpeedRate :
40G
TX :
4X10G DML Laser
RX :
4X10G PIN Receiver
Distrance :
40km
Warranty :
12 Months
Application :
Telecommunication
Interface :
LC duplex
Description

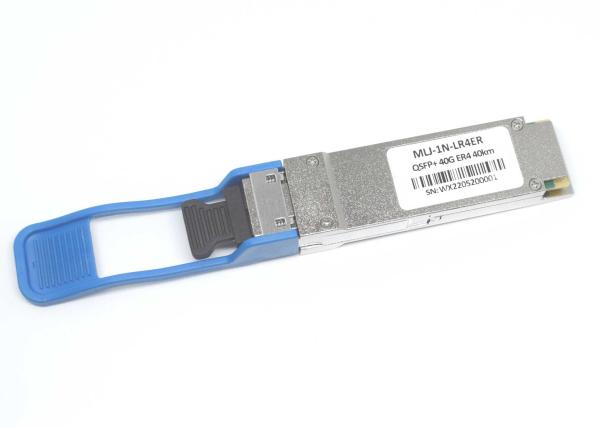

40G ER4 40km QSFP+ Module Optical Transceiver Module
Features

  • LC Duplex optical interface

  • Up to 40km transmission on single mode fiber (SMF)

  • Up to 10.3125Gb/s data rate per wavelength

  • Single 3.3V Power supply

  • Hot-Pluggable QSFP+ footprint

  • High sensitivity PIN/TIA optical receiver

  • Integrated 4-channel mux/demux for duplex LC operation

  • Operating case temperature: Commercial:0 to 70℃

  • RoHS 6 compliant

Applications
  • 40GBASE-ER4 Ethernet Links
  • Infiniband QDR interconnects
  • Client-side 40G Telecom connections
Standards
  • SFF-8679
  • SFF-8636
  • IEEE802.3bm
Ordering Information
Part. No Specifications
Pack Rate Tx P Rx S Top Reach Other
(Gbps) (nm) (dBm) (dBm) (℃) (km)
MLJ-1N-LR4ER QSFP+ 4x10.3125 1271 -2.7~4.5 APD <-19 0~70 40 RoHS
1291
1311
1331
