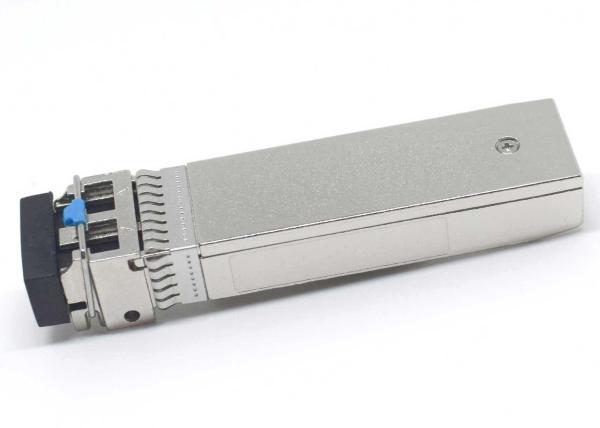

25G SFP28 LR 1310nm 20km Fiber Optical Transceivers For Telecommunication
25G SFP28 LR 1310nm 20km Fiber Optical Transceivers For Telecommunication
Specifications
Brand Name :
Optowix
Model Number :
MG1L-13TC/MG3L-13TC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Packaging Details :
ESD plastic case
Product Name :
25G SFP28 LR
SpeedRate :
25G/10G Dual Rate
TX :
25G 1310nm DFB laser
RX :
25G Pin Receiver
Distrance :
20km
Warranty :
36 Months
Application :
Telecommunication
Interface :
LC duplex
Description
25G LR SFP28 1310nm 20km Optical Transceiver Module
Features
  • LC Duplex optical interface
  • Up to 20km transmission distance
  • 24.33Gb/s to 25.78Gb/s data links
  • +3.3 V power supply
  • Low DC power consumption
  • Hot-Pluggable SFP28 footprint
  • High performance 1310 nm DML laser
  • High sensitivity PIN/TIA optical receiver
  • Single Mode operation
  • Low DC power consumption
  • BER < 5X10 -5
  • Built-in CDR
  • Case Operating temperature ranges: Industrial : -40 to 85ºC Commercial:0 to 70℃
  • RoHS 6 compliance
Applications
  • 25G BASE-LR Ethernet
  • CPRI 25G
Standards
  • SFF-8472
  • SFF-8431
  • SFF-8432
Ordering Information
Part. No Specifications
Pack Rate Tx P(dBm) Rx

S

(dBm)

Top

(℃)

 Reach Other

MG1L-13TC

 SFP28 25.78Gb/s 1310nm DML 0~5 PIN/TIA <-13.3 0~70 20km RoHS

MG3L-13TC

 SFP28 25.78Gb/s 1310nm DML 0~5 PIN/TIA <-13.3 -40~85 20km RoHS
