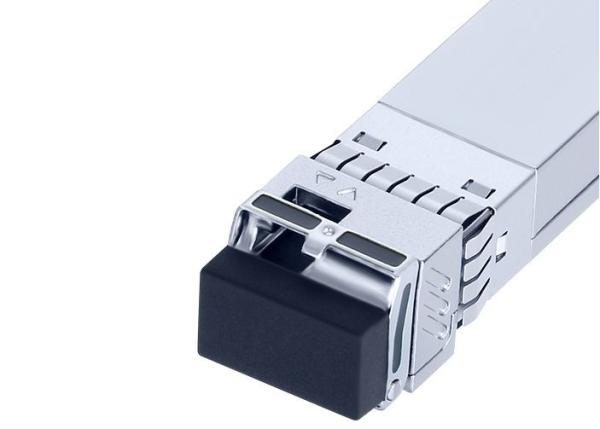

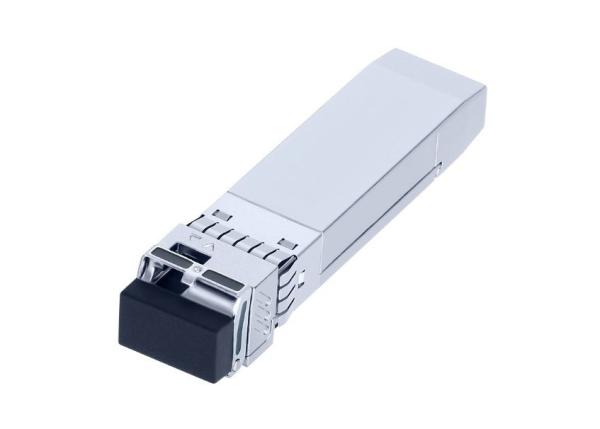

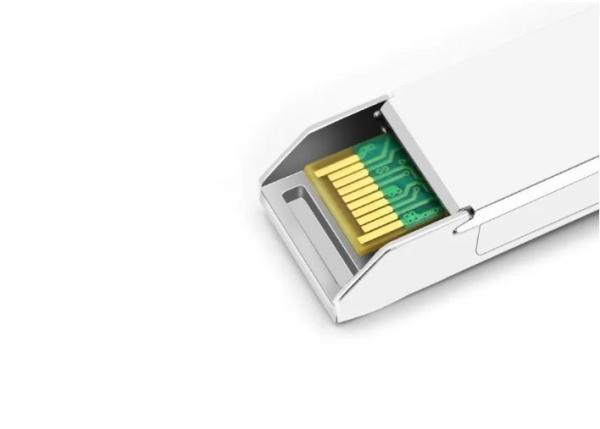

10G SFP+ BIDI Tx1330nmRx1270nm 20km 10G SFP+ Transceiver
10G SFP+ BIDI Tx1330nmRx1270nm 20km 10G SFP+ Transceiver
10G SFP+ BIDI Tx1330nmRx1270nm 20km 10G SFP+ Transceiver
10G SFP+ BIDI Tx1330nmRx1270nm 20km 10G SFP+ Transceiver
10G SFP+ BIDI Tx1330nmRx1270nm 20km 10G SFP+ Transceiver
10G SFP+ BIDI Tx1330nmRx1270nm 20km 10G SFP+ Transceiver
Specifications
Brand Name :
Optiwix
Model Number :
MF1H-BDTC-B32
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MF1H-BDTC-B32
Product Name :
10G SFP+ BIDI Tx1330nmRx1270nm 20km Module
SpeedRate :
10G
Distrance :
20km
Interface :
LC
Description

Features

· Supports up to 10.7Gbps bit rates

· Hot-pluggable SFP+ footprint

· 1270nm DFB laser and PIN photodiode, Up to 20km for SMF transmission

· Compliant with SFP+ MSA and SFF-8472 with single LC receptacle

· Single +3.3V power supply

· Real Time Digital Diagnostic Monitoring

· Operating case temperature:

Standard: 0 to +70°C

Applications

· 10Gbps Optical systems

· 10GBASE-LR at 10.3125Gbps

· 10GBASE-LW at 9.953Gbps

· LTE systems

· Other Optical links

Standards

· SFF-8472

· SFP+ MSA

Ordering information

Part Number Product Description
MF1H-BDTC-B32 SFP+, 10G, BIDI Tx1330nmRx1270nm, 20km, 0ºC ~ 70ºC

Description

· The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 20km transmission distance with SMF.

· The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

· The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Supply Voltage Vcc -0.5 4.5 V
Storage Temperature Range Ts -40 85 °C
Operating Humidity - 5 85

%

Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit
Case Temperature Tc 0 70 °C
Power Supply Voltage Vcc 3.135 3.3 3.465 V
Power Supply Current Icc 350 mA
Data Rate 1.0 10.3 10.7 Gbps
