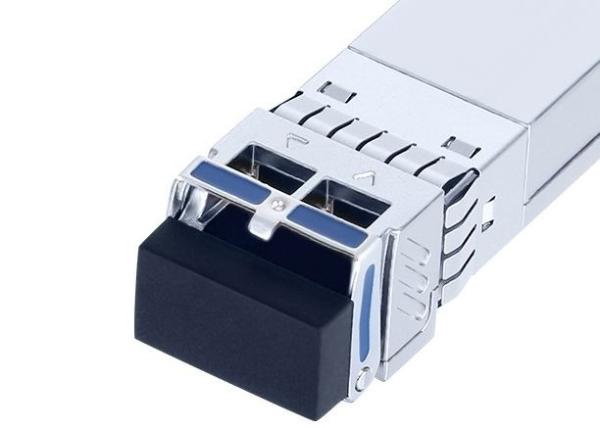

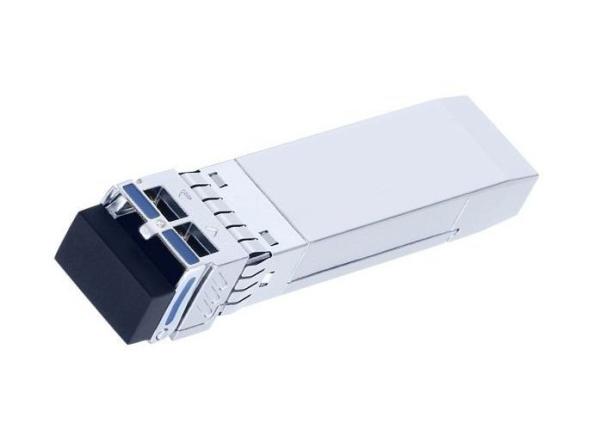

LC Interface Industrial Transceiver 25G SFP28 1310nm 10km
LC Interface Industrial Transceiver 25G SFP28 1310nm 10km
LC Interface Industrial Transceiver 25G SFP28 1310nm 10km
LC Interface Industrial Transceiver 25G SFP28 1310nm 10km
LC Interface Industrial Transceiver 25G SFP28 1310nm 10km
LC Interface Industrial Transceiver 25G SFP28 1310nm 10km
Specifications
Brand Name :
Optowix
Model Number :
MG3L-13TA
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MG3L-13TA
Product Name :
25G SFP28 1310nm 10km module
SpeedRate :
25G
Distrance :
10km
Interface :
LC
Description

25G SFP28 1310nm 10km Module Optical Transceiver Module

Features

· Operating data rate up to 25.78Gbps

· Rate Adaptation

· Up to 40km transmission distance

· High sensitivity APD photodiode and TIA

· LC single connector

· Hot pluggable 20pin connector

· Low power consumption <1.2 W

· Single +3.3V ±5% power supply

· Compliant with SFF-8472 & IEEE 802.3cc

· Operating temperature range:

Industrial: -40°C ~+85°C

Applications

· Data Center Backbone

· Ethernet Switches

· High-speed Servers

· High-performance Computing Clusters

· SAN, Routers, Hubs, Load Balancer

Standards

· SFF-8472

· IEEE 802.3cc

Ordering information

Part Number Product Description
MG3L-13TA SFP28, 25Gbps, 1310nm, 10km, -40ºC ~ 85ºC

Absolute Maximum Ratings

Parameter Symbol Min Typ Max Unit
Storage Temperature Ts -40 85 °C
Relative Humidity RH 0 85 %

Recommended Operating Conditions

Parameter Symbol Min Typ Max Unit
Operating Case Temperature Top -40 85 °C
Power Supply Voltage Vcc 3.15 3.3 3.45 V
Bit Rate BR 25.78125 Gbps
Bit Error Ratio BER 5*10-5
Max Supported Link Length L 10 km
