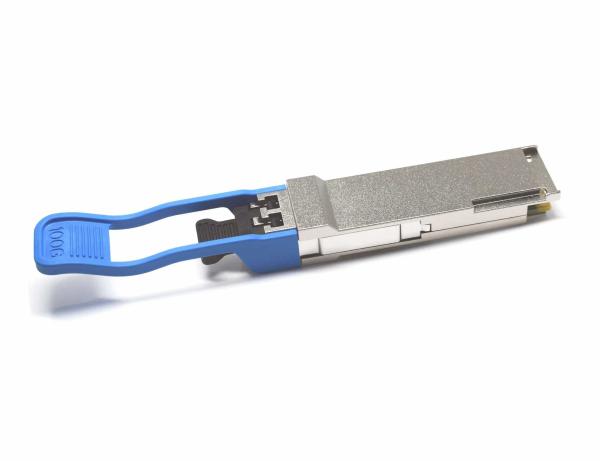

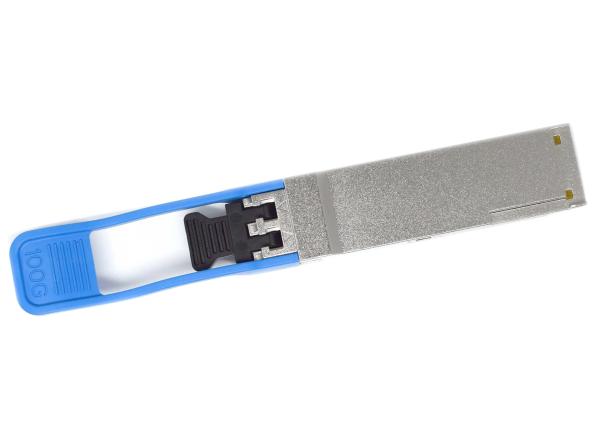

Single Mode Industrial Transceiver 100GB QSFP28 DML APD 40km
Single Mode Industrial Transceiver 100GB QSFP28 DML APD 40km
Single Mode Industrial Transceiver 100GB QSFP28 DML APD 40km
Single Mode Industrial Transceiver 100GB QSFP28 DML APD 40km
Specifications
Model Number :
MK3Q-ERTE-01
Certification :
CE
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MK3Q-ERTE-01
Product Name :
100G QSFP28 DML APD Single-mode 40kmOptical Transceiver Module
SpeedRate :
100G
Distrance :
40km
Interface :
LC duplex
Description

100G QSFP28 DML APD Single-Mode 40km Module Optical Transceiver Module

Features

· Support line rates from 103.125 Gb/s;

· Transmission data rate up to 25.78125Gbps per channel;

· Up to 40km transmission on single mode fiber;

· LAN WDM DML laser and APD;

· High speed I/O electrical interface (CAUI-4);

· I2C interface with integrated Digital Diagnostic monitoring;

· QSFP28 MSA package with duplex LC connector;

· Single +3.3V power supply;

Power dissipation

Industrial: <5.5W

· Temperature Range:

Industrial: -40°C ~+85°C

· Complies with EU Directive 2015/863/EU;

Applications

· 100GBASE-ER4 Ethernet

· 100G Datacom& Telecom connections

· 100G 4WDM-40

Standards

· IEEE 802.3

· SFF-8679

Ordering information

Part Number Product Description
MK3Q-ERTE-01 QSFP28, 100G, DML APD,Single-mode ,40km, -40ºC ~ 85ºC

Description

· MK3Q-ERTE-01 is designed for 40km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Absolute Maximum Ratings

Parameter Symbol Min. Max. Unit
Storage Temperature TS -40 85 °C
Maximum Supply Voltage VCC -0.5 3.6 V
Operating Relative Humidity RH 85 %

Recommended Operating Conditions

Parameter Symbol Min. Typ Max. Unit Notes
Operating Case Temperature Top -40 85 °C
Power Supply Voltage VCC 3.13 3.3 3.47 V
Power Supply Current ICC 1.67 A
Maximum Power Dissipation PD 5.5 W
Aggregate Bit Rate BRAVE 103.125 Gb/s
Lane Bit Rate BRLANE 25.78125 Gb/s
Transmission Distance TD 40 km
Coupled fiber Single mode fiber 9/125um SMF
