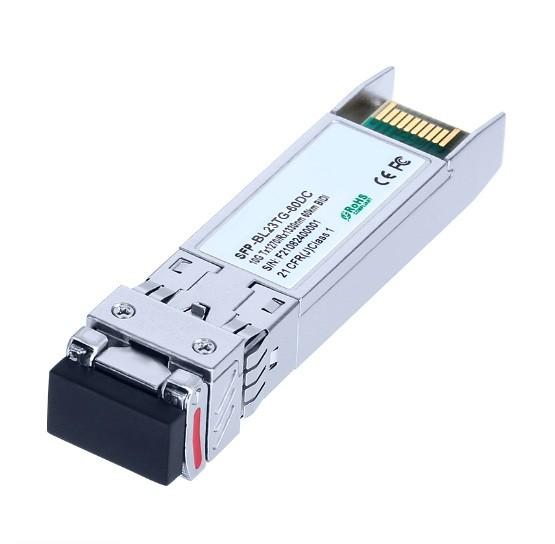

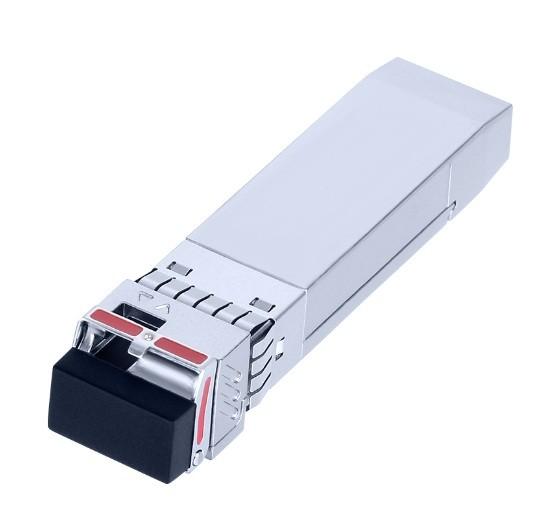

10G SFP+ BIDI Tx1270nmRx1330nm 60km Transceiver Fiber Optic Transceiver Module
10G SFP+ BIDI Tx1270nmRx1330nm 60km Transceiver Fiber Optic Transceiver Module
10G SFP+ BIDI Tx1270nmRx1330nm 60km Transceiver Fiber Optic Transceiver Module
10G SFP+ BIDI Tx1270nmRx1330nm 60km Transceiver Fiber Optic Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MF3H-BDTF-B23
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MF3H-BDTF-B23
Product Name :
10.3Gbps SFP+ BIDI Transceiver, Single Mode, Module
SpeedRate :
10G
Distrance :
60km
Interface :
Single LC
Wavelength :
Tx1270nm / Rx1330nm
Environment :
-40ºC ~ 85ºC
Description

10.3Gbps SFP+ Transceiver, Single Mode, 60km Reach

Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • 1270nm DFB laser and APD photodiode, Up to 60km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature: Industrial: -40 to +85°C​

Applications

  • 10Gbps Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information
Part Number Product Description
MF3H-BDTF-B23 SFP+ 10G BIDI Tx1270nm Rx1330nm 60km , -40ºC ~ 85ºC

Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 60km transmission distance with SMF.
  • The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
10G SFP+ BIDI Tx1270nmRx1330nm 60km Transceiver Fiber Optic Transceiver Module

Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Operating Case Tc -40 +85 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc 450 mA
Data Rate 1.0 10.3 10.7 Gbps

Optical and Electrical Characteristics
10G SFP+ BIDI Tx1270nmRx1330nm 60km Transceiver Fiber Optic Transceiver Module
