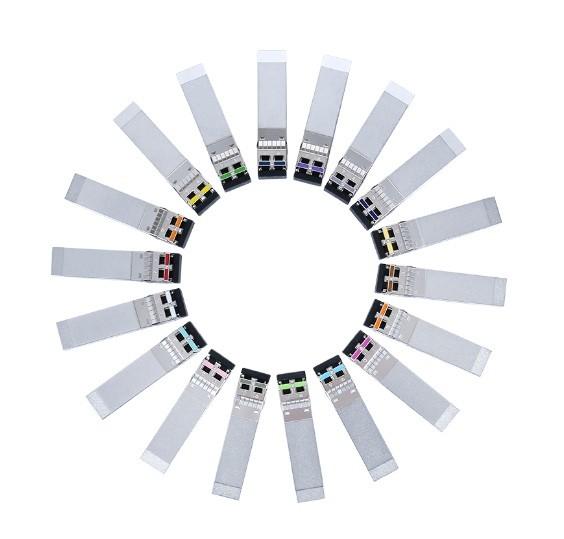

10G SFP+ CWDM 1270nm~1390nm 40km Transceiver Fiber Optic Transceiver Module
10G SFP+ CWDM 1270nm~1390nm 40km Transceiver Fiber Optic Transceiver Module
10G SFP+ CWDM 1270nm~1390nm 40km Transceiver Fiber Optic Transceiver Module
10G SFP+ CWDM 1270nm~1390nm 40km Transceiver Fiber Optic Transceiver Module
Specifications
Brand Name :
Optowix
Model Number :
MF3H-CWTE-Cxx
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10Kpcs
Delivery Time :
5-8 working days
Packaging Details :
ESD plastic case
Optowix PN :
MF3H-CWTE-Cxx
Product Name :
10.3Gbps SFP+ CWDM Transceiver, Single Mode, 40km Reach, Module
SpeedRate :
10G
Distrance :
40km
Interface :
duplex LC
Wavelength :
CWDM, 1270nm~1390nm
Environment :
-40ºC ~ +85ºC
Description

10.3Gbps SFP+ CWDM Transceiver, Single Mode, 40km Reach

Features
  • Supports up to 10.7Gbps bit rates
  • Hot-pluggable SFP+ footprint
  • CWDM DFB laser and PIN photodiode, Up to 40km for SMF transmission
  • Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
  • Compatible with RoHS
  • Single +3.3V power supply
  • Real Time Digital Diagnostic Monitoring
  • Operating case temperature: Industrial: -40 to +85°C​

Applications

  • 10Gbps CWDM Optical systems
  • 10GBASE-LR at 10.3125Gbps
  • 10GBASE-LW at 9.953Gbps
  • LTE systems
  • Other Optical links​
Standards
  • SFP+ MSA
  • SFF-8472
Ordering Information
Part Number Product Description
MF3H-CWTE-Cxx SFP+ 10G CWDM 1270nm~1390nm 40km -40ºC ~ +85ºC,
λC Wavelength Guide
Code λC Unit Code λC Unit Code λC Unit Code λC Unit
C01 1270 nm C02 1290 nm C03 1310 nm C04 1330 nm
C05 1350 nm C06 1370 nm C07 1390 nm


Description

  • The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 40km transmission distance with SMF.
  • The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
  • The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
Absolute Maximum Ratings
10G SFP+ CWDM 1270nm~1390nm 40km Transceiver Fiber Optic Transceiver Module

Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit
Operating Case Tc -40 +85 °C
Power Supply Voltage Vcc 3.135 3.30 3.465 V
Power Supply Current Icc 320 mA
Data Rate 8.0 10.3 10.7 Gbps

Optical and Electrical Characteristics
10G SFP+ CWDM 1270nm~1390nm 40km Transceiver Fiber Optic Transceiver Module
