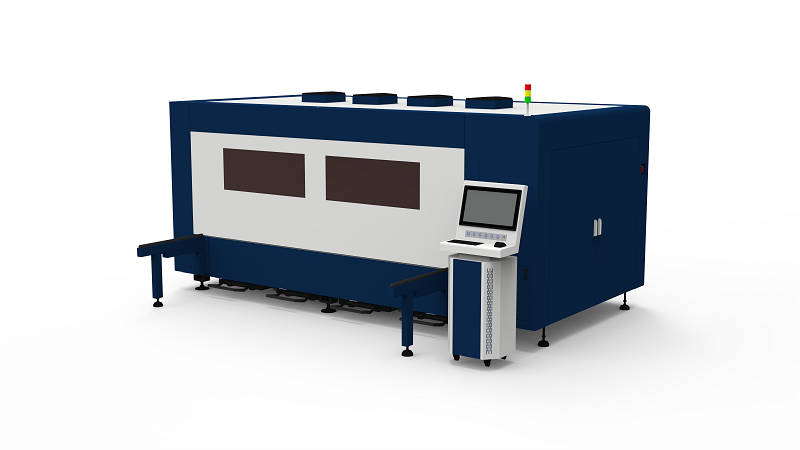

QH-3015FC Sheet Metal cutting machine Dual platform
QH-3015FC Sheet Metal cutting machine Dual platform
Specifications
Brand Name :
QiHai
Model Number :
QH-3015F
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90set/mon
Delivery Time :
45-60 work days
Packaging Details :
wooden box
Product :
Sheet Metal Laser Cutting Machine
Processing Area :
3000 * 1500mm
Laser Power :
1500W-20000W
X/Y-axis Positioning Accuracy :
0.03mm
Frequency :
50Hz
Voltage :
380V
Laser Generator Classification :
Fiber Laser Generator
Transmission :
Double rack&pinion transmission and servo drive
Working Environment :
0-40℃, Humidity ≤80%
Graphic Format :
PLT, DXF
Lathe Structure :
Tube Sheet Welding
Description
QH-3015FC Sheet Metal cutting machine Dual platform

Description
Dual Platform Sheet Metal Cutting Machine: The QH-3015FC is a high-efficiency professional sheet metal cutting equipment, featuring a core Dual Platform design that redefines production efficiency for sheet metal processing. The dual platform structure enables alternate loading and unloading of workpieces while cutting operations are in progress, completely eliminating downtime between processing steps and significantly boosting overall productivity. Equipped with a flexible laser power range of 1500W-20KW, it can adapt to cutting various thicknesses of sheet metal, from thin to thick materials, matching the high-efficiency advantage of the dual platform.

Quick Detail
Dual Platform Configuration (Core Feature): The machine’s dual alternating platforms are designed for continuous production, eliminating downtime caused by workpiece replacement and improving batch processing efficiency.
Dual Platform Compatibility with 3000×1500mm Processing Area: The medium-to-large processing area matches the dual platform design, enabling one-time processing of medium-to-large size sheet metal workpieces on either platform.
800kg Maximum Loading Weight for Dual Platforms: Both platforms have strong load-bearing capacity, supporting stable processing of heavy sheet metal without affecting cutting precision.
Laser Power Range of 1500W-20KW: Flexible power output adapts to thin and thick sheet metal cutting, matching the dual platform’s continuous production needs.

Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 1800kg
Overall Dimensions 4800 * 2350 * 1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz


QH-3015FC Sheet Metal cutting machine Dual platform

Advantage

Dual Platform for Maximized Production Efficiency: The biggest advantage is the dual alternating platform design, which eliminates non-cutting time for loading/unloading, allowing continuous 24-hour cutting operations and greatly improving batch production capacity.
Dual Platform for Reduced Labor Intensity: Operators can arrange workpiece loading/unloading in a relaxed rhythm without rushing to match cutting speed, reducing labor pressure while ensuring production efficiency.
Dual Platform Ensures Processing Continuity: Compared with single-platform machines, there is no need to stop cutting to replace workpieces, avoiding production interruptions and reducing material waste caused by frequent startups and shutdowns.
Flexible Laser Power (1500W-20KW) Matches Dual Platform Versatility: The wide power range enables the dual platforms to process various sheet metal materials and thicknesses, expanding the machine’s application scope while maintaining high efficiency.
High Precision & Stability on Dual Platforms: ±0.03mm high positioning accuracy and stable transmission system ensure that both platforms deliver consistent cutting quality, avoiding errors caused by platform switching.
