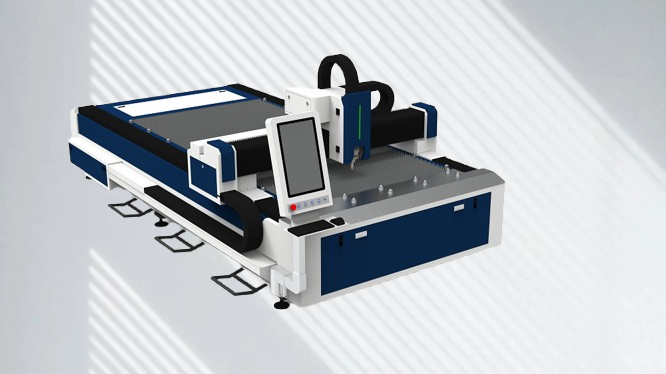

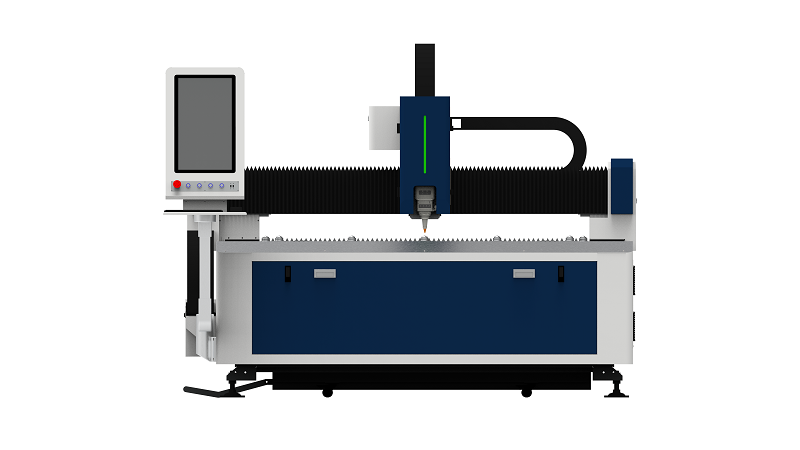

QH - 3015F Single Platform Sheet Metal Laser Cutting Machine 3000W
QH - 3015F Single Platform Sheet Metal Laser Cutting Machine 3000W
Specifications
Brand Name :
QiHai
Model Number :
QH-3015F
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90set/mon
Delivery Time :
45-60 work days
Packaging Details :
wooden box
Product :
Sheet Metal Laser Cutting Machine
Processing Area :
3000 * 1500mm
X/Y-axis Positioning Accuracy :
0.03mm
Frequency :
50Hz
Voltage :
380V
Laser Generator Classification :
Fiber Laser Generator
Transmission :
Double rack&pinion transmission and servo drive
Working Environment :
0-40℃, Humidity ≤80%
Graphic Format :
PLT, DXF
Lathe Structure :
Tube Sheet Welding
Description
QH - 3015F Single Platform Sheet Metal Laser Cutting Machine 3000W QH - 3015F Single Platform Sheet Metal Laser Cutting Machine 3000W
QH - 3015F Sheet Metal Laser Cutting Machine


Description

The QH-3015F Single Platform Sheet Metal Laser Cutting Machine (3000W) is a cost-effective, best-selling industrial solution tailored for versatile sheet metal processing needs. As a high-demand model, it balances reliable performance with affordability, featuring a 3000×1500mm processing area and 800kg maximum loading weight—suitable for small to medium-batch production across diverse sectors. Equipped with a 3000W laser (within the 1500W-20KW adjustable range), it delivers consistent cuts on materials like carbon steel, stainless steel, and aluminum, while its ±0.03mm X/Y-axis positioning/repositioning accuracy ensures burr-free precision. With a compact footprint (4800×2350×1900mm) and 1600kg machine weight, it adapts to various workshop spaces, and the user-friendly design simplifies operation—making it an ideal choice for businesses seeking high cost-performance without compromising efficiency. It operates on a standard 380V/50Hz power supply, paired with a double rack & pinion servo transmission system for stable, 100m/min maximum linkage speed and 1.0G acceleration, meeting daily processing demands seamlessly.


Quick Detail

Core Selling Point: Economical best-seller with high cost-performance; user-friendly operation, fits multiple workshop spaces.​

Key Specs: 3000×1500mm processing area, 800kg max loading; 3000W laser (1500W-20KW range), ±0.03mm precision.​

Efficiency & Adaptability: 100m/min max speed, 1.0G acceleration; 4800×2350×1900mm compact size; 380V/50Hz universal power.


Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 1600kg
Overall Dimensions 4800 * 2350 * 1900mm
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz


Advantage

High-Speed & High-Precision Processing: Adopting a dual-drive gantry structure , imported precision transmission components, and an independent numerical control system , it achieves a cutting speed of up to 40 m/min for 1mm stainless steel and 85-100 m/min for 0.5mm stainless steel. ​

Economical & Energy-Saving Performance: With a photoelectric conversion efficiency of 70%-80% , its power consumption is only 20%-30% of traditional CO₂ equipment. ​

Strong Adaptability: Boasting a standard processing area of 3000×1500mm, it can cut carbon steel, stainless steel, aluminum, copper (highly reflective materials ), titanium alloy, and other special metals, with a thickness range of 0.5mm to 25mm (depending on power configuration). ​

Low-Consumption & Maintenance-Free Design: Fiber optic transmission eliminates the need for optical path adjustment and reflective lens replacement.
