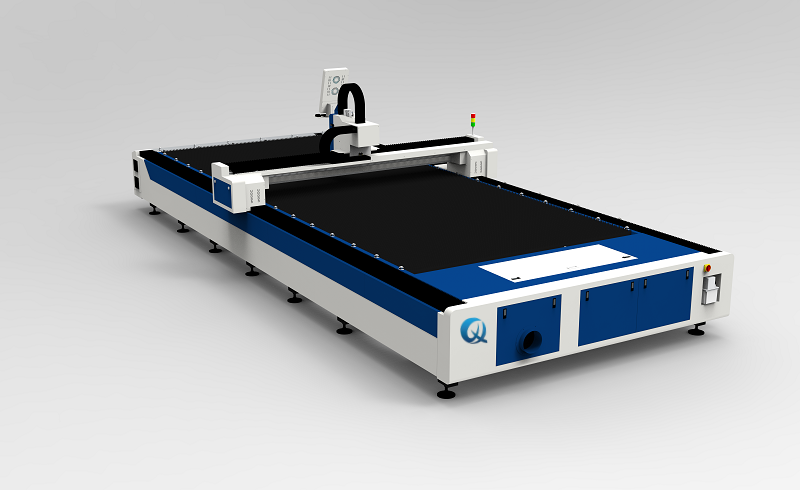

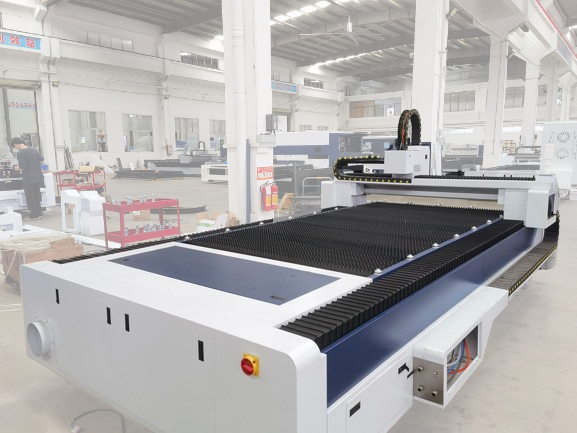

QH-6025F High Power Sheet Metal Laser Cutting Machine
QH-6025F High Power Sheet Metal Laser Cutting Machine
Specifications
Brand Name :
QIHAI
Model Number :
QH-6025F
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic, container
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Application :
Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Cutting speed :
0-40000mm/min,20m/min,600mm/s,000mm/min,150000-200000mm/min
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas
Cooling system :
water cooling, Industry water chiller
Keyword :
laser cutting machine price,6kw fiber laser cutting machine
Description
QH-6025F High Power Sheet Metal Laser Cutting Machine QH-6025F High Power Sheet Metal Laser Cutting Machine
QH-6025F High Power Sheet Metal Laser Cutting Machine
Description
The QH-6025F is a heavy-duty sheet metal processing solution engineered around 6000W-20KW high laser power—designed to tackle thick, high-strength metal cutting tasks for industries like heavy machinery, large steel structures, and energy equipment. Its core strength lies in balancing ultra-high power with large-format processing: a 6000×2500mm workbench supports up to 1000kg maximum loading weight, enabling one-stop cutting of oversized thick plates (e.g., 6m-long, 30mm-thick carbon steel sheets) without segmentation.

Quick details

High Power Core: 6000W-20KW adjustable power for 10-30mm thick metals (carbon steel/stainless steel); maintains ±0.03mm axis accuracy under high-power loads.​

Key Specs: 6000×2500mm large area (1000kg max loading), double rack & pinion servo transmission, 100m/min speed + 1.0G acceleration for efficient thick-plate cutting.​

Fit: Heavy machinery/energy equipment; 380V/50Hz compatible with industrial high-power grids.


Technical Specifications
Processing Area 6000 * 2500mm
Maximum Loading Weight 1000kg
Machine Weight 3700kg
Overall Dimensions 8000×2960×1900mm
Laser Power Range 6000W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz



Advantage​

High Power Enables Thick-Material Versatility: The 6000W-20KW power range eliminates the need for multiple machines for different thick metals—6000W cuts 10-20mm stainless steel (common in energy equipment), while 20KW handles 25-30mm high-strength carbon steel (used in heavy machinery frames). This covers 90% of thick-sheet needs in heavy industries, reducing equipment investment by 40%-50%.​

Faster Thick-Plate Cutting Efficiency: High power directly boosts thick-material cutting speed—e.g., 20KW cuts 25mm carbon steel at 8-10m/min, 3x faster than 3000W machines (2-3m/min for the same thickness). Combined with 100m/min linkage speed for rapid workpiece positioning, it shortens production cycles for large thick-plate batches by 35%-45%.​

Stable High-Power Precision: The 3700kg robust frame and double rack & pinion servo transmission prevent vibration-induced errors during high-power cutting. Unlike lighter machines that suffer accuracy drift when using ≥10KW power, the QH-6025F retains ±0.03mm axis precision even at 20KW—ensuring consistent cut quality for thick-plate components (e.g., heavy machinery joints) where precision directly impacts structural safety.
