Economical Single Platform Fiber Laser Cutting Machine 1500W-20000W
Economical Single Platform Fiber Laser Cutting Machine 1500W-20000W
Economical Single Platform Fiber Laser Cutting Machine 1500W-20000W
Economical Single Platform Fiber Laser Cutting Machine 1500W-20000W
Specifications
Brand Name :
QiHai
Model Number :
QH-3015F
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90set/mon
Delivery Time :
45-60 work days
Packaging Details :
wooden box
Product :
Sheet Metal Laser Cutting Machine
Processing Area :
3000 * 1500mm
Laser Power :
1500W-20000W
X/Y-axis Positioning Accuracy :
0.03mm
Frequency :
50Hz
Voltage :
380V
Laser Generator Classification :
Fiber Laser Generator
Transmission :
Double rack&pinion transmission and servo drive
Working Environment :
0-40℃, Humidity ≤80%
Graphic Format :
PLT, DXF
Lathe Structure :
Tube Sheet Welding
Description
Economical Single Platform Fiber Laser Cutting Machine 1500W-20000W Economical Single Platform Fiber Laser Cutting Machine 1500W-20000W

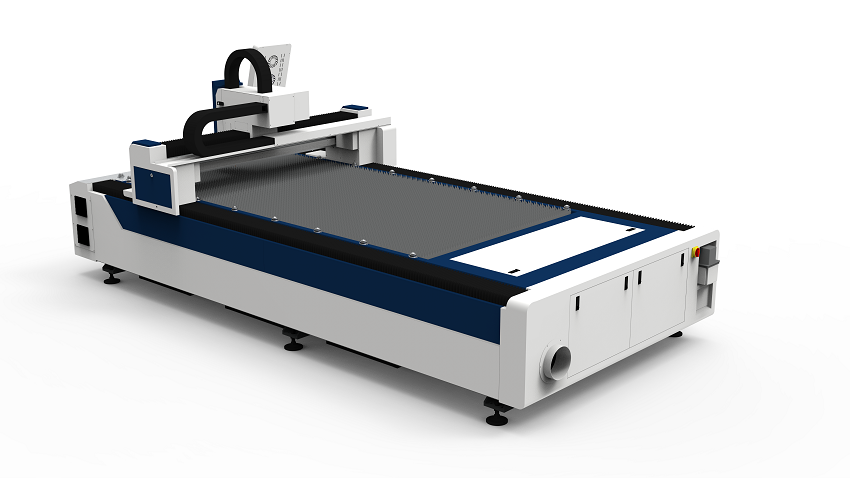

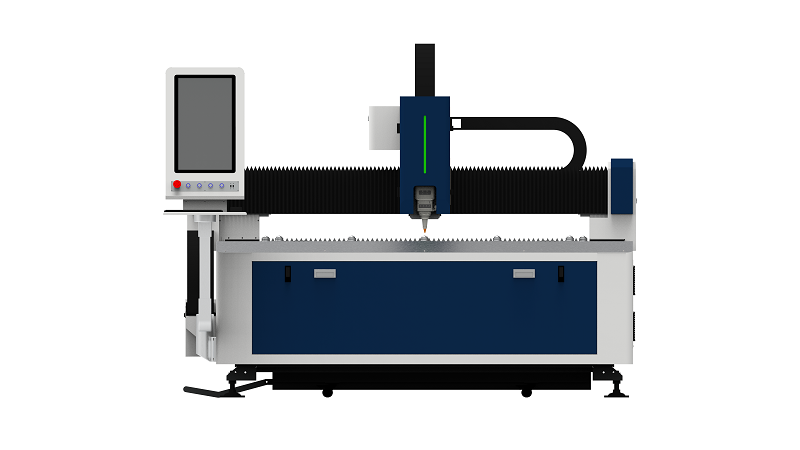

QH - 3015F Economical Single-platform Fiber Laser Cutting Machine
Description
The QH-3015F is a cost-effective, user-friendly fiber laser cutting solution designed for medium-volume sheet metal processing, featuring a streamlined single-platform structure that balances performance and affordability. It offers a 3000×1500mm processing area and 800kg maximum loading weight, suitable for common workpieces like hardware parts, electrical enclosures, and small structural components. Equipped with a 1500W-20KW adjustable laser power range, it handles carbon steel, stainless steel, and aluminum (0.5mm-25mm thickness) with ease. The double rack & pinion servo transmission ensures ±0.03mm X/Y-axis positioning and repositioning accuracy, while its 100m/min maximum linkage speed and 1.0G acceleration maintain efficient processing. Weighing 1600kg with overall dimensions of 4800×2350×1900mm, it fits compact workshop spaces and operates on a standard 380V/50Hz power supply, making it a practical choice for small-to-medium manufacturers.
Quick Detail

Core Traits: Economical single-platform design (lowers initial investment & maintenance costs); no complex multi-platform switching, simplifying operation.​

Key Specs: 3000×1500mm processing area, 800kg max loading; ±0.03mm precision, 100m/min speed, 1500W-20KW laser power.​

Fit: Ideal for small-to-medium batches; 4800×2350×1900mm compact size saves workshop space; 380V/50Hz universal power.

Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 1600kg
Overall Dimensions 4800 * 2350 * 1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

Cost Efficiency from Single-Platform Design: The simplified single-platform structure reduces manufacturing and maintenance costs compared to multi-platform models—lowering initial investment by 15%-20% and annual maintenance expenses by 25% (no need for platform-switching components). It also cuts operator training time, as the straightforward layout is easy to master.​

Space-Saving & Flexible Deployment: With a compact 4800×2350×1900mm footprint and 1600kg weight, the single-platform design fits limited workshop spaces, eliminating the need for extra area for platform storage or movement. This flexibility allows quick integration into existing production lines without major layout adjustments.​

Balanced Performance & Affordability: Despite its economical positioning, it retains high precision (±0.03mm) and speed (100m/min) via the double rack & pinion servo transmission, ensuring consistent cutting quality for common materials. The 1500W-20KW power range adapts to diverse thicknesses, avoiding the need for multiple machines and further enhancing cost-effectiveness for small-to-medium manufacturers.
