Specifications
Brand Name :
QiHai
Model Number :
QH-3015F
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90set/mon
Delivery Time :
45-60 work days
Packaging Details :
wooden box
Product :
Sheet Metal Laser Cutting Machine
Processing Area :
3000 * 1500mm
Laser Power :
1500W-20000W
X/Y-axis Positioning Accuracy :
0.03mm
Frequency :
50Hz
Voltage :
380V
Laser Generator Classification :
Fiber Laser Generator
Transmission :
Double rack&pinion transmission and servo drive
Working Environment :
0-40℃, Humidity ≤80%
Graphic Format :
PLT, DXF
Description

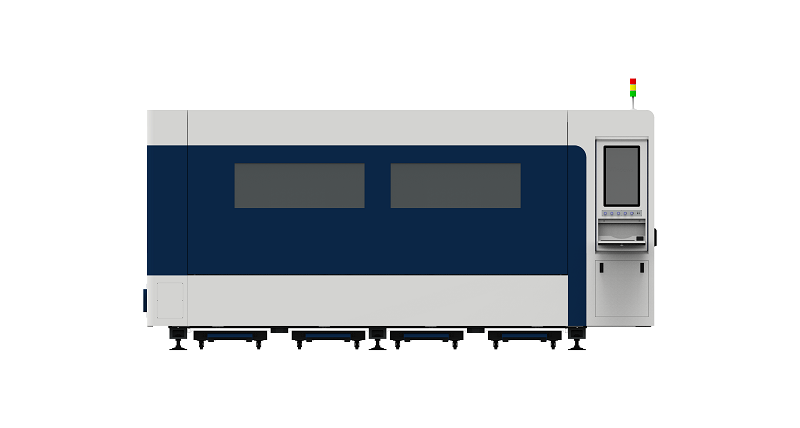

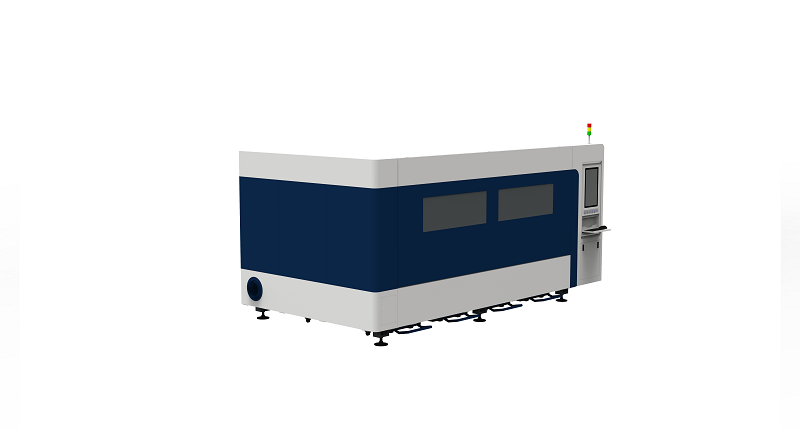

1500W-20000W Sheet Metal Laser Cutting Machine Single Platform Fully Enclosed1500W-20000W Sheet Metal Laser Cutting Machine Single Platform Fully Enclosed
QH-3015FC Single platform fully Encloesd Sheet Metal cutting machine
Description
The QH-3015FC is a single-platform fully enclosed sheet metal laser cutting machine designed for safe, efficient, and precise general-purpose sheet metal processing. Its integrated single-platform structure simplifies workpiece loading/unloading, while the full enclosure ensures comprehensive protection during operation—combining these with high-performance fiber laser technology to meet diverse industrial needs. It features a 3000×1500mm processing area and 800kg maximum loading weight, suitable for cutting carbon steel, stainless steel, aluminum, and other metals.
Quick Detail

Single Platform Fully Enclosed Core: Single-platform design for easy workpiece handling; full enclosure blocks laser radiation, dust, and noise—meets industrial safety standards.

Key Specs: 3000×1500mm processing area, 800kg max loading, ±0.03mm dual-axis accuracy, 100m/min max linkage speed, 1500W-20KW laser power.

Fit: Workshops prioritizing safety (full enclosure) and operational simplicity (single platform); suits medium-batch carbon steel/stainless steel cutting.

Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 1800kg
Overall Dimensions 4800 * 2350 * 1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

Single Platform Simplifies Operation & Ensures Precision: The single-platform structure eliminates complex multi-platform switching, reducing workpiece positioning errors caused by platform transfer—paired with 800kg uniform loading capacity, it maintains stable support for large sheets, reinforcing the machine’s ±0.03mm positioning accuracy. Additionally, the single-platform design streamlines maintenance (e.g., easy access to cutting zones for cleaning) and lowers learning costs for operators, cutting setup time by 15%-20% compared to multi-platform models.

Fully Enclosed Design Enhances Safety & Environmental Control: The full enclosure provides 360° protection against laser radiation (complying with Class IV laser safety standards) and prevents metal dust, smoke, and noise from escaping—reducing workplace noise levels by 25%-30% and eliminating dust pollution. This not only safeguards operator health but also protects surrounding equipment from dust accumulation, extending the service life of workshop machinery. Unlike open-type cutters, it avoids accidental laser exposure risks, making it suitable for workshops with strict safety regulations.

Single Platform + Enclosure Synergy Boosts Efficiency: The single platform enables continuous loading/unloading (with optional external material racks for seamless workflow) while the enclosure maintains a stable internal cutting environment (reducing air turbulence that affects laser focus). This synergy ensures consistent cutting quality even during long-hour operation, and the 100m/min maximum linkage speed paired with the machine’s structural stability allows for high-efficiency processing without compromising safety—ideal for balancing productivity and workplace protection.
