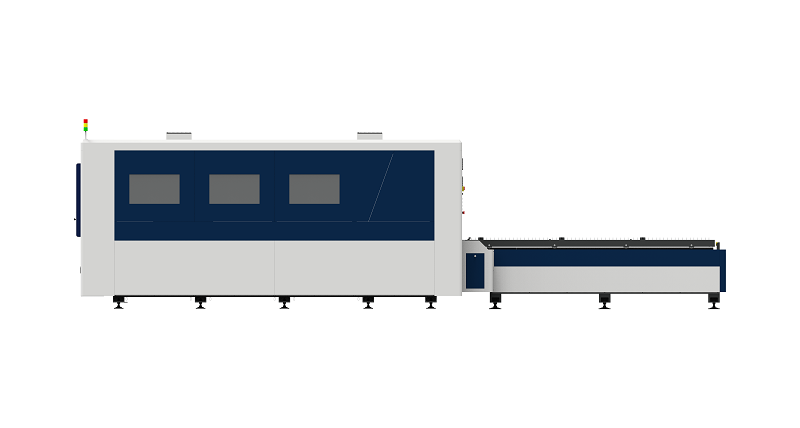

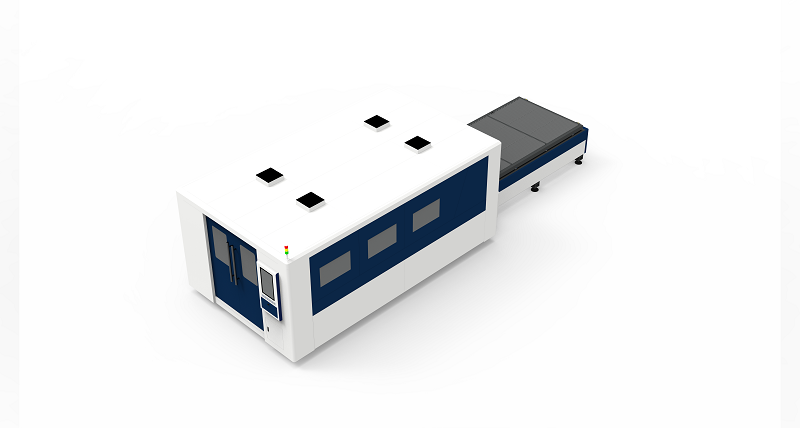

High Power Dual Platform Enclosed Type Sheet Laser Cutting Machine 6000W-20KW
High Power Dual Platform Enclosed Type Sheet Laser Cutting Machine 6000W-20KW
Specifications
Brand Name :
QIHAI
Model Number :
QH - 3015FB
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic, container
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Warranty :
1 Year
Function :
Cutting Metal Materials,Wifi wireless control,Cutting Metal sheet tube
Cooling system :
water cooling
Keyword :
laser cutting machine price,6kw fiber laser cutting machine
Description
High Power Dual Platform Enclosed Type Sheet Laser Cutting Machine 6000W-20KW High Power Dual Platform Enclosed Type Sheet Laser Cutting Machine 6000W-20KW
QH - 3015FB High-power Dual-platform Enclosed type Sheet Laser Cutting Machine 6000W - 20KW
Description
The QH-3015FB is a high-performance sheet laser cutting solution engineered for high-volume, heavy-duty sheet metal processing, integrating high-power fiber laser technology, dual-platform efficiency, and an enclosed safety structure. It offers a 6000×1500mm processing area and a robust 1000kg maximum loading weight, capable of handling large or thick workpieces like structural steel components, heavy machinery parts, and thick-walled enclosures. With a high-power range of 6000W-20KW, it seamlessly cuts thick metals (up to 25mm+ for carbon steel, depending on power) while maintaining precision via double rack & pinion servo transmission—delivering ±0.03mm X/Y-axis positioning and repositioning accuracy. Its 1.0G maximum linkage acceleration and 100m/min maximum linkage speed ensure efficient production, while the enclosed design enhances safety and dust control. Weighing 3500kg with overall dimensions of 8500×2280×2150mm, it suits industrial workshops and operates on a standard 380V/50Hz power supply, ideal for heavy manufacturing sectors like construction machinery, shipbuilding, and energy equipment production.
Quick details

High-Power Core: 6000W-20KW range enables cutting of thick metals (25mm+ carbon steel) with fast speed—reduces thick-material processing time by 30%-40% vs. standard-power models.

Key Specs: 3000×1500mm area, 1000kg max loading; ±0.03mm precision, 100m/min speed; dual-platform + enclosed structure.

Fit: Heavy-duty processing (construction machinery, shipbuilding); high-power ensures clean cuts on thick materials; enclosed design meets industrial safety standards.

Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 1000kg
Machine Weight 3500kg
Overall Dimensions 8500×2280×2150mm
Laser Power Range 6000W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

High-Power-Driven Thick-Material Efficiency: The 6000W-20KW adjustable laser power easily penetrates thick metals (e.g., 20mm stainless steel, 25mm carbon steel) with minimal heat-affected zone, producing smooth, burr-free cuts that eliminate secondary finishing. Compared to lower-power machines, it cuts 20mm carbon steel up to 2x faster, drastically boosting throughput for heavy-duty projects.

Dual-Platform Synergy with High Power: The dual-platform design enables simultaneous loading/unloading while the high-power laser processes workpieces—eliminating downtime between batches. This combination is critical for high-volume thick-material production, as the high-power laser’s fast cutting speed is fully utilized without workflow interruptions, increasing overall productivity by 50% vs. single-platform high-power models.

Enclosed Safety & Stability for High-Power Operation: The enclosed structure contains the intense heat and light generated by high-power laser cutting, protecting operators from radiation and reducing noise. It also maintains a clean, dust-free processing environment, which preserves the high-power laser’s optical components—extending their lifespan by 20% and lowering maintenance costs. Additionally, the machine’s 3500kg sturdy build ensures stable operation even at maximum power, preventing vibration-induced precision loss and ensuring consistent cut quality.
