Beveling Cutting Large Format Sheet Metal Laser Cutting Machine 1500W-20KW

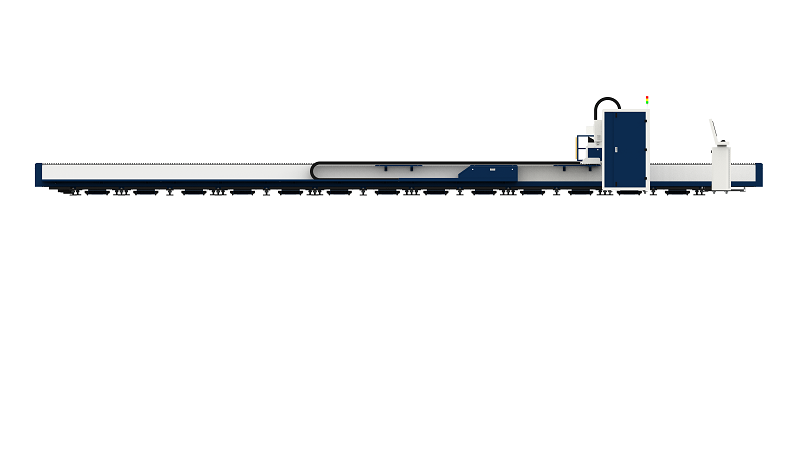

QH-12025FD Beveling Cutting Large-format Sheet Metal Laser Cutting Machine
Description​
The QH-12025FD is a heavy-duty large-format sheet metal laser cutting machine specialized in high-precision beveling cutting for oversized, heavy workpieces, tailored to industries like heavy steel structure manufacturing, shipbuilding, and large pressure vessel production. Its defining capability lies in merging a 12000×2500mm ultra-large processing area (supporting up to 12000kg maximum loading weight) with stable beveling performance—enabling one-step bevel processing for extra-large metal sheets (e.g., 12m-long hull plates or 2.5m-wide steel structure components) without splitting workpieces, thus eliminating bevel misalignment risks that often occur in segmented processing.
Quick Detail​

Beveling Core: ±0.03mm dual-axis accuracy guarantees consistent bevel quality over 12000×2500mm area; supports V/U/Y/single/double-sided bevels, no workpiece segmentation required.​

Key Specs: 12000×2500mm processing area (12000kg max loading), 1500W-20KW laser power (0.5-25mm bevel thickness), double rack & pinion servo transmission.​

Bevel Efficiency: 100m/min max speed + 1.0G acceleration cuts large workpiece bevel time by 40% vs. traditional segmented beveling.​

Application Fit: Heavy steel structures, shipbuilding; 380V/50Hz for industrial heavy-duty workshops.

Technical Specifications
Specification Value
Processing Area 12000 × 2500mm
Maximum Loading Weight 12000kg
Machine Weight 10000kg
Overall Dimensions 15200×4060×2050mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

  1. Oversized Workpiece Beveling Without Alignment Errors: The 12000×2500mm processing area allows one-time beveling of 12m-long or 2.5m-wide sheets, avoiding bevel misalignment from workpiece splicing (a major issue in traditional small-format machines). Paired with ±0.03mm axis precision, it reduces weld joint rework rates by 45%-60%—vital for large steel structures where bevel accuracy directly affects structural strength.​

    Stable Beveling Under High Load: With 12000kg maximum loading capacity and 10000kg sturdy frame, the machine securely clamps thick, heavy plates (e.g., 25mm carbon steel sheets) during beveling. The double rack & pinion servo transmission prevents workpiece shift under high pressure, ensuring bevel edges remain smooth and angle-consistent—solving the problem of unstable bevel quality in heavy workpiece processing.​

    Multi-Thickness Bevel Versatility: The 1500W-20KW laser power range covers all bevel needs: low power (1500W-5KW) for precise beveling of thin large sheets (0.5-5mm aluminum), high power (10KW-20KW) for deep-penetration beveling of thick plates (15-25mm carbon steel). This eliminates the need for multiple machines for different thicknesses, cutting equipment investment while ensuring uniform bevel standards.​

    Fast Large-Area Bevel Workflows: The 100m/min linkage speed and 1.0G acceleration enable rapid traversal across the 12000×2500mm area—for instance, finishing a full V-bevel on a 12m×2.5m steel plate in 15-20 minutes (vs. 30+ minutes with slower competitors). The integrated platform also simplifies loading/unloading of heavy workpieces, reducing batch bevel downtime by 30%-35%.
