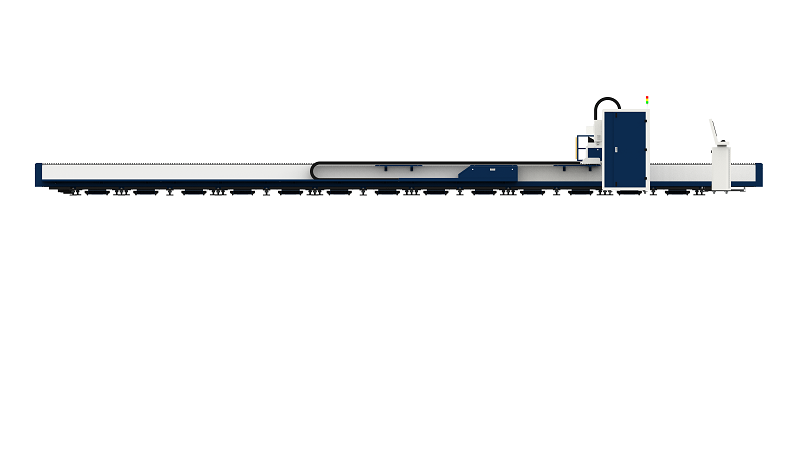

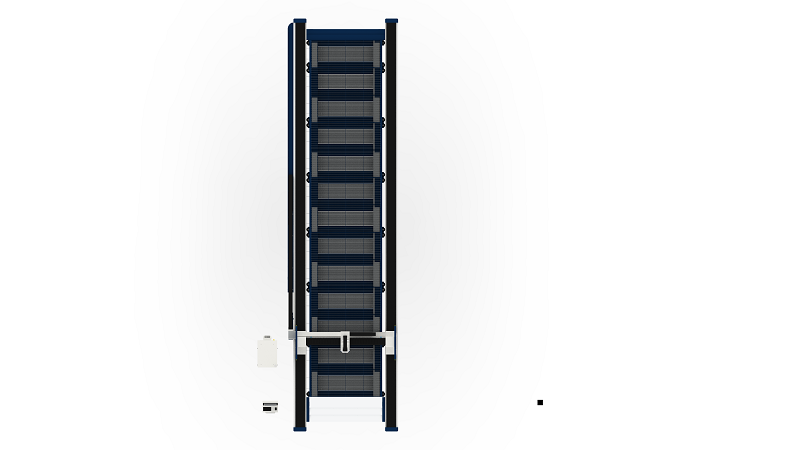

High Speed Large Format Sheet Metal Fiber Laser Cutting Machine
High Speed Large Format Sheet Metal Fiber Laser Cutting Machine
High Speed Large Format Sheet Metal Fiber Laser Cutting Machine
High Speed Large Format Sheet Metal Fiber Laser Cutting Machine
Specifications
Brand Name :
QIHAI
Model Number :
QH-12025FD
Certification :
CE,ISO,SGS,FDA,GS
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/month
Delivery Time :
50 days
Packaging Details :
wood
Cooling mode :
Water Cooling,protection system
Graphic format supported :
PLT,AI,DXF,DST,BMP
Control software :
Cypcut,PA controller and Lantek,CorelDRAW,Ruida,CHANXAN
Application :
Laser Cutting,fiber type,Stainless steel silver metal tube pipe CNC fiber laser cutting machine
Cnc or not :
Yes
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available
Type :
Fiber Lasr Cutting,Laser Machining,Water Cooling CO2 Laser Cutting Machines,laser cutting machine,Square pipe and plate sheet CNC rotary Fiber Laser Cutting Machine
Function :
Cutting Metal Materials,Engraving Cutting Nonmetal Materials,Cutting Metal plates and pipes
Color :
Blue and white,customizable
Description
High Speed Large Format Sheet Metal Fiber Laser Cutting Machine High Speed Large Format Sheet Metal Fiber Laser Cutting Machine
QH-12025FD High-speed Large-format Sheet Metal Laser Cutting Machine
Description​
The QH-12025FD Large-Format Fiber Laser Cutting Machine is a professional solution engineered for large-scale sheet metal processing, focusing on ultra-large processing area and heavy-load handling capabilities. It features an expansive 12000×2500mm processing area—ideal for cutting oversized workpieces like large steel structures, shipbuilding components, and heavy machinery parts—while supporting a maximum loading weight of 12000kg to accommodate thick, heavy metal sheets.
Quick Detail​

High-Speed Core: 100m/min maximum linkage speed + 1.0G acceleration; double rack & pinion servo transmission prevents motion distortion at full speed, retaining ±0.03mm dual-axis accuracy for large-format cuts.​

Key Specs: 12000×2500mm ultra-large processing area, 12000kg max loading, 1500W-20KW power; designed for oversized heavy workpieces.​

Fit: Large steel structures/shipbuilding; high-speed cuts slash processing time for 12m-long workpieces by 40%+.

Technical Specifications
Specification Value
Processing Area 12000 × 2500mm
Maximum Loading Weight 12000kg
Machine Weight 10000kg
Overall Dimensions 15200×4060×2050mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

High Speed Cuts Large-Format Processing Time Dramatically: With 100m/min speed and 1.0G acceleration, the machine processes a full 12000×2500mm 10mm carbon steel sheet in 30% less time than standard large-format cutters. The double rack & pinion servo transmission ensures consistent motion across the entire 12m X-axis—avoiding speed drops at the workpiece edges—while ±0.03mm accuracy means no post-cut trimming, further shortening project cycles for large structures.​

High Speed Synergizes with Ultra-Large Area for Seamless Production: Unlike machines that require splicing small sheets to form large parts (adding 20%-30% processing time), the QH-12025F’s 12000×2500mm area handles full-size workpieces in one pass. Its 100m/min speed turns this large area into a productivity asset: for example, cutting 5 consecutive 2.4m-wide steel plates (forming a 12m structure) takes 25% less time than splicing smaller cuts, reducing labor and material waste from seam processing.​

High Speed Maintained Even with Heavy Loads: Most large-format machines slow down when handling maximum-weight (12000kg) workpieces, but the QH-12025F’s robust transmission and 10000kg machine weight stabilize operation—keeping speed at 100m/min even with thick, heavy sheets. This eliminates bottlenecks in high-volume heavy-industry production, where frequent loading of large workpieces paired with slow cutting would otherwise reduce throughput by 15%-20%.
