Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine
Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine
Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine
Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine
Specifications
Brand Name :
QIHAI
Model Number :
QH-12025FD
Certification :
CE,ISO,SGS,FDA,GS
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 Set/month
Delivery Time :
50 days
Packaging Details :
wood
Cooling mode :
Water Cooling,protection system
Graphic format supported :
PLT,AI,DXF,DST,BMP
Cnc or not :
Yes
Warranty :
1 Year
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available
Type :
Fiber Lasr Cutting,Laser Machining,Water Cooling CO2 Laser Cutting Machines,laser cutting machine,Square pipe and plate sheet CNC rotary Fiber Laser Cutting Machine
Function :
Cutting Metal Materials,Engraving Cutting Nonmetal Materials,Cutting Metal plates and pipes
Color :
Blue and white,customizable
Description
Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine Gantry Type Metal Fiber Laser Cutting Machine Large Format Sheet Metal Laser Cutting Machine
QH-12025FD High-speed Large-format Sheet Metal Laser Cutting Machine
Description​

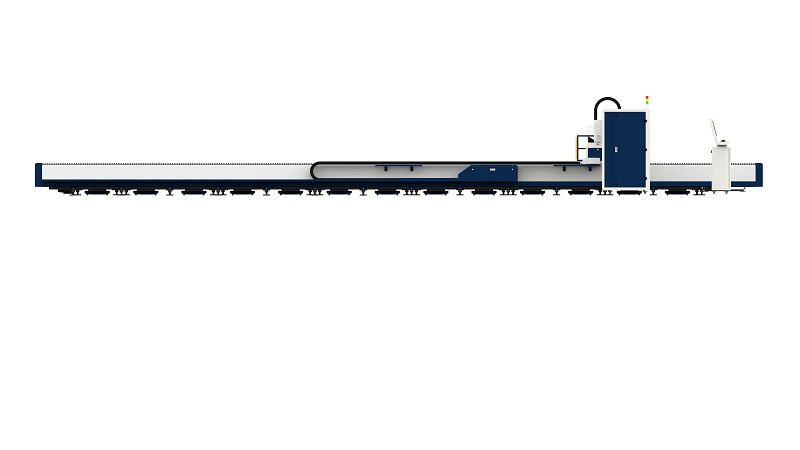

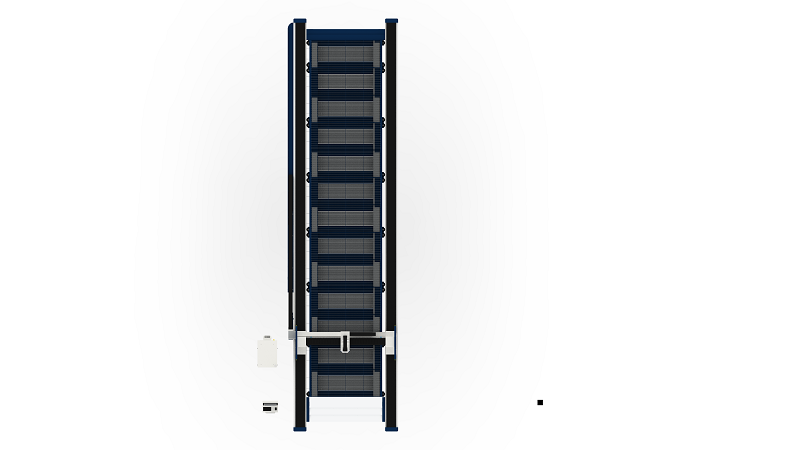

The QH-12025FD is a gantry-type metal fiber laser cutting machine specifically engineered for large-format, heavy-duty sheet metal processing, combining the structural stability of gantry design with high-efficiency fiber laser technology. Its signature gantry frame serves as the core support—enabling it to handle an ultra-large 12000×2500mm processing area and a maximum loading weight of 12000kg, eliminating workpiece splicing for oversized projects (e.g., large steel beams, ship hull components).
Quick Detail​

Gantry-type Core: Rigid gantry frame + double rack & pinion servo transmission; ensures stable motion across 12m X-axis, retaining ±0.03mm accuracy even under 12000kg max load.​

Key Specs: 12000×2500mm large-format area, 12000kg loading capacity, 1500W-20KW power, 100m/min linkage speed—optimized for oversized heavy workpieces.​

Fit: Gantry stability suits large steel structures/shipbuilding; avoids deformation in long-stroke cutting, slashing splicing time by 100%.

Technical Specifications
Specification Value
Processing Area 12000 × 2500mm
Maximum Loading Weight 12000kg
Machine Weight 10000kg
Overall Dimensions 15200×4060×2050mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

Gantry Structure Guarantees Large-format Precision: Unlike cantilever-type machines prone to X-axis deflection in long-stroke cutting, the QH-12025F’s gantry frame uses symmetric dual-drive design, synchronizing motion across the 12m span. This eliminates "end sag" (common in non-gantry large-format cutters) and maintains ±0.03mm positioning accuracy—critical for seamless assembly of oversized parts (e.g., 12m steel trusses) where even 0.1mm deviation causes fit-up issues.​

Gantry Rigidity Supports Heavy-load Durability: The gantry frame’s reinforced steel construction distributes 12000kg workpiece weight evenly, preventing structural deformation that would compromise cutting quality. Non-gantry machines often require reducing load (to 5000kg max) or slowing speed (to 60m/min) for heavy sheets, but the QH-12025F’s gantry design retains full 100m/min speed and accuracy under maximum load, boosting heavy-part throughput by 35%+.​

Gantry-transmission Synergy Enhances High-speed Stability: The gantry frame’s rigidity complements the double rack & pinion servo transmission, damping vibration during 100m/min high-speed cutting. This synergy avoids "chatter marks" on cut edges— a common issue when non-gantry machines accelerate/decelerate—and ensures consistent edge quality across the entire 12000×2500mm area, reducing post-processing time by 20%.
