1500W-20KW Laser Sheet Cutting Machine 100m/Min Water Cooling Automatic Material Lifting
1500W-20KW Laser Sheet Cutting Machine 100m/Min Water Cooling Automatic Material Lifting
Specifications
Brand Name :
QIHAI
Model Number :
QH-6020L
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic, container
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Application :
Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Warranty :
1 Year
Product name :
Fiber Laser Metal Cutting Machine,BODOR F3015,GWEIKE LF3015C metal sheet laser cutting machine
After-sales service provided :
Engineers available to service machinery overseas
Cooling system :
water cooling
Description
1500W-20KW Laser Sheet Cutting Machine 100m/Min Water Cooling Automatic Material Lifting 1500W-20KW Laser Sheet Cutting Machine 100m/Min Water Cooling Automatic Material Lifting

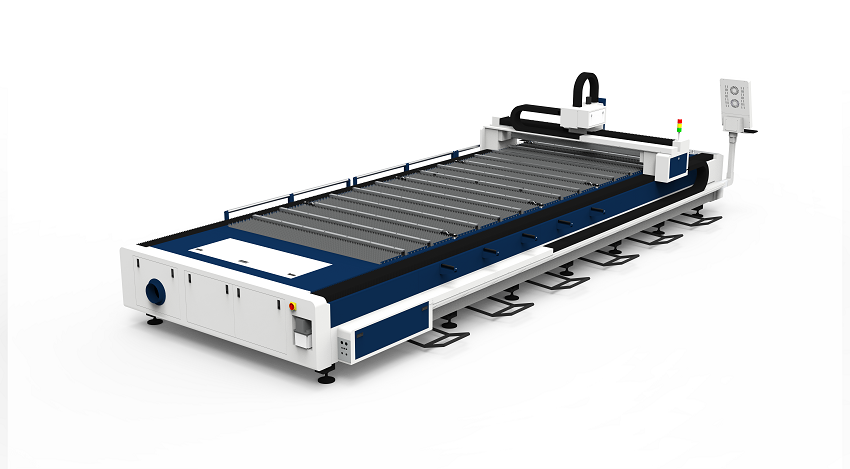

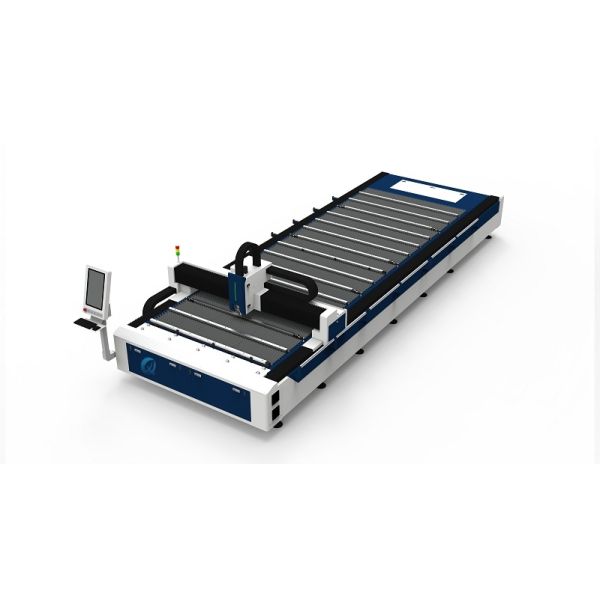

QH-6020L High Efficient Loading Automatic Material-Lifting Support Laser Cutting Machine
Description
The QH-6020L is a high-performance solution tailored for large-format sheet metal processing, integrating "high efficient loading" and "automatic material-lifting support" to address mass production needs. It boasts a spacious 6000×2000mm processing area and 1000kg maximum loading weight, capable of handling large workpieces like construction steel plates and automotive frames.
Quick details

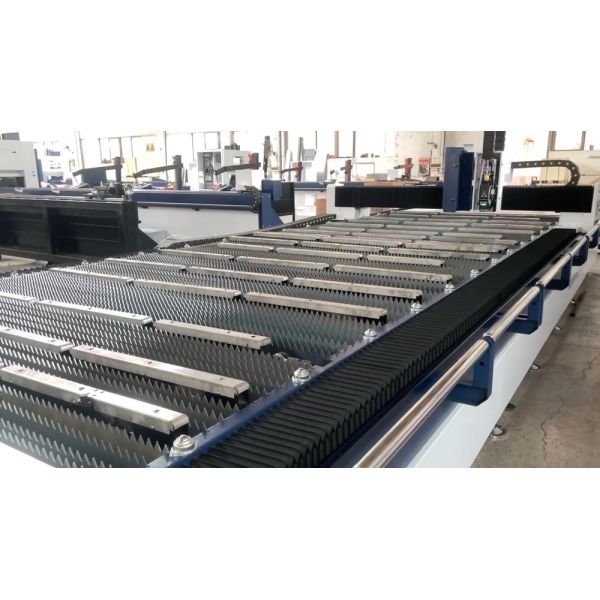

Core Features: High efficient loading (cuts feeding time by 40%-60% vs manual) + automatic material-lifting support (prevents large workpiece sag/deformation); 100m/min max speed & ±0.03mm precision via servo-driven double rack & pinion transmission.​

Key Specs: 6000×2000mm large processing area, 1000kg max loading; 1500W-20KW laser power for diverse material thicknesses.​

Fit: Ideal for large workpieces (construction steel, automotive frames); 380V/50Hz universal power, no extra modification needed.

Technical Specifications
Processing Area 6000 * 2000mm
Maximum Loading Weight 1000kg
Machine Weight 3600kg
Overall Dimensions 8000×2760×1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage​

Efficient Loading & Deformation Prevention Synergy: The high efficient loading system slashes material feeding time significantly, while the automatic material-lifting support eliminates sagging/deformation of large 6m-long workpieces—avoiding secondary straightening and raising yield by 30%+ compared to machines without lifting support.​

Large-Format Cutting with Stable Precision: Its 6000×2000mm area covers full-size large workpieces, and the ±0.03mm positioning/repositioning accuracy ensures consistent cuts even for complex patterns. The double rack & pinion servo transmission maintains stability at 100m/min speed, preventing precision loss in high-speed large-size processing.​

Industrial-Grade Durability for Heavy-Duty Use: The 3600kg machine frame provides a stable base for long-term operation, while the 1000kg maximum loading weight supports thick, heavy workpieces (e.g., 20mm-thick steel plates). The servo-driven transmission has low wear, extending service life and reducing maintenance costs by 25% annually.​

Flexible Power Adaptation: The 1500W-20KW laser power range adapts to thin sheets (0.5mm) to thick plates (25mm), meeting diverse material needs. The 380V/50Hz power configuration matches most factory setups, lowering deployment barriers for manufacturers across industries.
