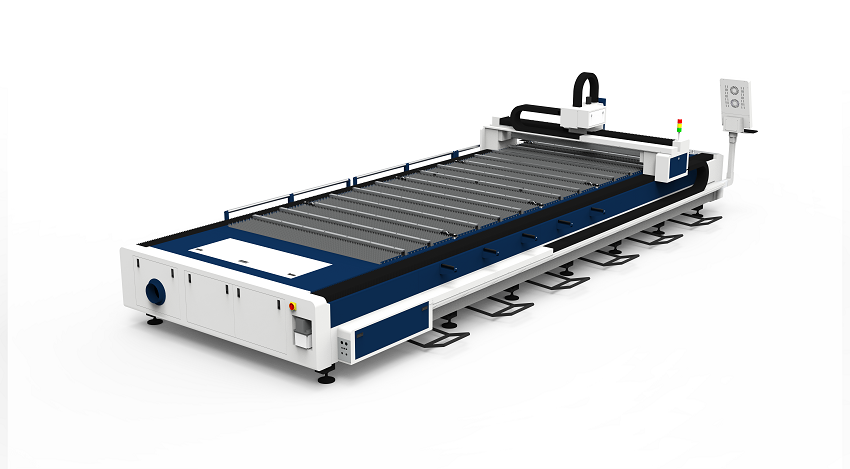

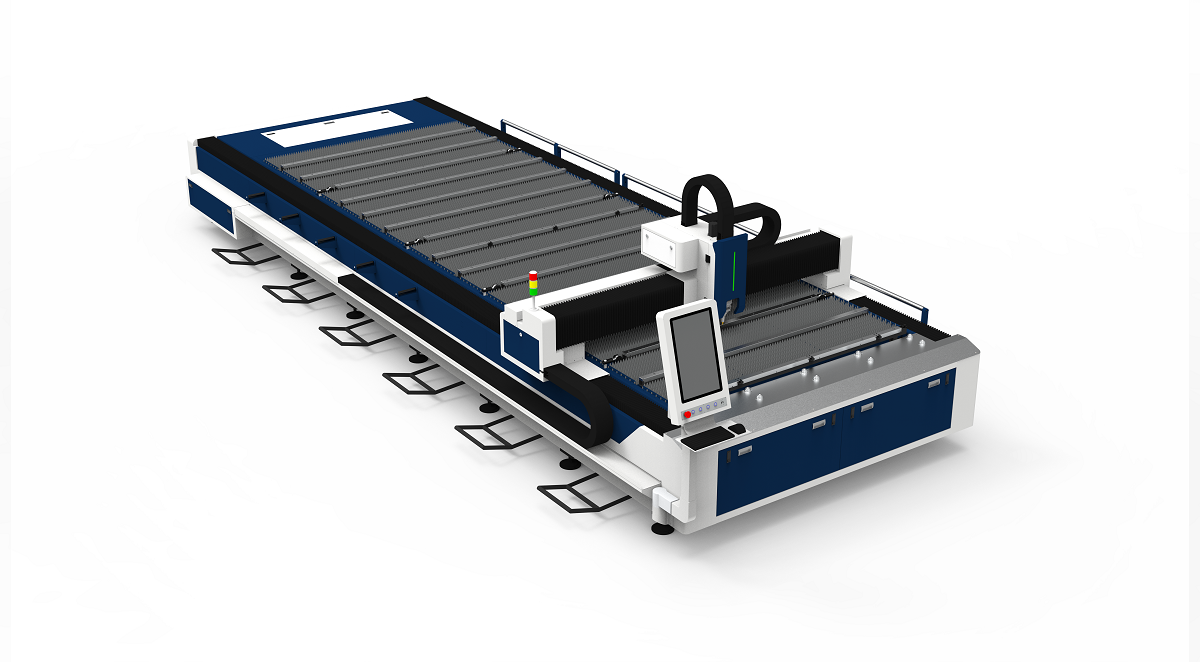

Beveling Cutting Automatic Material Lifting Sheet Metal Laser Cutting Machine
Beveling Cutting Automatic Material Lifting Sheet Metal Laser Cutting Machine
Specifications
Brand Name :
QIHAI
Model Number :
QH-6020L
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
50 days
Packaging Details :
wood, plastic, container
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Application :
Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Warranty :
1 Year
Cutting area :
6000mm*2000mm
After-sales service provided :
Engineers available to service machinery overseas
Function :
Cutting Metal Materials,Wifi wireless control,Cutting Metal sheet tube
Cooling system :
water cooling
Description
Beveling Cutting Automatic Material Lifting Sheet Metal Laser Cutting Machine Beveling Cutting Automatic Material Lifting Sheet Metal Laser Cutting Machine

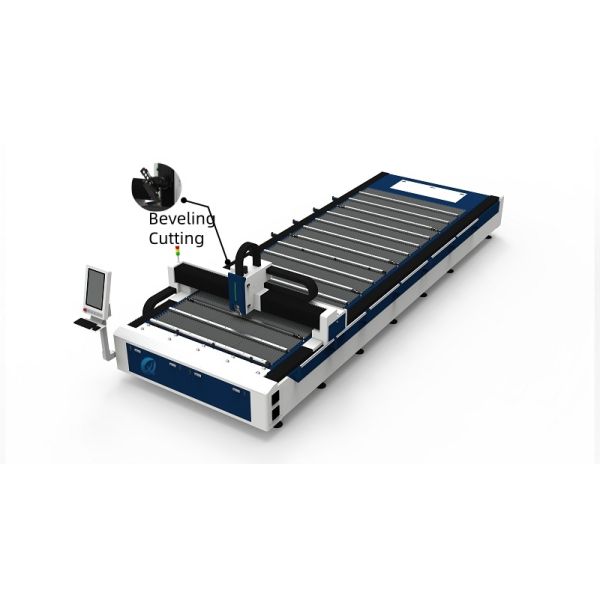

QH-6020L Beveling Cutting Automatic Material-Lifting Support Laser Cutting Machine
Description
The QH-6020L is a high-performance laser cutting machine integrating precision beveling cutting and automatic material-lifting support, tailored for large-scale sheet metal welding prefabrication in industries like steel structures, pressure vessels, and heavy machinery. Its core strength lies in advanced beveling capabilities: supporting continuous bevel processing for metals (carbon steel, stainless steel, aluminum, titanium alloy) with adjustable angles (0°-45°, ±0.5° accuracy) and versatile profiles (V-type, U-type, Y-type, X-type), eliminating secondary grinding/milling and streamlining welding workflows.
Quick details

Beveling Core: 0°-45° adjustable angles (±0.5° accuracy), supports V/U/Y/X-type bevels; ±0.03mm dual-axis accuracy ensures uniform bevel quality.​

Auto Material-Lifting: Handles up to 1000kg workpieces, protects surfaces, stabilizes positioning for large-sheet beveling (6000×2000mm area).​

Key Specs: 1500W-20KW laser power (0.5-30mm thickness), 100m/min max speed, double rack & pinion servo transmission.​

Fit: Steel structures, pressure vessels — ideal for large-scale welding prefabrication.

Technical Specifications
Processing Area 6000 * 2000mm
Maximum Loading Weight 1000kg
Machine Weight 3600kg
Overall Dimensions 8000×2760×1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage​

High-Precision Beveling Reduces Welding Prep Time: The ±0.03mm X/Y-axis accuracy (paired with double rack & pinion servo drive) ensures consistent bevel angles (0°-45°, ±0.5° error) across the entire 6000×2000mm processing area. This eliminates the need for post-bevel grinding (a common step with lower-precision machines), cutting welding prefabrication time by 40%-60% and ensuring tight weld joint fits.​

Auto Material-Lifting Optimizes Beveling for Large Sheets: For heavy workpieces (up to 1000kg) that are impractical to manually reposition, the automatic lifting system adjusts material height without surface damage — critical for multi-angle beveling (e.g., double-sided V-bevels on 6m-long steel plates). It eliminates labor risks and ensures stable material placement during high-speed beveling (100m/min), avoiding angle deviations caused by manual movement.​

Broad Power Range Adapts to Diverse Beveling Needs: The 1500W-20KW laser power covers 0.5-30mm metal thicknesses — from thin aluminum (0.5-2mm) requiring delicate Y-bevels to thick carbon steel (20-30mm) needing deep X-bevels. The adjustable power ensures optimal energy input for each material, preventing over-melting (which ruins bevel edges) or under-cutting (which requires rework).​

Sturdy Build Guarantees Continuous Beveling Reliability: The 3600kg heavy-duty frame dampens vibration during high-acceleration (1.0G) beveling, ensuring consistent precision even during 8+ hours of continuous operation. This stability is vital for large-batch projects (e.g., pressure vessel components) where bevel uniformity across hundreds of workpieces directly impacts welding quality and safety.
