380V Automatic Coil Laser Cutting Machine 100m/min Maximum Linkage Speed
380V Automatic Coil Laser Cutting Machine 100m/min Maximum Linkage Speed
Specifications
Brand Name :
QIHAI
Model Number :
QH-3015R
Certification :
ISO, CE
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
40 days
Packaging Details :
wood
Control software :
Cypcut,Perfect Laser Professional Laser Cutting Software,Ruida,Lasercut,CHANXAN
Condition :
New
Graphic format supported :
DXF,AI,BMP,PLT,DWG
Cnc or not :
Yes
Application :
Laser Cutting,Suitable for metal sheets cutting,cheap laser metal cutting machine,metal cutting
Cutting thickness :
Materials,0-30mm,Depends,7-8,1-12 m (carbon steel)
Cooling mode :
Water Cooling
Warranty :
1 Year
Product name :
Fiber Laser Metal Cutting Machine,BODOR F3015,GWEIKE LF3015C metal sheet laser cutting machine
After-sales service provided :
Engineers available to service machinery overseas
Working area :
1500mmX3000mm
Description
380V Automatic Coil Laser Cutting Machine 100m/min Maximum Linkage Speed 380V Automatic Coil Laser Cutting Machine 100m/min Maximum Linkage Speed

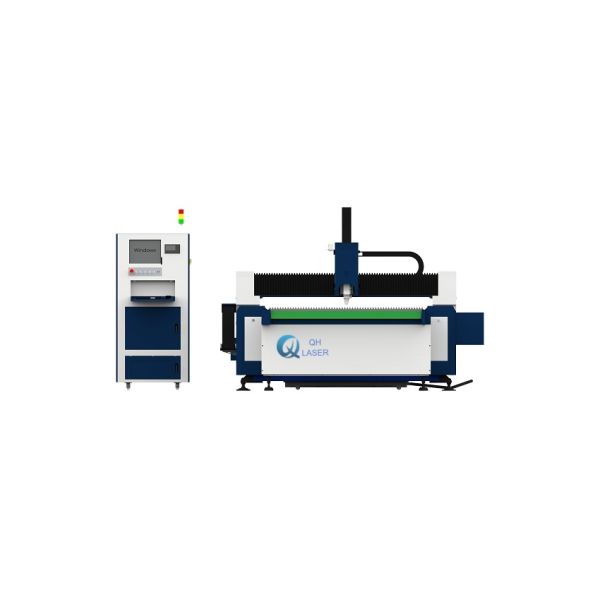

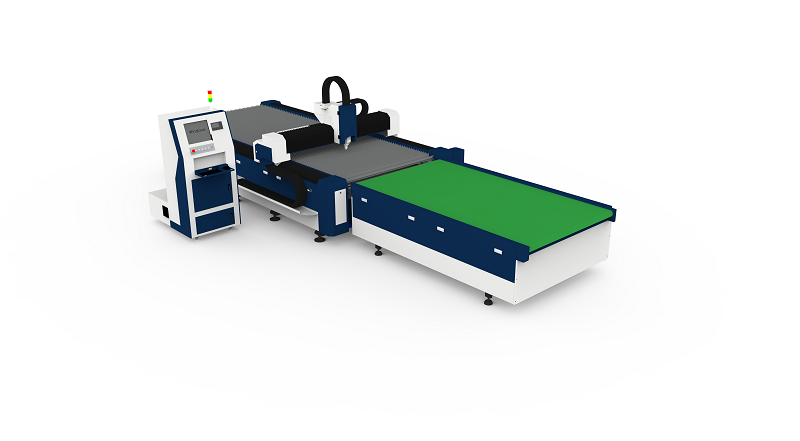

QH-3015R Automactic Coil Laser Cutting Machine
Description
The QH-3015R Automactic Coil Laser Cutting Machine is an industrial-grade, high-precision solution tailored for continuous coil metal processing. It covers a 3000×1500mm processing area, supports a maximum loading weight of 500kg, and operates on 380V/50Hz power—compatible with most factory setups. Equipped with a 1500W-20KW adjustable laser power range, it handles carbon steel, stainless steel, and aluminum seamlessly. Key performance highlights include ±0.03mm X/Y-axis positioning/repositioning accuracy, 100m/min maximum linkage speed, and 1.0G acceleration, all supported by a double rack & pinion servo transmission. Weighing 1600kg with overall dimensions of 7700×2765×1980mm, it balances durability and space efficiency, ideal for automotive parts, hardware, and HVAC mass production.
Quick Detail

Precision Core: ±0.03mm X/Y-axis positioning/repositioning accuracy (backed by double rack & pinion servo drive) ensures burr-free, consistent coil cuts.​

High Efficiency: 100m/min maximum linkage speed + 1.0G acceleration shortens processing cycles; 1500W-20KW laser power adapts to 0.5-25mm metal thicknesses.​

Practical Design: 3000×1500mm processing area + 500kg max loading weight fits medium-to-large coil sizes; 7700×2765×1980mm dimensions suit standard factory layouts.​

Reliable Operation: 1600kg sturdy build for long-term continuous use; 380V/50Hz power matches industrial supply standards.

Technical Specifications
Specification Value
Processing Area 3000 × 1500mm
Maximum Loading Weight 500kg
Machine Weight 1600kg
Overall Dimensions 7700×2765×1980mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage​

Superior Precision Guarantee: The combination of ±0.03mm dual-axis accuracy and double rack & pinion servo transmission eliminates cutting deviations, even during high-speed coil processing. This avoids secondary trimming work, reduces material waste by 15%-20%, and ensures uniform part quality for batch production.​

High-Capacity Efficiency: With 100m/min linkage speed and 1.0G acceleration, the machine processes coils far faster than traditional cutting equipment. Its 1500W-20KW laser power range further allows seamless switching between thin (0.5mm) and thick (25mm) metals, eliminating the need for multiple machines and boosting overall production efficiency by 30%-40%.​

Strong Industrial Adaptability: The 500kg maximum loading weight handles most common coil sizes, while the 7700×2765×1980mm compact footprint fits easily into existing factory lines—reducing installation and layout costs.
