1500W-20000W Sheet And Tube Laser Cutting Machine Sheet Metal Laser Cutting Machine
1500W-20000W Sheet And Tube Laser Cutting Machine Sheet Metal Laser Cutting Machine
Specifications
MOQ :
1 set
Delivery Time :
45-60 work days
Voltage :
380V
Working Environment :
0-40℃, Humidity ≤80%
Packaging Details :
wooden box
Price :
Negotiable
Laser Power :
1500W-20000W
X/Y-axis Positioning Accuracy :
0.03mm
Model Number :
QH-3015FT
Laser Generator Classification :
Fiber Laser Generator
Supply Ability :
90set/mon
Product :
Sheet Metal Laser Cutting Machine
Payment Terms :
T/T
Processing Area :
3000 * 1500mm/6m Max. Length 120mm Diameter of Chuck
Frequency :
50Hz
Brand Name :
QIHAI
Transmission :
Double rack&pinion transmission and servo drive
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
Graphic Format :
PLT, DXF
Description
1500W-20000W Sheet And Tube Laser Cutting Machine Sheet Metal Laser Cutting Machine 1500W-20000W Sheet And Tube Laser Cutting Machine Sheet Metal Laser Cutting Machine

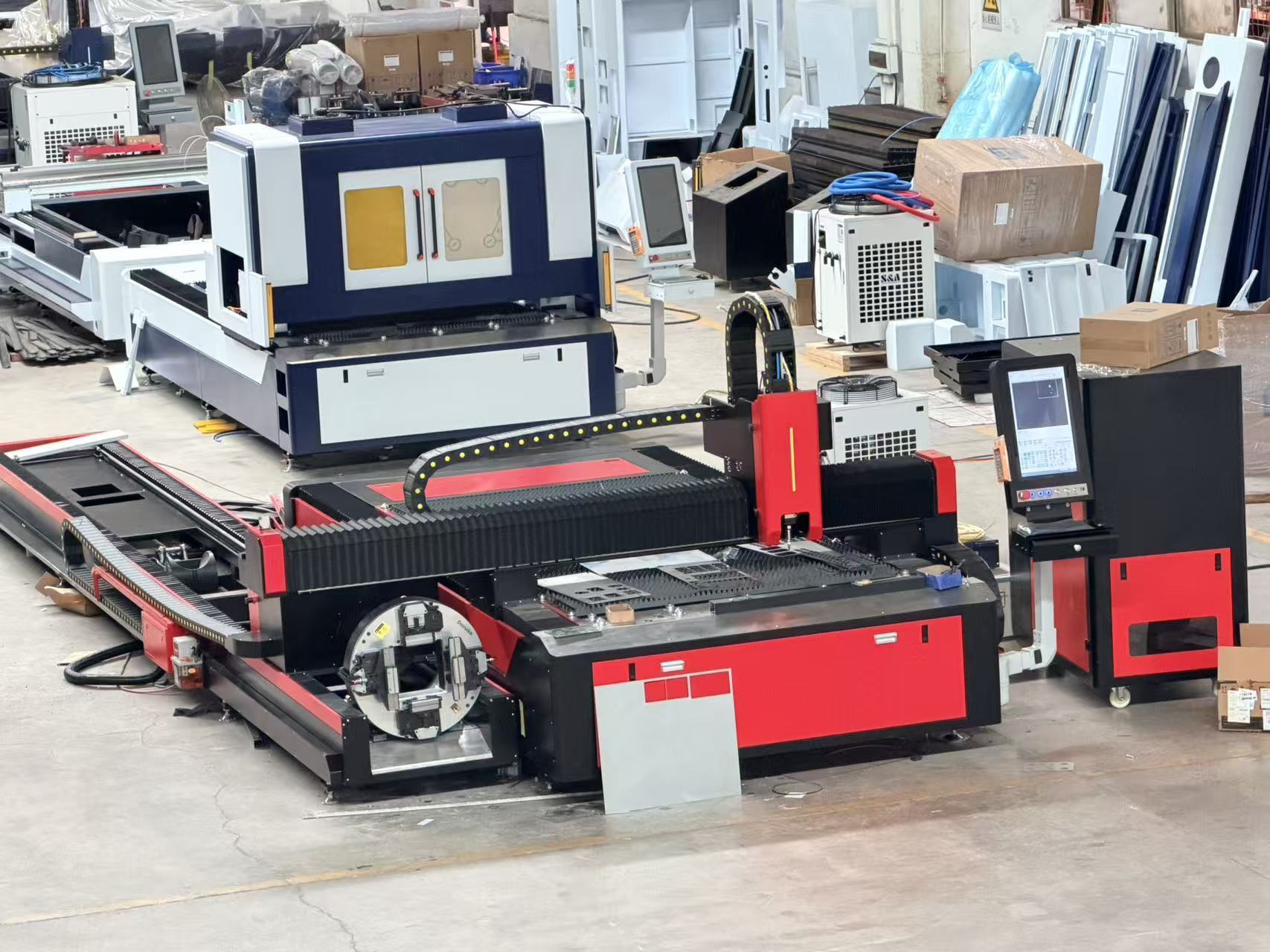

QH - 3015FT Sheet and Tube Laser Cutting Machine


Description
The QH-3015FT/6012 Sheet & Tube Laser Cutting Machine is a high-precision fiber laser cutting system designed for both sheet metal and tube processing. With a 3000 × 1500 mm sheet processing area and tube cutting capability up to 6 m in length, it provides flexible and efficient processing for a wide range of metal applications. The machine supports bevel cutting, enabling the cutting head to produce angled edges and bevels for more demanding fabrication requirements. With X/Y-axis positioning and repositioning accuracy of ±0.03 mm, it delivers precise and consistent cutting performance.


Quick Detail
* Laser Power: 1.5–20 kW
* Sheet Processing Area: 3000 × 1500 mm
* Maximum Tube Length: 6 m
* Chuck Diameter: 120 mm
* Maximum Loading Weight: 800 kg
* X/Y Positioning Accuracy: ±0.03 mm
* X/Y Repositioning Accuracy: ±0.03 mm
* Maximum Linkage Speed: 100 m/min
* Maximum Linkage Acceleration: 1.0 G
* Transmission: Double rack & pinion transmission with servo drive
* Bevel Cutting: Available
* Machine Weight: 2500 kg
* Overall Dimensions: 8450 × 3250 × 1900 mm
* Power Supply: 380 V / 50 Hz
Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 2500kg
Overall Dimensions 8450×3250×1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.0G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz


Advantage

The QH-3015FT/6012 combines sheet and tube laser cutting in one machine, reducing the need for separate equipment while maintaining high cutting precision and stable operation. The double rack & pinion transmission with servo drive provides responsive and accurate movement, while the ±0.03 mm positioning and repositioning accuracy supports consistent cutting quality. With speeds up to 100 m/min and acceleration up to 1.0 G, the machine achieves high processing efficiency. In addition, the bevel cutting function allows the cutting head to process angled edges, expanding its capability for structural parts, fabrication, and applications requiring high-precision bevel cuts.
