High Speed Sheet And Tube Laser Cutting Machine 3000x1500mm Processing Area
High Speed Sheet And Tube Laser Cutting Machine 3000x1500mm Processing Area
Specifications
Brand Name :
QIHAI
Model Number :
QH-3015F
Certification :
CE, ISO
Place of Origin :
Foshan, Guangdong, China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
90set/mon
Delivery Time :
45-60 work days
Packaging Details :
wooden box
Product :
Sheet Metal Laser Cutting Machine
Processing Area :
3000 * 1500mm
Laser Power :
1500W-20000W
X/Y-axis Positioning Accuracy :
0.03mm
Frequency :
50Hz
Voltage :
380V
Laser Generator Classification :
Fiber Laser Generator
Transmission :
Double rack&pinion transmission and servo drive
Working Environment :
0-40℃, Humidity ≤80%
Graphic Format :
PLT, DXF
Description

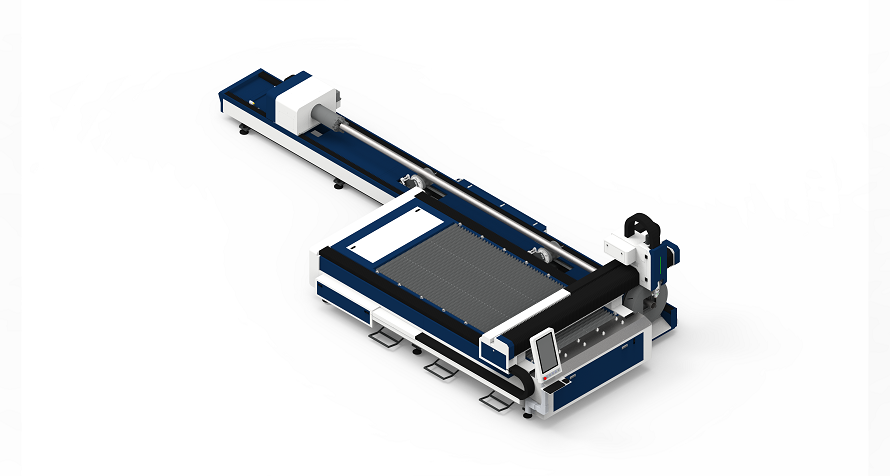

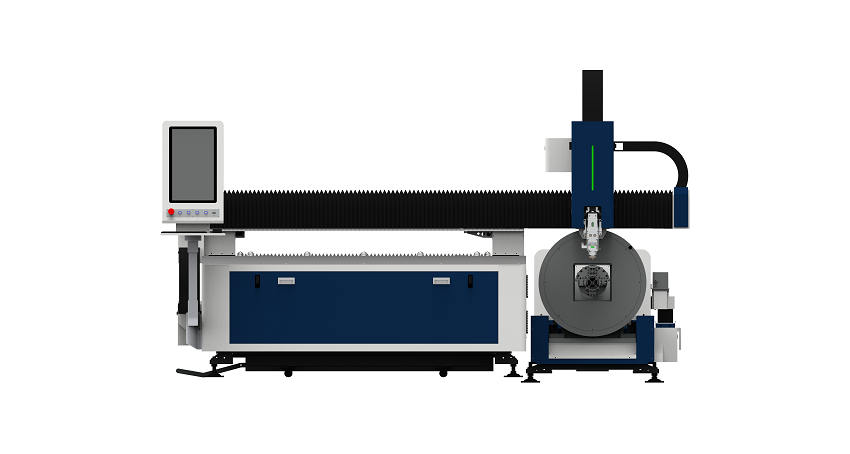

High Speed Sheet And Tube Laser Cutting Machine 3000x1500mm Processing Area High Speed Sheet And Tube Laser Cutting Machine 3000x1500mm Processing Area
QH - 3015FT High-speed Sheet and Tube Laser Cutting Machine
Description
The QH-3015FT is a high-performance integrated sheet and tube laser cutting machine, engineered to optimize mixed-production efficiency with its standout 1.5G maximum linkage acceleration and dual-function processing capability. It offers a 3000×1500mm processing area for flat sheets (supporting up to 800kg maximum loading weight) and adapts to round, square, and rectangular tubes—eliminating the need for separate single-function equipment. Equipped with a 1500W-20KW adjustable laser power range, it delivers precise cuts on carbon steel, stainless steel, aluminum, and copper, backed by ±0.03mm X/Y-axis positioning and repositioning accuracy. Its servo-driven double rack & pinion transmission ensures stable motion even at high acceleration, complementing a 100m/min maximum linkage speed for fast batch processing. Weighing 2500kg with overall dimensions of 8450×3250×1900mm, it operates on a standard 380V/50Hz power supply, making it ideal for semi-automated or large-scale workshops in automotive parts, steel structures, and hardware manufacturing.
Quick Detail

Core High-Acceleration Feature: 1.5G maximum linkage acceleration enables rapid start-stop responses, cutting non-cutting time (e.g., path transition, workpiece positioning) by 35%-45% vs. lower-acceleration machines.​

Key Specs: 3000×1500mm sheet area (800kg max load) + tube processing; ±0.03mm dual-axis accuracy; 1500W-20KW power; 100m/min max speed; servo-driven double rack & pinion transmission.​

Fit: Mixed sheet-tube production (automotive/steel structure); high-efficiency needs for batch or complex-path processing.

Technical Specifications
Processing Area 3000 * 1500mm
Maximum Loading Weight 800kg
Machine Weight 2500kg
Overall Dimensions 8450×3250×1900mm
Laser Power Range 1500W - 20KW
X/Y-axis Positioning Accuracy ±0.03mm
X/Y-axis Repositioning Accuracy ±0.03mm
Maximum Linkage Acceleration 1.5G
Maximum Linkage Speed 100m/min
Transmission System Double rack & pinion transmission with servo drive
Voltage Requirement 380V
Frequency 50Hz

Advantage

1.5G Acceleration Drives Unmatched Throughput: The machine’s 1.5G maximum linkage acceleration drastically reduces time spent on path transitions, cornering, and workpiece repositioning—critical for batch processing of small-to-medium sheet parts or multi-segment tube cutting. Compared to 1.0G acceleration models, it shortens overall processing cycles by 25%-30%, enabling more parts produced per shift without compromising precision.​

High Acceleration + Stable Transmission = Consistent Precision: Unlike low-quality machines where high acceleration causes vibration and accuracy loss, the QH-3015FT’s servo-driven double rack & pinion transmission works with 1.5G acceleration to maintain ±0.03mm positioning/repositioning accuracy. This ensures uniform cut quality (e.g., smooth tube notches, precise sheet holes) even when switching between fast-moving paths, eliminating scrap from acceleration-induced deviations.​

Adapts to Complex Sheet-Tube Mixed Processing: For projects requiring both sheet components and tube frames (e.g., automotive brackets, steel structure assemblies), the 1.5G acceleration allows seamless, fast switching between sheet cutting (e.g., 3000×1500mm large sheets) and tube processing (e.g., multi-angle tube cuts). It avoids the “waiting lag” of slower machines when adjusting to different material types or cutting paths, keeping production workflows continuous and efficient.​

​
